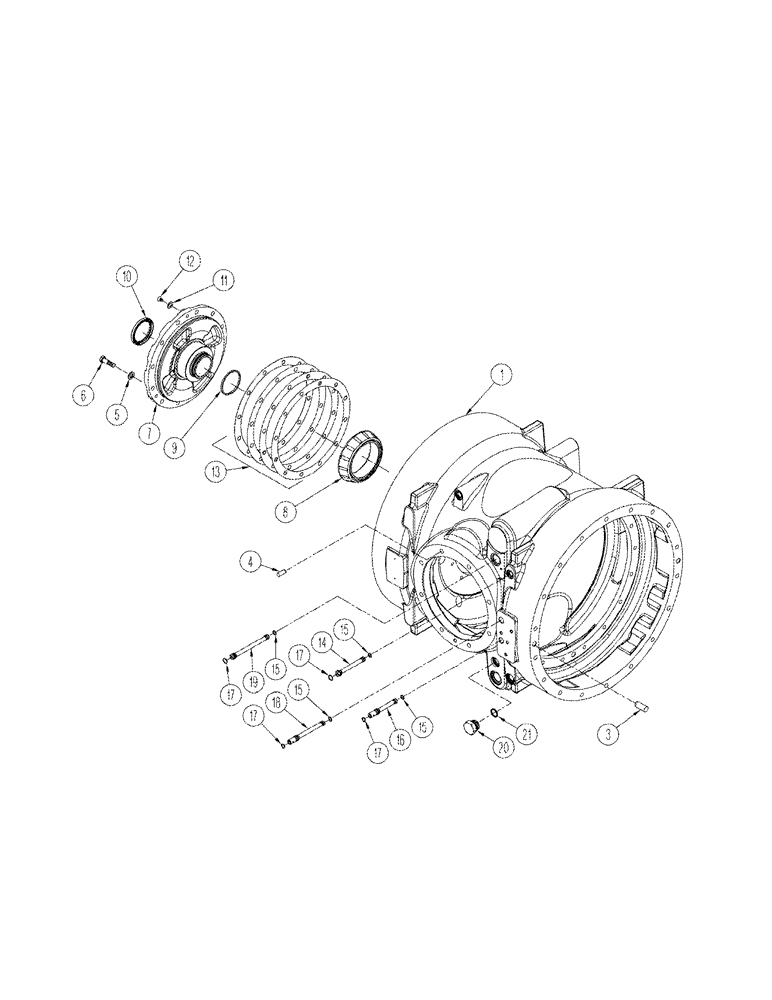

Запчасти Case IH STX375 (06-55) - AXLE ASSY CENTER AND LEFT-HAND CARRIER (QUADTRAC TRACTOR) (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
87423305
FRONT AXLE
QT W/Diff
1шт.
87423305R
REMAN-AXLE
QT Front Axle W/ Diff, REMANUFACTURED
1шт.
87423305C
CORE-FRT AXLE w/DL
CORE-PRESSURE SWITCH QT Front Axle W/Diff - Return Number
1шт.
87423306
REAR AXLE
QT W/Diff
1шт.
87423306R
REMAN-REAR AXLE 4WD
REMAN-REAR AXLE w/DIFF LOCK QT Rear Axle W/ Diff
1шт.
87423306C
CORE-REAR AXLE W/DI
QT Rear Axle W/Diff Return Number
1шт.
344941A2
AXLE HOUSING
center, front axle, Includes: Ref. 1, 3, 4
1шт.
333403A2
AXLE HOUSING
center, rear axle, Includes: Ref. 2 - 4, not illustrated
1шт.
1
NSS
NOT SOLD SEPARAT
HOUSING front axle
1шт.
2
NSS
NOT SOLD SEPARAT
HOUSING rear axle
1шт.
3
837-16040
DOWEL,M16 x 40
6шт.
4
837-12025
DOWEL,M12 x 25
1шт.
5
896-12012
WASHER,13.5mm ID x 24mm OD x 3mm Thk
12шт.
6
628-12035
BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd
12шт.
7
369765A1
COVER
left-hand
1шт.
8
253932A1
ROLLER BEARING,119.99mm ID x 37.98mm W
1шт.
11
95-81100
WASHER,33/64" x 7/8" x .049"
3шт.
12
843-1812
SCREW,Flat, M8 x 12mm, Class 4.8
3шт.
13
255121A1
SHIM,290mm ID x 345mm OD x 0.076mm Thk
1шт.
13
255122A1
SHIM,290mm ID x 345mm OD x 0.102mm Thk
1шт.
13
255123A1
SHIM,290mm ID x 345mm OD x 0.13mm Thk
1шт.
13
255124A1
SHIM,290mm ID x 345mm OD x 0.5mm Thk
1шт.
14
284188A1
TUBE,7.47 mm ID, 11.85 mm OD, 120 mm Length
jumper, service brake
1шт.
15
238-6013
O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro
7/16 ID x 1/16
4шт.
16
370783A2
TUBE,7.5 mm ID, 11.85 mm OD, 159 mm Length
jumper, lubrication
1шт.
17
238-6015
O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro
4шт.
18
329808A1
TUBE,7.5 mm ID, 11.85 - 15 mm OD, 117 mm Length
jumper, lubrication
1шт.
20
220069A1
PLUG,M33 x 2, ORB
Incl. Ref. 21
1шт.
21
637-64296
O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro
1шт.
Выбрано товаров: 32
