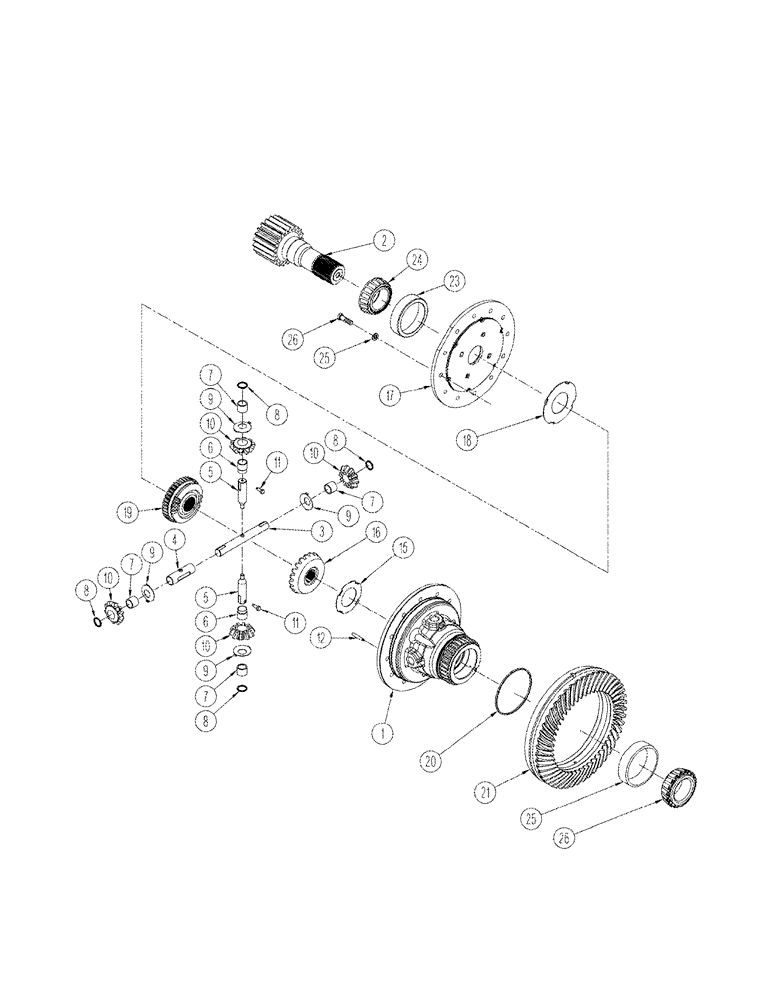

Запчасти Case IH STX375 (06-49) - AXLE ASSY DIFFERENTIAL STX 375 Without Differential Locks (06) - POWER TRAIN

87365639

FRONT AXLE

STD W/O Diff

1шт.

87365639R

REMAN-FRT AXLE w/DL

REMAN-FRONT AXLE, w/o DIFF LOCK STX375 BSN JEE0099501, N.A. Only

1шт.

87365639C

CORE-FRT AXLE w/o DL

Return Number, For N.A. Only

1шт.

87365643

REAR AXLE

STD W/O Diff

1шт.

87365643R

REMAN-REAR AXLE

STX375 BSN JEE0099501, N.A. Only

1шт.

87365643C

CORE-REAR AXLE

Return Number, For N.A. Only

1шт.

1

388654A1

HOUSING

1шт.

2

310693A1

SHAFT

sun gear, short

1шт.

3

92907C1

SHAFT

pinion, long

1шт.

4

1289349C1

SPACER

1шт.

5

92906C1

SHORT SHAFT

pinion

2шт.

6

1289350C1

SPACER

2шт.

7

1270697C1

NEEDLE BEARING

28 per gear

112шт.

8

1289348C1

RING

4шт.

9

92718C2

THRUST WASHER,32.7mm ID x 70mm OD x 1.6mm Thk

4шт.

10

92905C1

PINION

4шт.

11

1997421C1

BOLT

2шт.

12

137023A1

DOWEL

10 x 60 mm

6шт.

13

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

24шт.

14

828-16055

BOLT,Hex, M16 x 2 x 55mm, Cl 10.9

24шт.

15

227116A2

THRUST WASHER

1шт.

16

1259633C3

GEAR

1шт.

17

314226A2

COVER

1шт.

18

227117A2

THRUST WASHER,92mm ID x 176mm OD x 1.62mm Thk

1шт.

19

1259634C3

PINION

lock

1шт.

20

148939C1

SEALING RING,OD 200.60 mm

1шт.

302259A2

BEVEL GEAR

pinion shaft, front axle, see Figure 06-48, consists of: Ref. 21

1шт.

302260A1

GEAR SET

pinion shaft, rear axle, see Figure 06-48, consists of: Ref. 22, not illustrated

1шт.

21

NSS

NOT SOLD SEPARAT

GEAR drive, front axle, 53 T

1шт.

22

NSS

NOT SOLD SEPARAT

GEAR drive, rear axle

1шт.

23

253931A1

BEARING, CUP,179.99mm OD x 28.95mm W

1шт.

24

253932A1

ROLLER BEARING,119.99mm ID x 37.98mm W

1шт.

25

622337C1

BEARING CUP,129.99mm OD x 23.90mm Thk

1шт.

26

622336C1

ROLLER BEARING,84.99mm ID x 30mm W

1шт.

27

388308A1

SEALING RING

not illustrated

1шт.
