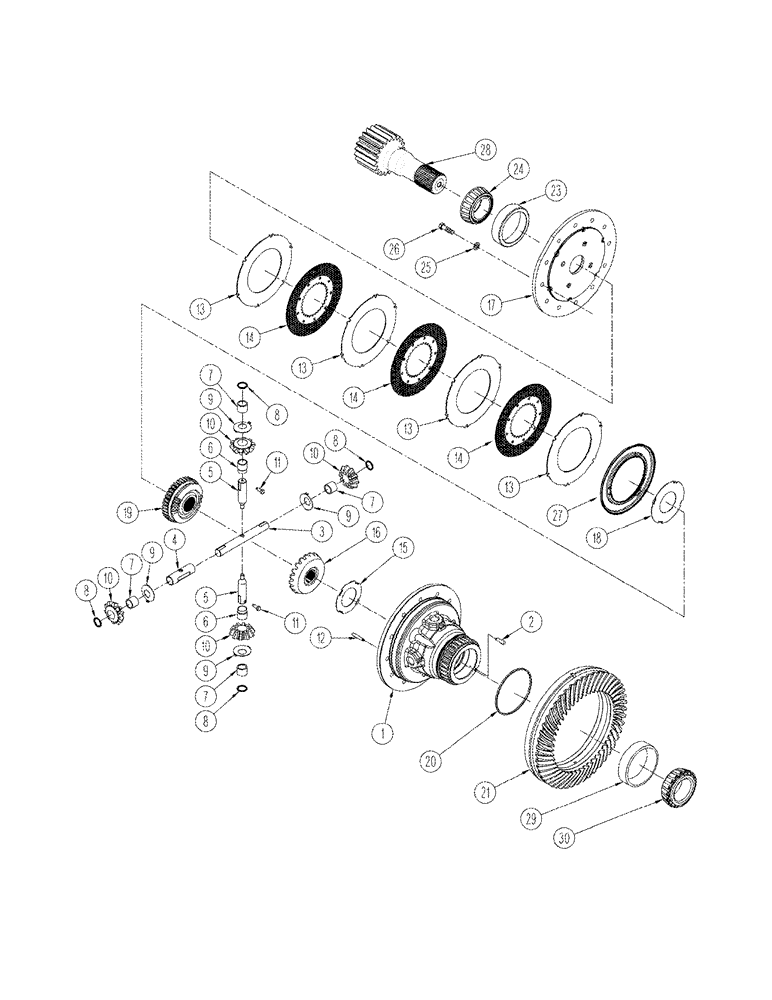

Запчасти Case IH STX375 (06-48) - AXLE ASSY DIFFERENTIAL STX 375 with Differential Locks (06) - POWER TRAIN

87365608

FRONT AXLE

STD W/Diff

1шт.

87365608R

REMAN-FRT AXLE 4 WD

STD Front Axle W/ Diff

1шт.

87365608C

CORE-FRT AXLE 4 WD

CORE-PRESSURE SWITCH STD Front Axle W/Diff

1шт.

87365625

REAR AXLE

STD W/Diff

1шт.

87365625R

REMAN-RR AXLE STD DL

REMAN-REAR AXLE, STD w/DIFF LOCK STX375 BSN JEE0099501, STX 440, N.A. Only

1шт.

87365625C

CORE-RR AXLE STDw/DL

CORE-REAR AXLE, STD w/DIFF LOCK Return Number, For N.A. Only

1шт.

389329A1

HOUSING ASSY.

Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

2

1342851C1

PLUG

10 mm

1шт.

3

92907C1

SHAFT

pinion, long

1шт.

4

1289349C1

SPACER

1шт.

5

92906C1

SHORT SHAFT

pinion, short

2шт.

6

1289350C1

SPACER

2шт.

7

1270697C1

NEEDLE BEARING

28 per gear

112шт.

8

1289348C1

RING

4шт.

9

92718C2

THRUST WASHER,32.7mm ID x 70mm OD x 1.6mm Thk

4шт.

10

92905C1

PINION

4шт.

11

1997421C1

BOLT

2шт.

12

137023A1

DOWEL

10 x 60 mm

6шт.

13

92915C1

PLATE,192mm ID x 322mm OD x 2.74mm Thk

separator

4шт.

14

120679C1

PLATE

friction

3шт.

15

227116A2

THRUST WASHER

1шт.

16

1259633C3

GEAR

1шт.

17

253609A3

COVER

1шт.

18

227117A2

THRUST WASHER,92mm ID x 176mm OD x 1.62mm Thk

1шт.

19

1259634C3

PINION

lock

1шт.

20

148939C1

SEALING RING,OD 200.60 mm

1шт.

302259A2

BEVEL GEAR

pinion shaft, front axle, see Figure 06-49, consists of: Ref. 21

1шт.

302260A1

GEAR SET

pinion shaft, rear axle, see Figure 06-49, consists of: Ref. 22, not illustrated

1шт.

21

NSS

NOT SOLD SEPARAT

GEAR drive, front axle, 53 T

1шт.

22

NSS

NOT SOLD SEPARAT

GEAR drive, rear axle

1шт.

23

253931A1

BEARING, CUP,179.99mm OD x 28.95mm W

1шт.

24

253932A1

ROLLER BEARING,119.99mm ID x 37.98mm W

1шт.

25

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

24шт.

26

828-16055

BOLT,Hex, M16 x 2 x 55mm, Cl 10.9

24шт.

27

1997422C1

PISTON

brake

1шт.

28

310693A1

SHAFT

sun gear, short

1шт.

29

A63171

BEARING CUP,85 mm ID x 130 mm OD x 30.2 mm

1шт.

30

622336C1

ROLLER BEARING,84.99mm ID x 30mm W

1шт.
