Запчасти Case IH STX375 (06-40) - POWER TAKEOFF SAFETY SHEILDS (06) - POWER TRAIN

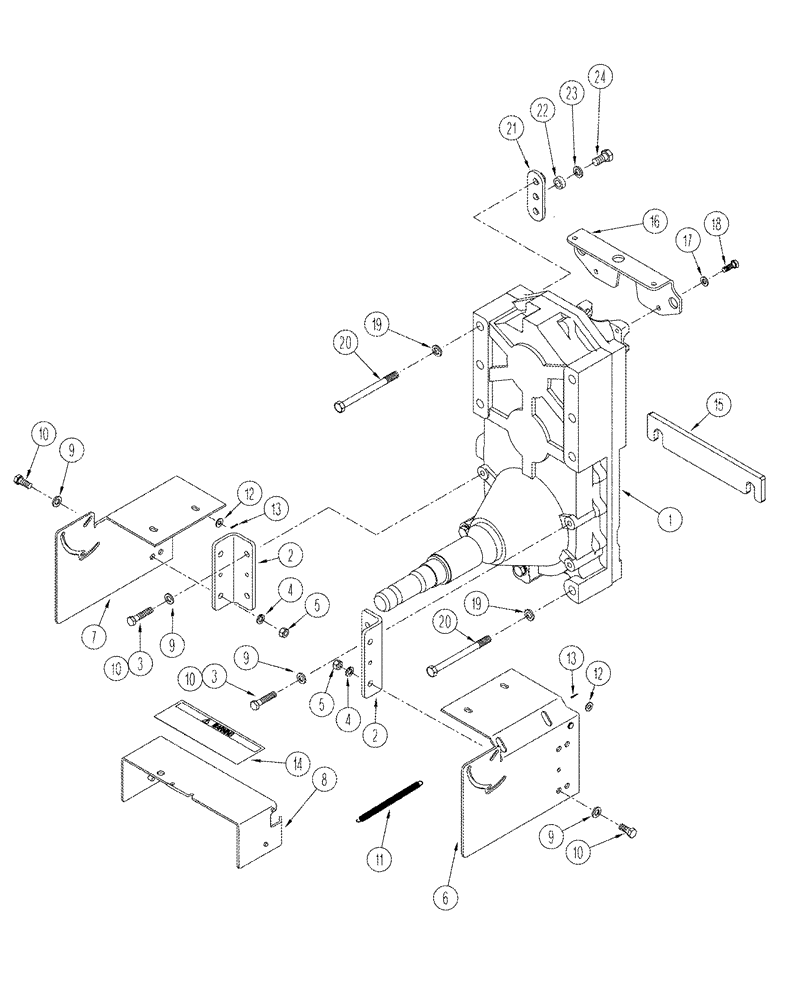

Схема запчастей Case IH STX375 - (06-40) - POWER TAKEOFF SAFETY SHEILDS (06) - POWER TRAIN
9
16
1
18
3
3
21
19
5
12
12
2
11
20
23
2
10
24
13
14
9
13
10
9
9
4
6
17
20
5
22
4
8
19
7
15
10

Артикул

Название

Примечание

Количество

1

253341A2

GEARBOX ASSY

transfer, see Figure 06-41

1шт.

403073A1R

REMAN-PTO GEARBOX A.

STX375 (BSN JEE0099501), STX440 Reman for new P/N 253341A2

1шт.

403073A1C

CORE-PTO GEARBOX A.

Return Number

1шт.

2

361985A3

BRACE

2шт.

3

828-12055

BOLT,Hex, M12 x 1.75 x 55mm, Cl 10.9

4шт.

4

892-11012

LOCK WASHER,M12

4шт.

5

829-1412

NUT,M12, Cl 10.9

4шт.

6

361982A3

COVER

right-hand

1шт.

7

361983A3

COVER

left-hand

1шт.

8

363006A2

SHIELD

flip-up

1шт.

9

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

8шт.

10

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

With three-point hitch

4шт.

10

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

Without three-point hitch

8шт.

11

365853A1

SPRING

2шт.

13

733-2012

COTTER PIN,M2 x 12

2шт.

14

327567A3

DECAL

safety, see Figure 09-58

1шт.

15

240852A1

SPACER

if used

1шт.

16

381389A2

BRACKET

1шт.

17

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

19

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm

4шт.

20

827-20190

BOLT,Hex, M20 x 2.5 x 190mm, Cl 10.9

M20 x 190; 10.9

4шт.

21

259389A1

PLATE

2шт.

22

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

2шт.

23

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

24

627-16025

BOLT,Hex, M16 x 2 x 25mm, Cl 10.9, Full Thd

2шт.

18

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

12

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

Выбрано товаров: 27
