Запчасти Case IH STX375 (04-28) - HARNESS - REAR FRAME, WITH ELECTRONIC REMOTE, WITHOUT THREE POINT HITCH (04) - ELECTRICAL SYSTEMS

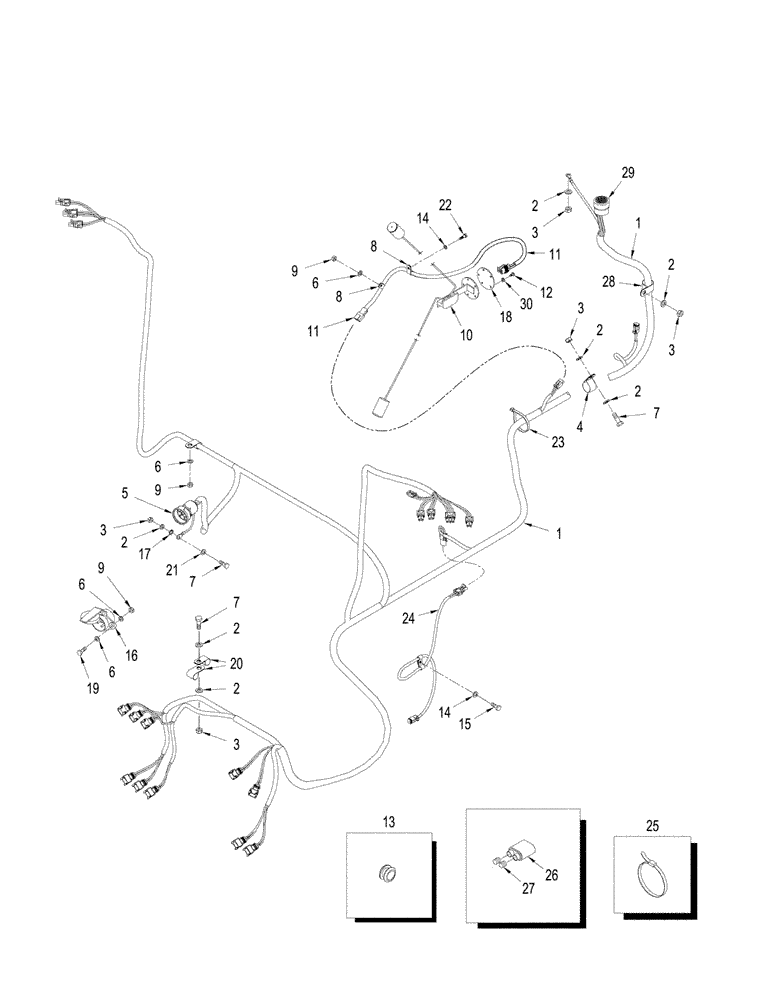

Схема запчастей Case IH STX375 - (04-28) - HARNESS - REAR FRAME, WITH ELECTRONIC REMOTE, WITHOUT THREE POINT HITCH (04) - ELECTRICAL SYSTEMS
16
8
20
22
2
6
10
28
21
14
14
3
26
6
2
2
23
7
4
2
3
7
12
7
2
1
30
1
3
3
24
3
6
9
13
18
9
25
2
2
11
27
15
9
29
5
6
11
19
17
8

Артикул

Название

Примечание

Количество

1

445144A1

HARNESS

1шт.

2

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

15шт.

3

829-1410

NUT,M10 x 1.5, Cl 10.9

10шт.

4

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

3шт.

5

481849C1

PROTECTIVE COVER

1шт.

6

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

10шт.

7

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

6шт.

8

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

2шт.

9

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

9шт.

10

87434676

SENDER UNIT

Fuel Level, Inc. 18

1шт.

11

87438650

HARNESS

Jumper Fuel Sender

1шт.

12

614-5010

BOLT,Hex, M5 x 0.8 x 10mm, Cl 8.8, Full Thd

6шт.

13

328265A1

GROMMET

3шт.

14

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

15

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

4шт.

16

121645C1

MULTIPOLE CONNECTOR,7 Pin

1шт.

17

893-11010

LOCK WASHER,Ext Tooth, M10

1шт.

18

104812C3

GASKET,3.05mm Thk

1шт.

19

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

20

515-2595

CLAMP,3/8", Insul, 1/2" Bolt

1шт.

21

892-11010

LOCK WASHER,M10

1шт.

22

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

1шт.

23

440567A1

CABLE TIE

1шт.

24

392227A1

HARNESS

Differential

1шт.

25

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

2шт.

26

245483C1

ELEC CONNECTOR,Male, 2 Pin

Two Cavity, Without Field Lights

4шт.

27

225127C1

PLUG

Type V4

8шт.

28

515-25254

CLAMP,1", Insul, 1/2" Bolt

1шт.

29

87314864

MULTIPOLE CONNECTOR,48 Pole

48 pin

1шт.

30

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

6шт.

Выбрано товаров: 30
