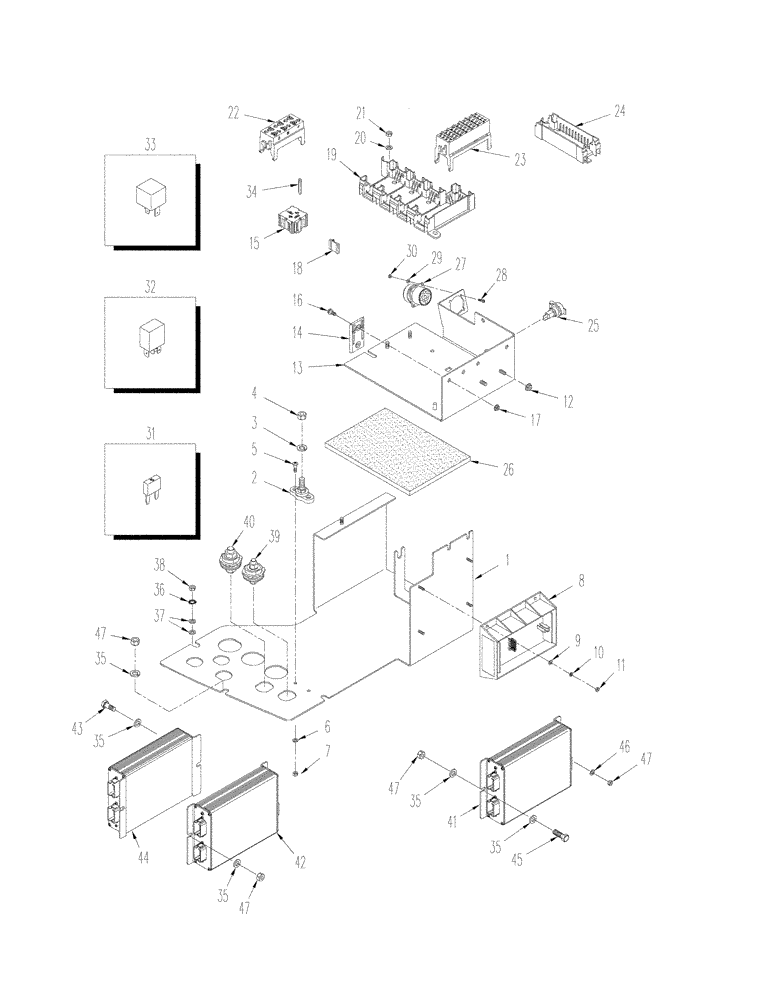

Запчасти Case IH STX375 (04-24) - ELECTRONIC MODULE ASSEMBLY, BSN JEE0106701 (04) - ELECTRICAL SYSTEMS

1

388289A1

BRACKET

Not Illustrated, Serial Range: -JEE0106701

1шт.

1

87416914

BRACKET

, Start Serial: JEE0106701

1шт.

2

20-1451T1

BLOCK

Junction

1шт.

3

892-11010

LOCK WASHER,M10

1шт.

4

425-106

NUT,3/8"-16, Cl 5

1шт.

5

840-1516

SCREW,Pan, M5 x 16mm, Cl 4.8

2шт.

6

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

7

824-1405

NUT,M5, Cl 5

2шт.

8

296674A3

FLASHER UNIT

1шт.

9

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

(4.3 x 9 x 0.8 mm)

4шт.

10

892-11004

LOCK WASHER,M4

4шт.

11

824-1404

NUT,M4, Cl 5

4шт.

12

825-5146

SERRATED NUT,M6, Flg Ser

3шт.

431610A2

MODULE

Electronics, Inc. 13 - 34, Also See Figure 04-22, Serial Range: -JEE0099963

1шт.

Standard Cab

1шт.

With Manual Shift Transmission

1шт.

87416354

MODULE

Electronics, Inc. 13 - 33, Also See Figure 04-22, Start Serial: JEE0099963

1шт.

Standard Cab

1шт.

With Power Shift Transmission

1шт.

431500A2

MODULE

Electronics, Inc. 13 - 34, Also See Figure 04-23, Serial Range: -JEE0106701

1шт.

With Manual Shift Transmission

1шт.

Deluxe Cab

1шт.

87418384

MODULE

Electronics, Inc. 13 - 34, Also See Figure 04-23, Serial Range: -JEE0106701

1шт.

With Power Shift Transmission

1шт.

Deluxe Cab

1шт.

13

339761A3

PLATE

1шт.

14

367147A1

BRACKET

Mounting

3шт.

15

367145A1

ELEC CONNECTOR,Female, 4 Pin

Terminal

5шт.

16

841-4512

SCREW,Hex Washer , M5 x 12mm, Cl 4.8

3шт.

17

825-5145

NUT,M5, Flg Ser

3шт.

18

430116A1

LOCK

1шт.

19

191135A1

BASE

1шт.

20

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

21

829-1406

NUT,Hex, M6 x 1, Cl 10.9

M6; 10.9

3шт.

22

144417A1

CONNECTING BLOCK

3шт.

23

144421A1

CONNECTING BLOCK

2шт.

24

194319A1

FUSE

1шт.

25

300655A1

POWER SOCKET

1шт.

26

349062A1

PAD, RUBBER

1шт.

27

310057A1

ELEC CONNECTOR,Male, 9 Pin

1шт.

28

840-1312

SCREW,Pan, M3 x 121mm, Cl 4.8

4шт.

29

895-11003

WASHER,3.2mm ID x 7mm OD x 0.5mm Thk

(3.2 x 7 x 0.5 mm)

4шт.

30

824-1403

NUT,M3, Cl 5

4шт.

31

121416A1

FUSE,30A, Mini, Green

1шт.

31

121415A1

FUSE,25A, Mini, Clear

1шт.

31

121414A1

FUSE,20A, Mini, Yellow

1шт.

31

121413A1

FUSE,15A, Mini, Blue

1шт.

31

121412A1

FUSE,10A, Mini, Red

1шт.

31

121411A1

FUSE,7.5A, Mini, Brown

5.5 amp

1шт.

31

121410A1

FUSE,5A, Mini, Tan

1шт.

31

368224A1

DIODE

Mini, 1 amp, Differential Lock

1шт.

32

87414866

RELAY,12V, 20A

20 amp

1шт.

33

368459A1

RELAY,12V, 70A

70 amp

1шт.

34

367146A1

WEDGE

4шт.

35

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

36

893-11010

LOCK WASHER,Ext Tooth, M10

2шт.

37

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

38

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

39

A187523

JUNCTION BLOCK

1шт.

With Power Shift Transmission

1шт.

39

190158A1

BLOCK

1шт.

40

311430A1

BLOCK

Junction

1шт.

41

323758A4

CONTROL UNIT

Three Point Hitch

1шт.

Down Load Software From Service Tool

1шт.

41

323758A4R

REMAN ELECT CONTROL

CONTROL UNIT

1шт.

41

323758A4C

CORE-ELECTRONIC CONT

Return Number

1шт.

42

399302A3

CONSOLE

Auxiliary

1шт.

Down Load Software From Service Tool

1шт.

43

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

3шт.

44

391112A2

CONTROL UNIT

Transmission

1шт.

Down Load Software From Service Tool

1шт.

44

391112A2R

REMAN ELECT CONTROL

CONTROL UNIT

1шт.

44

391112A2C

CORE-ELECTRONIC CONT

Return Number

1шт.

45

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

1шт.

46

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

3шт.

47

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

3шт.
