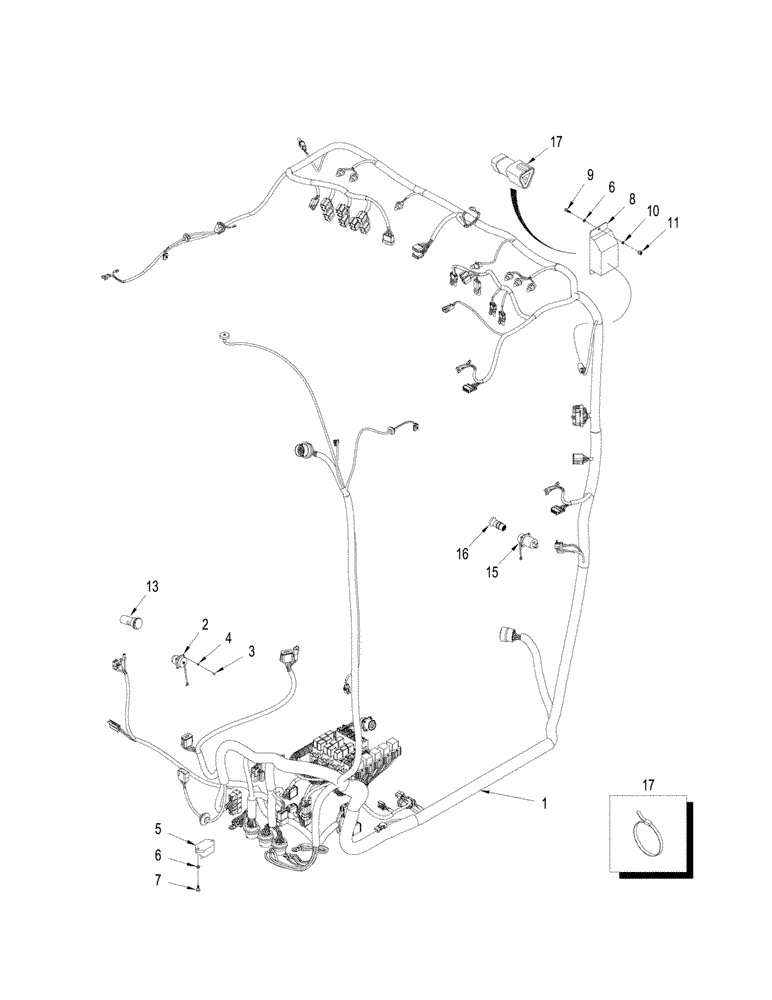

Запчасти Case IH STX375 (04-23) - HARNESS - MAIN CAB, DELUXE AND LUXURY CABS (04) - ELECTRICAL SYSTEMS

431500A2

MODULE

Electronics, Inc. 1, See Figure 04-24, Serial Range: -JEE0106701

1шт.

With Manual Shift Transmission

1шт.

87326446

PRINTED CIRCUIT BOAR

Electronics, Inc. 1, See Figure 04-24, Start Serial: JEE0106701

1шт.

With Manual Shift Transmission

1шт.

87418384

MODULE

Electronics, Inc. 1, See Figure 04-24, Serial Range: -JEE0106701

1шт.

With Power Shift Transmission

1шт.

87326440

WIRE HARNESS

Electronics, Inc. 1, See Figure 04-24, Start Serial: JEE0106701

1шт.

With Power Shift Transmission

1шт.

1

NSS

NOT SOLD SEPARAT

Harness, Main Cab

1шт.

With Manual Shift Transmission

1шт.

With Power Shift Transmission

1шт.

2

227739A2

POWER SOCKET

Power

3шт.

3

383986A1

RIVET

12шт.

4

895-11003

WASHER,3.2mm ID x 7mm OD x 0.5mm Thk

(3.2 x 7 x 0.5 mm)

12шт.

5

20-2041T2

CIRCUIT BREAKER

1шт.

6

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

, Serial Range: -JEE0106701

4шт.

7

840-1620

SCREW,Pan, M6 x 20mm, Cl 4.8

2шт.

8

397496A1

MULTIPOLE CONNECTOR,4 Pin

Passive, Serial Range: -JEE0106701

1шт.

9

863-6020

HEX SOC SCREW,M6 x 20mm, Cl 12.9

, Serial Range: -JEE0106701

3шт.

10

892-11006

LOCK WASHER,M6

, Serial Range: -JEE0106701

3шт.

11

829-1406

NUT,Hex, M6 x 1, Cl 10.9

M6; 10.9, Serial Range: -JEE0106701

3шт.

12

388811A1

CIGAR LIGHTER

Not Illustrated

1шт.

13

388813A1

OUTLET

Power, Not Illustrated

2шт.

14

345471A1

SWITCH

Differential Lock, Not Illustrated

1шт.

15

87452321

OUTLET

1шт.

16

388810A1

ELEMENT

Pop-Out Lighter, If used

1шт.

17

84058092

CONTACT HOUSING,120 Ohm Resistor

1шт.
