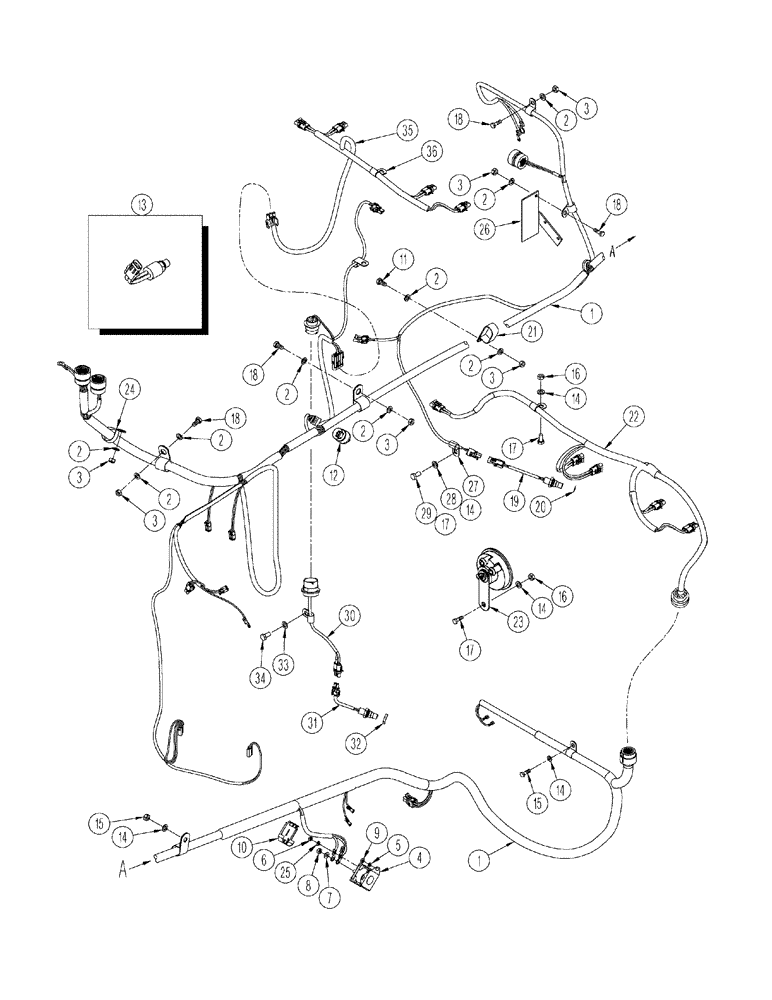

Запчасти Case IH STX375 (04-20) - HARNESS - FRONT FRAME, BSN JEE0104001 (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
429733A2
HARNESS
Front Frame
1шт.
For Ether Start System , must also order P/N 429495A1 Harness
1шт.
1
440702A1
HARNESS
Front Frame - EURO
1шт.
Europe Application
1шт.
2
895-11010
WASHER,11mm ID x 20mm OD x 2mm Thk
23шт.
3
829-1410
NUT,M10 x 1.5, Cl 10.9
16шт.
4
183038A1
SOLENOID
1шт.
5
895-11006
WASHER,6.6mm ID x 12mm OD x 1.6mm Thk
5шт.
7
495-11034
WASHER,5/16", SAE
(11/32 x 11/16 x 1/16")
2шт.
8
425-105
NUT,5/16"-18, G5
2шт.
9
829-1406
NUT,Hex, M6 x 1, Cl 10.9
M6; 10.9
2шт.
10
178148A1
COVER
1шт.
11
614-10030
BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd
1шт.
12
293797A1
RESTRICTION SWITCH
Air
1шт.
13
339529A1
PRESSURE SWITCH
Park Brake
1шт.
14
895-11008
WASHER,9mm ID x 16mm OD x 1.6mm Thk
5шт.
15
614-8025
BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd
3шт.
16
829-1408
NUT,Hex, M8 x 1.25, Cl 10.9
3шт.
17
614-6025
BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd
3шт.
18
614-10025
BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8
6шт.
19
330124A1
SWITCH
M18 orb x 1,5, Axle Lube, Inc. 20
1шт.
20
637-63153
O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro
1шт.
21
L111928
CLAMP
4шт.
22
413807A1
HARNESS
Light Bar
1шт.
23
237582A1
HORN
FC9
1шт.
24
515-25381
CLAMP,1 1/2", Insul, 1/2" Bolt
1шт.
25
495-31022
WASHER,#10
1шт.
26
411019A1
BRACKET
Air Intake
1шт.
27
515-2595
CLAMP,3/8", Insul, 1/2" Bolt
1шт.
28
896-11012
WASHER,13.5mm ID x 24mm OD x 3mm Thk
1шт.
29
614-12016
BOLT,Hex, M12 x 1.75 x 16mm, Cl 8.8, Full Thd
1шт.
30
402200A1
HARNESS
Manual Transmission
1шт.
With Advanced Farming Systems (AFS)
1шт.
32
934120R1
THIN NUT,Thin, M20 x 1.5
1шт.
33
896-11012
WASHER,13.5mm ID x 24mm OD x 3mm Thk
1шт.
34
614-12016
BOLT,Hex, M12 x 1.75 x 16mm, Cl 8.8, Full Thd
1шт.
35
371122A2
HARNESS
Lower Wipers
1шт.
36
515-2295
CLAMP,3/8", Insul, 5/16" Bolt
1шт.
Выбрано товаров: 40
