Запчасти Case IH STX375 (04-20[01]) - HARNESS - FRONT FRAME, ASN JEE0104001 (04) - ELECTRICAL SYSTEMS

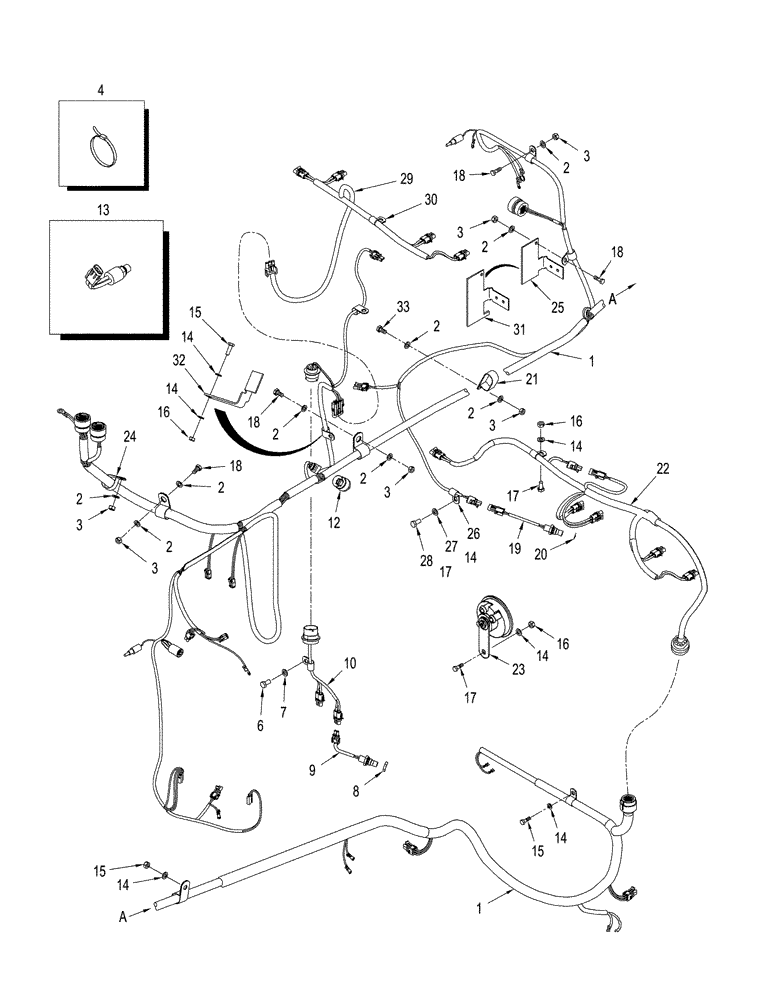

Схема запчастей Case IH STX375 - (04-20[01]) - HARNESS - FRONT FRAME, ASN JEE0104001 (04) - ELECTRICAL SYSTEMS
3
32
25
14
17
18
2
6
20
10
2
1
33
2
21
7
14
24
18
3
13
3
19
9
2
29
15
16
14
23
16
3
15
3
14
2
26
15
14
1
22
14
4
12
17
8
14
17
30
3
16
31
18
28
27
2
2
2
18
2

Артикул

Название

Примечание

Количество

1

87417508

HARNESS

Front Frame, Serial Range: -JEE0106701

1шт.

1

87423003

HARNESS

Front Frame, Serial Range: -JEE0106701

1шт.

Europe Application

1шт.

1

87324034

WIRE HARNESS

Front Frame, Start Serial: JEE0106701

1шт.

2

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

23шт.

3

829-1410

NUT,M10 x 1.5, Cl 10.9

16шт.

4

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

3шт.

5

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

6

614-12016

BOLT,Hex, M12 x 1.75 x 16mm, Cl 8.8, Full Thd

1шт.

7

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

8

934120R1

THIN NUT,Thin, M20 x 1.5

1шт.

9

A186004

SENSOR

Engine Speed

1шт.

10

402200A1

HARNESS

Transmission

1шт.

With Advanced Farming Systems (AFS)

1шт.

With Manual Shift Transmission

1шт.

11

87417513

HARNESS

Transmission, Not Illustrated

1шт.

With Advanced Farming Systems (AFS)

1шт.

With Power Shift Transmission

1шт.

12

293797A1

RESTRICTION SWITCH

Air

1шт.

13

339529A1

PRESSURE SWITCH

Park Brake

1шт.

14

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

5шт.

15

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

3шт.

16

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

3шт.

17

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

3шт.

18

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

6шт.

19

330124A1

SWITCH

M18 orb x 1,5, Axle Lube, Inc. 20

1шт.

20

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

21

L111928

CLAMP

4шт.

22

413807A1

HARNESS

Light Bar

1шт.

23

237582A1

HORN

FC9

1шт.

24

515-25381

CLAMP,1 1/2", Insul, 1/2" Bolt

1шт.

25

411019A3

BRACKET

Air Intake, Serial Range: -JEE0105346

1шт.

26

515-2595

CLAMP,3/8", Insul, 1/2" Bolt

1шт.

27

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

28

614-12016

BOLT,Hex, M12 x 1.75 x 16mm, Cl 8.8, Full Thd

1шт.

29

371122A2

HARNESS

Lower Wipers

1шт.

30

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

1шт.

31

87305067

BRACKET, SUPPORTING

, Start Serial: JEE0105346

1шт.

32

437145A1

BRACKET

Offset Air Intake

1шт.

33

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

Выбрано товаров: 40
