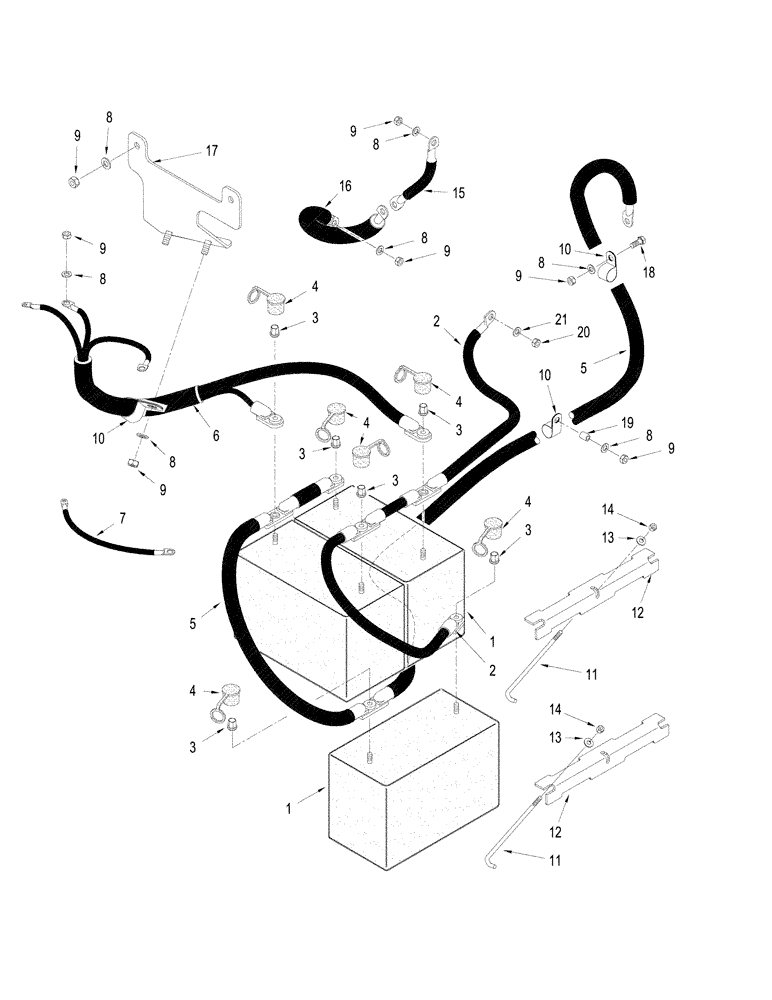

Запчасти Case IH STX375 (04-15[01]) - BATTERIES - WHEEL TRACTOR, BSN JEE0104001 (04) - ELECTRICAL SYSTEMS

1

BMF31GS

DRY BATTERY

1000 CCA

3шт.

2

366724A1

CABLE

Ground, Inc. 3, 4

1шт.

3

313189A1

NUT

2шт.

4

NSS

NOT SOLD SEPARAT

Cap

2шт.

5

366725A2

CABLE

Positive, Inc. 3, 4

1шт.

6

361988A3

HARNESS

Cab Power, Inc. 3, 4

1шт.

7

364590A1

CABLE

Circuit Breaker

1шт.

8

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

8шт.

9

829-1410

NUT,M10 x 1.5, Cl 10.9

8шт.

10

515-25254

CLAMP,1", Insul, 1/2" Bolt

2шт.

11

365357A1

ROD

2шт.

12

365358A2

BRACKET

Holddown

2шт.

13

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

14

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

15

442762A1

CABLE

Engine Ground

1шт.

16

364591A1

CABLE

Chassis Ground

1шт.

17

365035A5

BRACKET

1шт.

18

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

3шт.

19

432444A1

SPACER

1шт.

20

829-1412

NUT,M12, Cl 10.9

1шт.

21

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.
