Запчасти Case IH STX375 (04-10) - RADIO AND SPEAKERS (04) - ELECTRICAL SYSTEMS

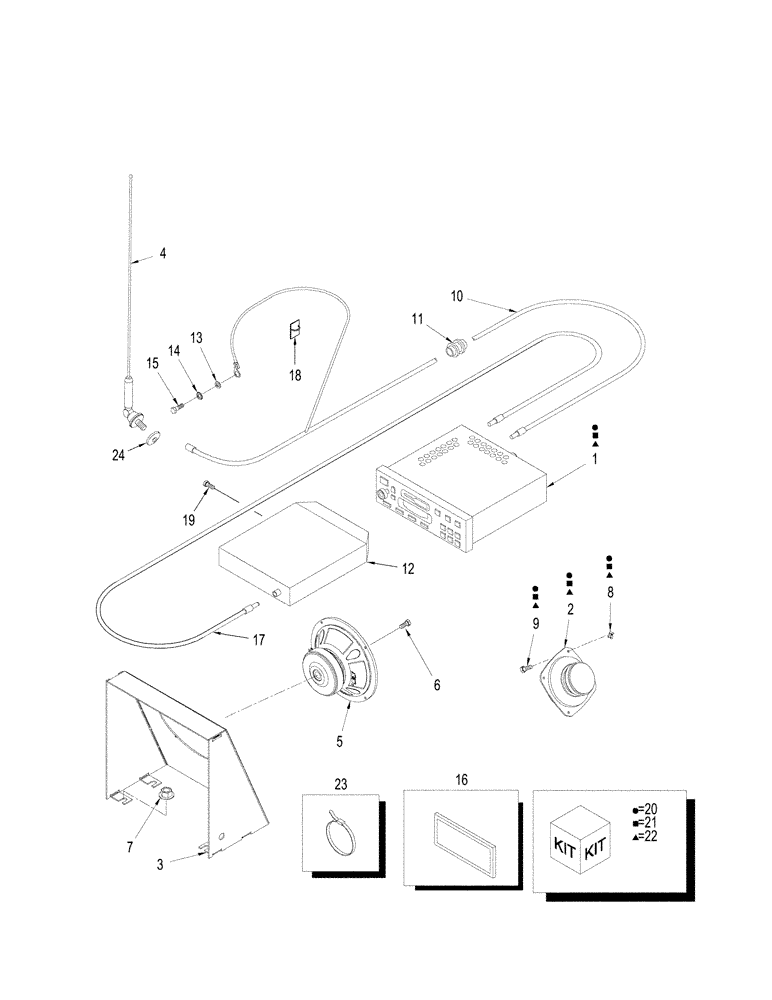

Схема запчастей Case IH STX375 - (04-10) - RADIO AND SPEAKERS (04) - ELECTRICAL SYSTEMS
13
21
22
21
22
21
6
3
11
10
14
15
7
16
20
9
12
18
22
21
20
20
20
22
20
23
8
21
5
20
2
4
1
19
22
24
21
17
22

Артикул

Название

Примечание

Количество

1

366631A2

RADIO

AM / FM / WB

1шт.

1

355623A2

RADIO

AM / FM / WB / Cassette

1шт.

Deluxe Cab

1шт.

1

325061A2

RADIO

AM/FM/WB, With Cassette Tape, CD Changer Ready

1шт.

Luxury Cab

1шт.

1

86998223

RADIO

Delco, AM / FM / WB / Single CD

1шт.

2

258342A2

SPEAKER

Co-Axial

2шт.

3

388445A1

HOUSING

Subwoofer

1шт.

4

360215A1

ANTENNA

1шт.

5

388444A1

SPEAKER

8, Subwoofer

1шт.

6

760-14395

SELF-TAP SCREW,Pan Hd, M4.2 x 9.5

4шт.

6

760-14316

SELF-TAP SCREW,Pan Hd, M4.2 x 16

Australian Models

4шт.

7

825-51410

FLANGE NUT,M10, Flg Ser

4шт.

7

825-5148

SERRATED NUT,M8, Flg Ser

4шт.

8

177269A1

SPRING NUT,M4.2

8шт.

9

1270741C1

SELF-TAP SCREW,Cross Pan Hd, #8 x 1"

8шт.

10

360432A2

HARNESS

Antenna, Inc. 11

1шт.

11

NSS

NOT SOLD SEPARAT

Grommet

1шт.

12

317688A1

COMPACT DISC PLAYER

Delco, 6 Disc

1шт.

13

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

14

893-11006

LOCK WASHER,Ext Tooth, M6

1шт.

15

779-14613

SELF-TAP SCREW,Hex Hd, M6.3 x 13

1шт.

16

1535219C1

COVER

Without Radio

1шт.

17

303433A1

HARNESS

CD Player, If Used

1шт.

17

449071A1

HARNESS

CD Player, 5486 mm (216 in), If Used

1шт.

18

388489A1

CLIP,ELECTRICAL

2шт.

19

864-5012

HEX SOC SCREW,M5 x 12mm, Cl 8.8

3шт.

20

334229A1

KIT

AM / FM / WB / Cassette / CD, Inc. 1,2,8,9

1шт.

21

186158A1

KIT

AM / FM / WB, Includes 1,2,8,9

1шт.

22

719582003

KIT

Single CD Player / Radio

1шт.

23

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

1шт.

24

87343754

SPACER

1шт.
