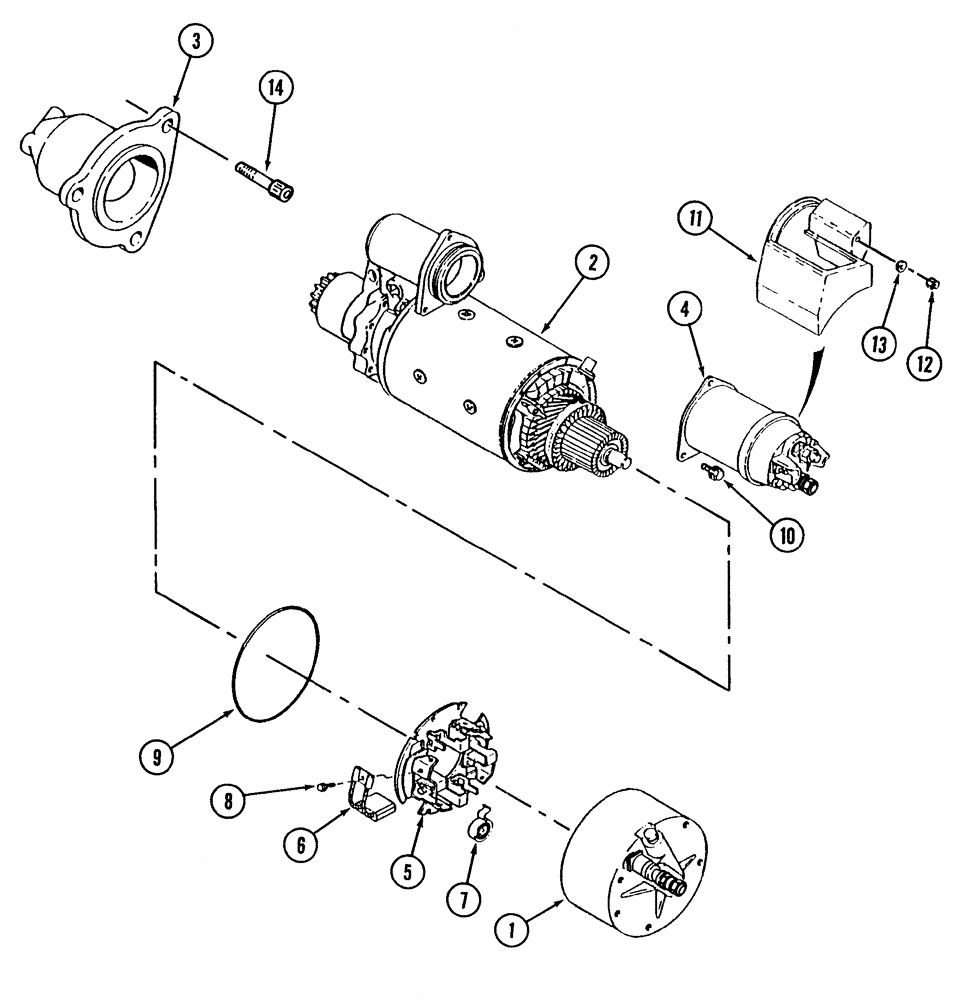

Запчасти Case IH STX375 (04-08) - STARTER ASSEMBLY, BSN JEE0102479 (04) - ELECTRICAL SYSTEMS

87409408

STARTING MOTOR

12V, 42MT, Delco Remy, Inc. 1- 13

1шт.

87409408R

REMAN-STARTER

Remanufactured, STARTER, For N.A. Only

1шт.

87409408C

CORE-STARTER

Return Number, For N.A. Only

1шт.

87409260

REMAN-STARTER

Remanufactured, Inc. 1 - 63

1шт.

87409261

CORE-STARTER

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

Cover, Commutator End

1шт.

2

NSS

NOT SOLD SEPARAT

Motor

1шт.

3

NSS

NOT SOLD SEPARAT

Housing

1шт.

4

419816A1

SOLENOID

1шт.

5

NSS

NOT SOLD SEPARAT

Plate

1шт.

81774C1

BRUSH SET

Consists of 6 - 9

1шт.

6

NSS

NOT SOLD SEPARAT

Brush

4шт.

7

NSS

NOT SOLD SEPARAT

Spring

4шт.

8

NSS

NOT SOLD SEPARAT

Screw

4шт.

9

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

10

NSS

NOT SOLD SEPARAT

Bolt

1шт.

11

NSS

NOT SOLD SEPARAT

Guard

1шт.

12

NSS

NOT SOLD SEPARAT

Nut

1шт.

13

NSS

NOT SOLD SEPARAT

Washer

1шт.

14

NSS

NOT SOLD SEPARAT

Bolt

3шт.

Order From Your Cummins Engine Dealer

1шт.
