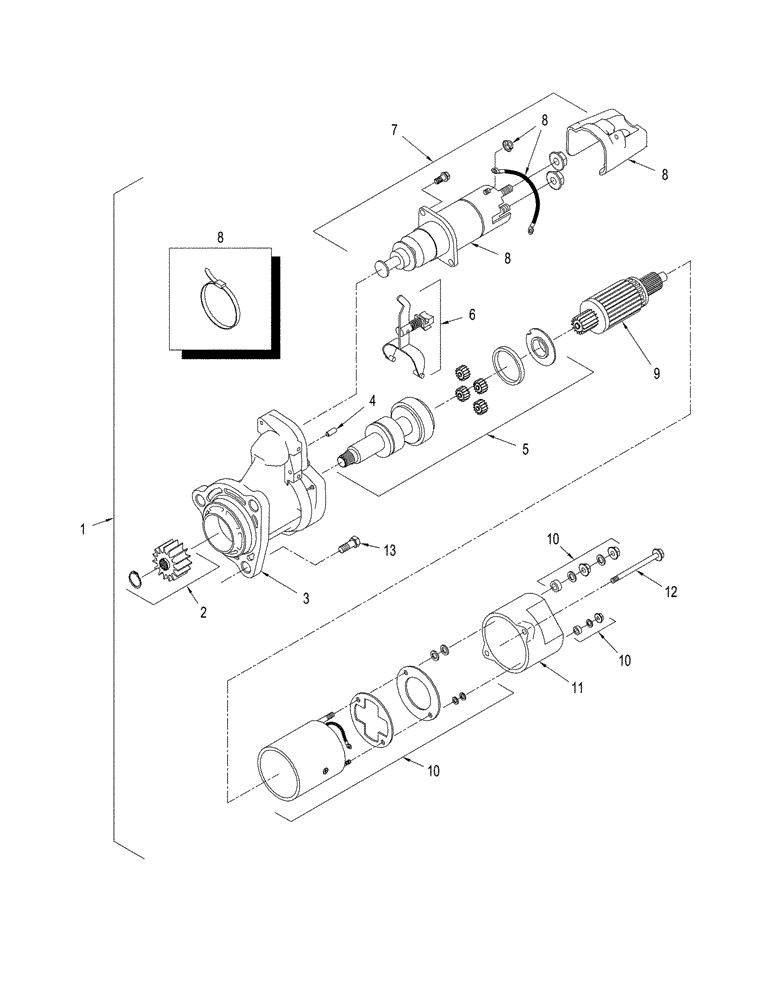

Запчасти Case IH STX375 (04-08[01]) - STARTER ASSEMBLY, ASN JEE0102479 (04) - ELECTRICAL SYSTEMS

1

87415661

STARTING MOTOR

12V, 39MT-HD, Delco Remy, Inc. 2 - 12, Serial Range: JEE0104001-JEE0102479

1шт.

1

87415662R

REMAN-STARTER,12V

Remanufactured Starter

1шт.

1

87415662C

CORE-STARTER,12V

Return Part Number

1шт.

1

87417338

STARTING MOTOR

24V, 39MT-HD, Delco Remy, Inc. 2 - 12, Start Serial: JEE0104001

1шт.

1

87417338R

REMAN-STARTER

Remanufactured Starter

1шт.

1

87417338C

CORE-STARTER

Return Part Number

1шт.

1

140855A3R

REMAN-STARTER,12V

Remanufactured Starter 12 volt, 42MT

1шт.

1

140855A3C

CORE-STARTER,12V

Return Part Number, Starter 12 volt, 42MT

1шт.

2

87429796

PINION

Assy.

1шт.

3

87429803

HOUSING

Inc. 4

1шт.

4

NSS

NOT SOLD SEPARAT

Pin, Roll

1шт.

5

87429799

DRIVE ASSY.

Without Pinion Kit

1шт.

6

87429793

LEVER ASSY.

1шт.

7

87429798

SOLENOID

12V, With Jump Start Shield, Serial Range: JEE0104001-JEE0102479

1шт.

7

87429797

KIT

24V, With Jump Start Shield, Start Serial: JEE0104001

1шт.

8

87454482

FIP KIT

Jump Start

1шт.

9

87429801

ARMATURE

12V, Serial Range: JEE0104001-JEE0102479

1шт.

9

87429802

ARMATURE

24V, Start Serial: JEE0104001

1шт.

10

87429795

BRUSH ASSY.

12V, Serial Range: JEE0104001-JEE0102479

1шт.

10

87429794

BRUSH ASSY.

24V, Start Serial: JEE0104001

1шт.

11

87429800

HOUSING

Communicator End

1шт.

12

87429804

BOLT

2шт.

13

NSS

NOT SOLD SEPARAT

Bolt, Mounting, 2 x 1/16, Gr 8.8

3шт.

Order From Your Cummins Engine Dealer

1шт.
