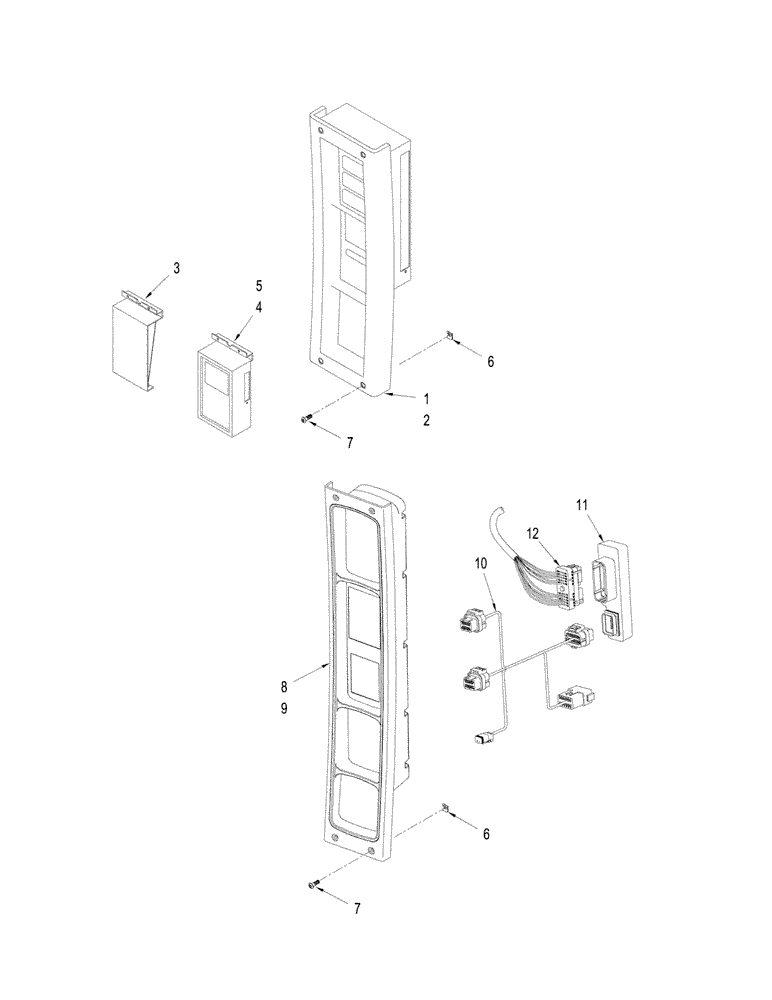

Запчасти Case IH STX375 (04-04) - INSTRUMENT CLUSTER (04) - ELECTRICAL SYSTEMS

1

434711A1

CLUSTER, INSTR.

CLUSTER, INSTRUMENT, Serial Range: -JEE0102001

1шт.

1

86989494

CLUSTER, INSTR.

CLUSTER, INSTRUMENT, Serial Range: JEE0102001-JEE0106701

1шт.

Tractors W/ Manual Shift, W/ PMU Order P/N 87314358, 87314361, 87350683

1шт.

Tractors W/ PWRSHFT, W/ PMU Order P/N 87314358, 87314360, 87350683

1шт.

Tractors W/ Manual Shift, W/O PMU Order P/N 84314358, 87314361, 87350682

1шт.

Tractors W/ PWRSHFT, W/O PMU Order P/N 87314358, 87314360, 87350682

1шт.

2

NSS

NOT SOLD SEPARAT

Software, Not Illustrated

1шт.

Down Load Software From Service Tool

1шт.

3

358296A1

PANEL

Without Performance Monitor, Serial Range: -JEE0106701

1шт.

4

NSS

NOT SOLD SEPARAT

CLUSTER, INSTRUMENT Performance Monitor, Serial Range: -JEE0106701

1шт.

No Longer Available, See Instrument Cluster 86989494 for Ordering Instructions

1шт.

5

NSS

NOT SOLD SEPARAT

Software, Not Illustrated, Serial Range: -JEE0106701

1шт.

Down Load Software From Service Tool

1шт.

6

177269A1

SPRING NUT,M4.2

4шт.

7

260-16516

SELF-TAP SCREW,Cross Pan Hd, #10 x 1"

4шт.

8

87307900

MODULE

Deluxe, ICU2, Start Serial: JEE0106701

1шт.

8

87307899

MODULE

Basic, ICU2, Start Serial: JEE0106701

1шт.

8

87549279R

REMAN-MODULE

Basic, Start Serial: JEE0106701

1шт.

8

87549279C

CORE-MODULE

Return Number

1шт.

9

NSS

NOT SOLD SEPARAT

Software, Basic / Deluxe Instrument, Not Illustrated, Start Serial: JEE0106701

1шт.

Down Load Software From Service Tool

1шт.

10

87314360

HARNESS

Jumper, ICU to, Serial Range: ICU-ICU2

1шт.

With Power Shift Transmission

1шт.

Used to Convert BSN JEE0106701 ICU to ASN JEE0106701 ICU2

1шт.

10

87314361

HARNESS

Jumper, ICU to, Serial Range: ICU-ICU2

1шт.

With Manual Shift Transmission

1шт.

Used to Convert BSN JEE0106701 ICU to ASN JEE0106701 ICU2

1шт.

11

87314358

ADAPTER

Module, ICU to, Serial Range: ICU-ICU2

1шт.

Used to Convert BSN JEE0106701 ICU to ASN JEE0106701 ICU2

1шт.

12

REF

INSTRUCTION

Harness, Main Cab, See Figure: 04-22 & 04-23

1шт.

365979A1

KIT

Performance Monitor, Inc. 4, Serial Range: -JEE0106701

1шт.

87311112

KIT

Performance Monitor, Inc. 4, Start Serial: JEE106702

1шт.
