Запчасти Case IH STX375 (04-01[01]) - CONTROLS - RIGHT HAND CONSOLE, ASN JEE0106701 (04) - ELECTRICAL SYSTEMS

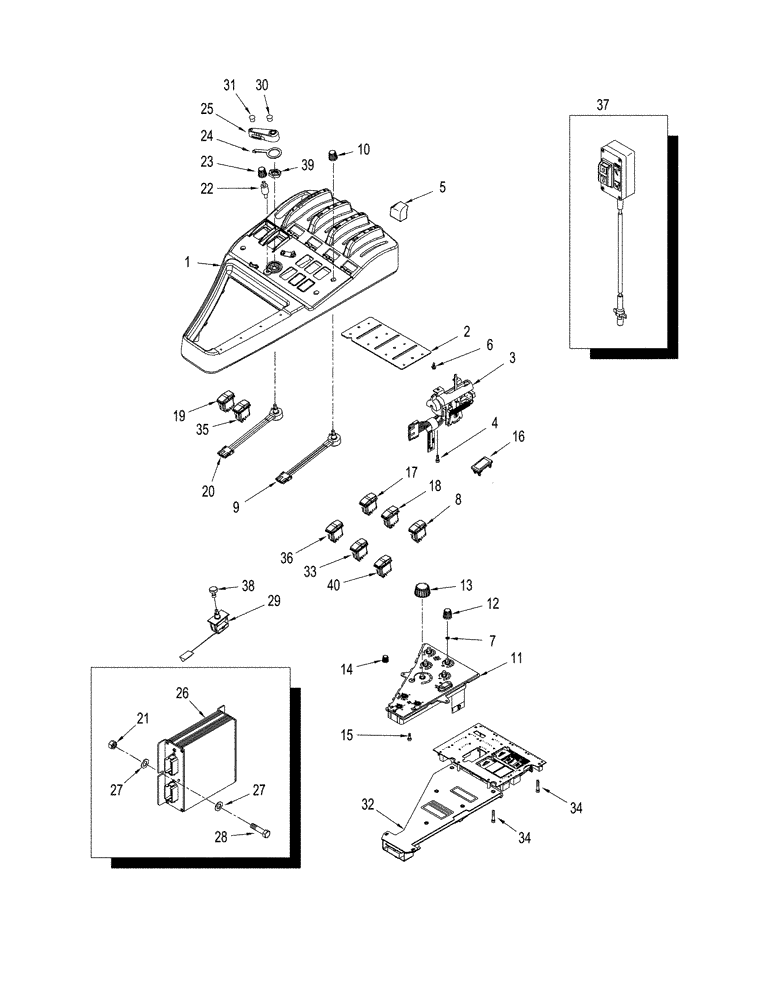

Схема запчастей Case IH STX375 - (04-01[01]) - CONTROLS - RIGHT HAND CONSOLE, ASN JEE0106701 (04) - ELECTRICAL SYSTEMS
17
12
34
5
11
39
33
34
14
23
20
19
16
9
18
37
13
30
31
27
38
29
36
8
22
26
3
35
4
2
28
6
21
25
10
24
32
7
1
15
40
27

Артикул

Название

Примечание

Количество

1

87412651

COVER ASSY

Housing, Upper, w/ Decal, See Figure: 09-23

1шт.

87395318

CONTROL

Electronic, Inc. 2 - 4

1шт.

2

230098A1

PLATE

Mounting

1шт.

3

87395299

CONTROL VALVE

Remote Auxiliary

4шт.

3

47372893R

REMAN-JOYSTICK

STX375, STX425, STX450, STX500 All 4WD TRACTOR (AFTER S/N JEE0099501) (ASN JEE0106701), Reman for New PN 87395299

4шт.

3

47372893C

CORE-JOYSTICK

Return Number

4шт.

4

261-3446

SELF-TAP SCREW,Sltd Pan Hd, #8-32 x 3/8"

8шт.

5

406962A1

KNOB

Remote

4шт.

6

864-4020

HEX SOC SCREW,M4 x 20mm, Cl 8.8

4шт.

7

A39888

NUT

3/8-32

1шт.

8

86989947

SWITCH

Fifth Auxiliary Valve

1шт.

9

256305A2

POTENTIOMETER,1000 Ohm

Flow Control

1шт.

10

276797A1

KNOB

Flow Control

1шт.

11

339735A1

PANEL

Secondary

1шт.

With Three Point Hitch

1шт.

11

238290A4

PANEL

Secondary

1шт.

Without Three Point Hitch

1шт.

12

276797A1

KNOB

Flow Control

4шт.

13

187820A1

KNOB

Remote Valve Timer Control

1шт.

14

223433A1

KNOB

Electronic Draft Control

2шт.

With Three Point Hitch

1шт.

15

760-14316

SELF-TAP SCREW,Pan Hd, M4.2 x 16

2шт.

16

406324A2

PLUG

2шт.

17

87417060

SWITCH

Differential Lock, Front

1шт.

18

87417061

SWITCH

Differential Lock, Rear

1шт.

19

86990406

SWITCH

Hitch Position

1шт.

20

256304A2

POTENTIOMETER,1000 Ohm

Three Point Hitch

1шт.

21

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

22

256303A2

LOCK

Stop Position

1шт.

23

276797A1

KNOB

Stop Position

1шт.

24

248087A1

LEVER

Stop Position

1шт.

25

299483A2

CONTROL LEVER

Hitch Position

1шт.

26

323758A4

CONTROL UNIT

Three Point Hitch

1шт.

26

323758A4R

REMAN ELECT CONTROL

CONTROL UNIT

1шт.

26

323758A4C

CORE-ELECTRONIC CONT

Return Number

1шт.

27

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

28

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

1шт.

29

414495A1

SWITCH

Power Takeoff

1шт.

30

353-402

PLUG,Dome, .375" hole, Nylon

1шт.

Without Three Point Hitch

1шт.

31

374705A1

PLUG

1шт.

Without Three Point Hitch

1шт.

32

87454949

UNIT

Armrest Processor

1шт.

Down Load Software From Service Tool

1шт.

32

87524858R

REMAN ELECT CONTROL

Armrest Processor

1шт.

32

87524858C

CORE-ELECTRONIC CONT

Return Number

1шт.

33

87440713

SWITCH

ACCUGUIDE

1шт.

34

87536486

SCREW,M4 x 0.7 x 16.01mm, Cl 12.9

M4 x 16; 12.9

6шт.

35

86989951

SWITCH

Scraper

1шт.

36

87414327

SWITCH

EDC, Slip Limit Control

1шт.

37

382247A1

SWITCH

Remote, Three Point Hitch

1шт.

38

411705A3

KNOB

Power Takeoff

1шт.

39

375844A1

NUT

1шт.

40

87308327

SWITCH

Engine Brake

1шт.

Выбрано товаров: 54
