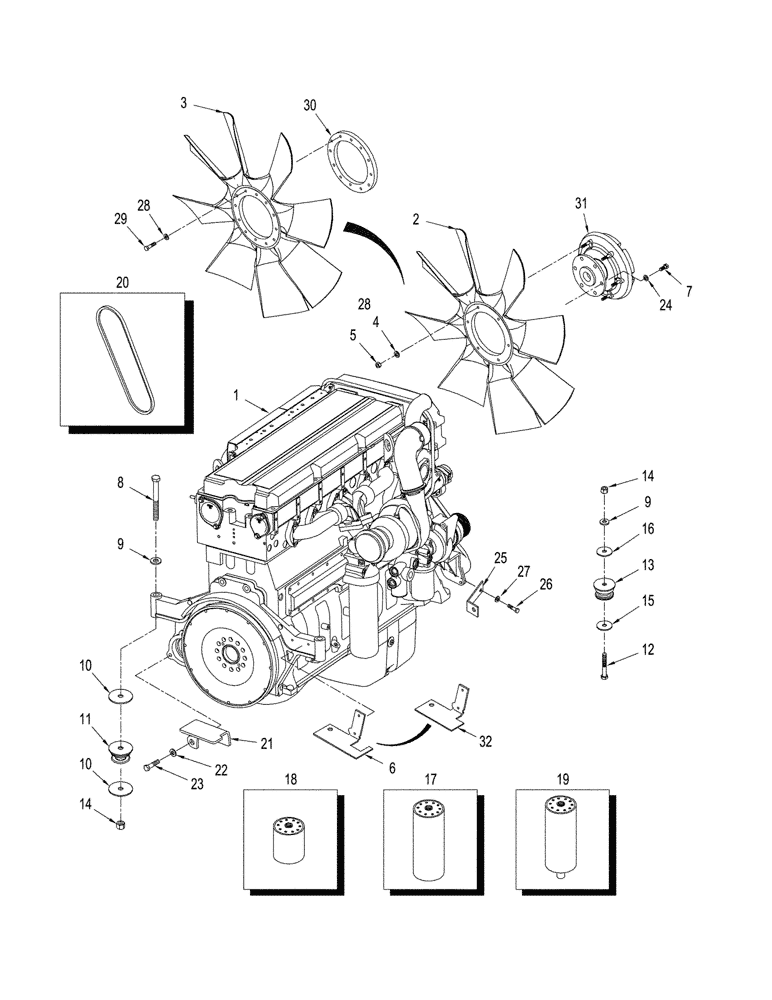

Запчасти Case IH STX375 (02-10) - ENGINE - MOUNTING AND ATTACHING PARTS (02) - ENGINE

1

NSS

NOT SOLD SEPARAT

Engine

1шт.

See Your Cummins Engine Dealer for Service Parts.

1шт.

2

414782A2

FAN

, Serial Range: -JEE0104557

1шт.

STX375

1шт.

When Ordering Supply (1) 8744096 Fan, (1) 87419100 Mounting Plate, (6) 627-8025 Bolt, (12) 496-41034 Washer, & (6) 832-10408 Lock Nut.

1шт.

2

414577A1

FAN

See Figure 02-03

1шт.

STX425

1шт.

STX450

1шт.

3

87440096

FAN

32", Start Serial: JEE0104557

1шт.

STX375

1шт.

4

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

6шт.

5

832-10408

NUT,M8 x 1.25, Cl 8.8

6шт.

STX425 & STX450

1шт.

5

832-10408

NUT,M8 x 1.25, Cl 8.8

6шт.

STX375

1шт.

6

411019A3

BRACKET

, Start Serial: JEE0105346

1шт.

7

614-8080

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8, Full Thd

6шт.

7

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

6шт.

STX375

1шт.

8

827-16200

BOLT,Hex, M16 x 2 x 200mm, Cl 10.9

2шт.

9

496-41066

WASHER,5/8" ID x 1-1/2" OD x 3/16" Thk

2шт.

10

361812A1

WASHER

23/32 x 3-3/4 x 3/16

2шт.

11

382235A1

RUBBER MOUNTING

2шт.

11

1286903C1

INSULATOR BLOCK

Cab/Engine Mount

2шт.

12

827-16110

BOLT,Hex, M16 x 2 x 110mm, Cl 10.9

2шт.

13

24-231

RUBBER MOUNTING

2шт.

14

832-10416

NUT,M16 x 2, Cl 8

2шт.

15

227809A1

WASHER

2шт.

16

51-128

WASHER

21/32 x 3-1/2 x 3/16

2шт.

17

324617A1

ENGINE OIL FILTER

1шт.

18

324618A1

FILTER

1шт.

19

419858A1

FUEL FILTER

1шт.

20

325289A1

V-BELT,1013.50 mm L, 12 Ribs

Water Pump

1шт.

20

87437226

V-BELT,3.56 mm W x 1589.80 mm L, 5 Ribs

Accessory Drive, Alternator & Air Conditioning

1шт.

21

411301A2

SHIELD

Heat

1шт.

22

492-11062

BEARING WASHER,5/8"

2шт.

23

426-1012

BOLT,Hex, 5/8" - 11 x 3/4", Gr 8

2шт.

24

893-11008

LOCK WASHER,Ext Tooth, M8

6шт.

24

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

6шт.

STX375

1шт.

25

87422995

BRACKET

Engine Harness, Start Serial: JEE0104557

1шт.

26

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

2шт.

27

892-11012

LOCK WASHER,M12

2шт.

28

496-41034

WASHER,.344" x 1" x .098", HDN

12шт.

STX375

1шт.

29

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

6шт.

STX375

1шт.

30

87419100

MOUNTING PLATE

, Start Serial: JEE0104557

1шт.

STX375

1шт.

31

430406A1

DRIVE

Fan

1шт.

STX375

1шт.

32

87305067

BRACKET, SUPPORTING

, Serial Range: -JEE0105346

1шт.
