Запчасти Case IH STX375 (02-05[02]) - AIR INDUCTION SYSTEM - QUADTRAC TRACTOR (02) - ENGINE

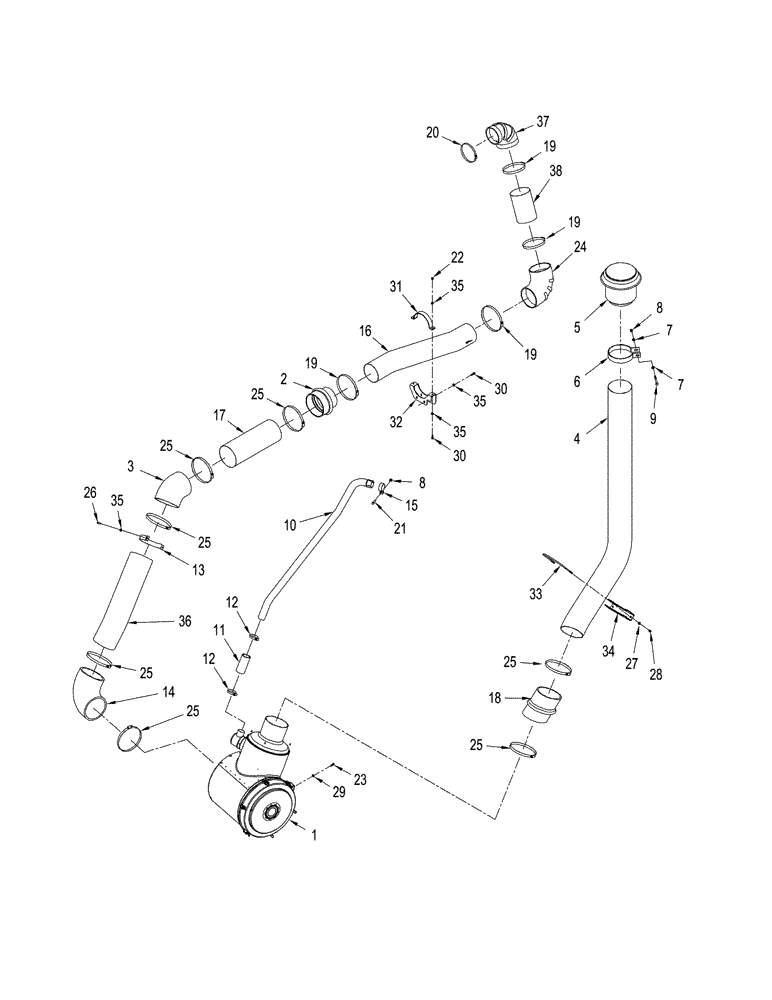

Схема запчастей Case IH STX375 - (02-05[02]) - AIR INDUCTION SYSTEM - QUADTRAC TRACTOR (02) - ENGINE
12
27
7
21
35
24
19
29
26
36
25
38
25
25
7
18
19
15
22
5
23
25
35
35
4
3
8
32
20
31
11
37
13
30
33
19
17
16
9
8
1
14
19
34
12
25
25
6
35
28
25
2
30
10

Артикул

Название

Примечание

Количество

1

418701A2

AIR CLEANER

See Figure 02-07

1шт.

1

87417039

AIR FILTER

See Figure 02-07

1шт.

STX500

1шт.

2

419137A1

ADAPTER

1шт.

3

419123A1

ELBOW

1шт.

4

419295A1

AIR INTAKE TUBE

Intake

1шт.

5

358127A1

CAP

Air Intake, Inc. 6, Serial Range: -JEE0104001

1шт.

5

87412343

AIR PRE-CLEANER ASSY

Cap, Inc. 6, Start Serial: JEE0104001

1шт.

6

357942A2

CLAMP

, Serial Range: -JEE0104001

2шт.

6

324466A1

CLAMP

, Start Serial: JEE0104001

1шт.

7

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

8

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

9

827-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 10.9

2шт.

10

419317A2

TUBE

Aspirator, Serial Range: -JEE0104001

1шт.

10

87430645

TUBE,2" OD

Aspirator, Start Serial: JEE0104001

1шт.

Used with 10" Muffler Applications

1шт.

10

87627626

TUBE,47.5 mm ID x 51.44 mm OD

Aspirator

1шт.

STX500

1шт.

Used with 12" Muffler Applications

1шт.

11

313949A3

HOSE

1шт.

12

214-1436

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

13

430515A1

BRACKET

1шт.

14

419331A1

ELBOW

, Serial Range: -JEE0104792

1шт.

14

87418233

ELBOW

, Start Serial: JEE0104792

1шт.

15

434180A1

CLAMP

1шт.

16

400876A1

AIR INTAKE TUBE

Air Intake

1шт.

17

419312A1

TUBE

1шт.

18

419334A1

ELBOW

1шт.

19

214-32112

HOSE CLAMP,6-1/4" - 7-1/8", HD Worm, W/ Liner

4шт.

20

214-3296

HOSE CLAMP,5-1/4" - 6-1/8", HD Worm, W/ Liner

1шт.

21

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

1шт.

22

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

23

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

24

434176A1

ELBOW

Rubber

1шт.

25

214-32128

HOSE CLAMP,7-1/4" - 8-1/8", HD Worm, W/ Liner

7шт.

26

87026277

BOLT,Hex, M8 x 30mm, Cl 10.9, Full Thd

M8 x 25; 10.9

2шт.

27

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

2шт.

28

231-1445

NUT,5/16"-18, GB

2шт.

29

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

6шт.

30

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

31

385744A1

BRACKET

1шт.

32

385746A1

BRACKET

1шт.

33

385747A1

U-BOLT

BOLT "U"

2шт.

34

419322A1

BRACKET

1шт.

35

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.

36

419303A1

AIR INTAKE TUBE

Air Cleaner Intake

1шт.

37

434179A1

ELBOW

90, Reducing, Serial Range: -JEE0104792

1шт.

37

87418236

ELBOW

90, Reducing, Start Serial: JEE0104792

1шт.

38

400875A1

AIR INTAKE TUBE

Intake

1шт.

Выбрано товаров: 49
