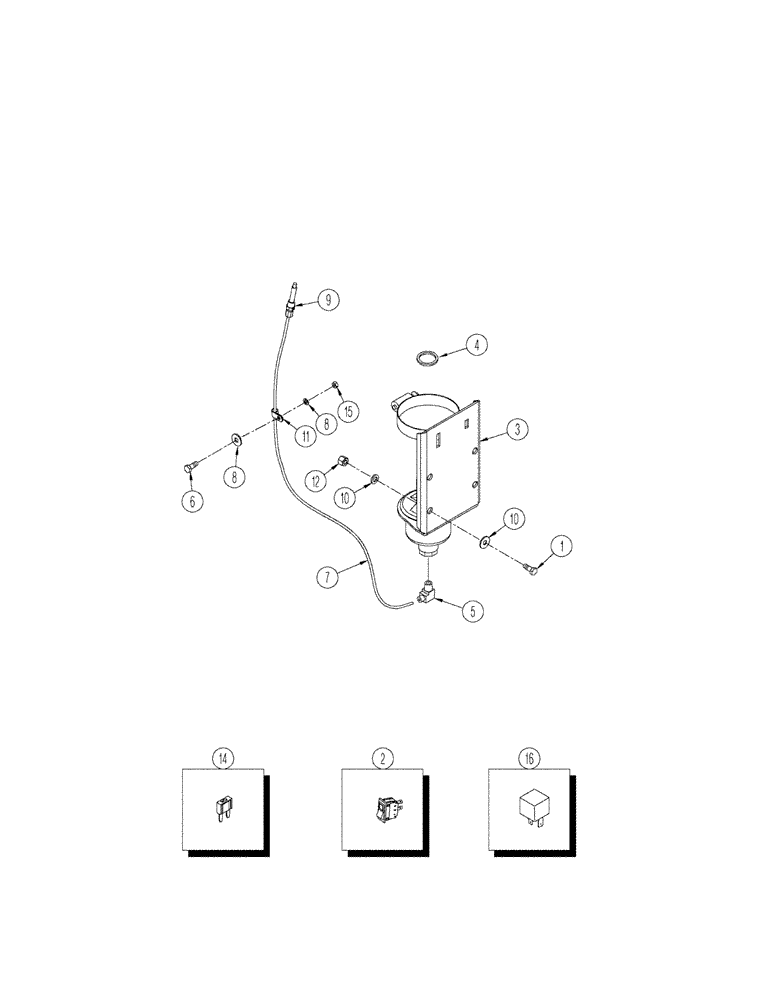

Запчасти Case IH STX375 (02-04) - ETHER START SYSTEM (02) - ENGINE

1

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

4шт.

2

229364A1

SWITCH

Rocker, Ether Start

1шт.

392355A1

SOLENOID VALVE

Electrical, Inc. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

Valve, Control

1шт.

4

392377A1

GASKET

1шт.

5

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

1/8 tube OD

1шт.

6

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

1шт.

7

428197A1

HOSE,1.60 mm ID x 670.00 mm

1шт.

8

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

9

339866A2

NOZZLE INJECTION

Atomizer

1шт.

10

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

8шт.

11

515-2179

CLAMP,5/16", Insul, 1/4" Bolt

3,2 mm

2шт.

12

829-1406

NUT,Hex, M6 x 1, Cl 10.9

M6; 10.9

7шт.

13

515-2379

CLAMP,5/16", Insul, 3/8" Bolt

(7.9 mm), Ether Start Harness, Not Illustrated

1шт.

14

121412A1

FUSE,10A, Mini, Red

1шт.

15

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

16

87414866

RELAY,12V, 20A

20 amp

1шт.

17

358878A2

HARNESS

Ether Start, Not Illustrated

1шт.

438262A1

KIT

Ether Start, Inc. 1 - 17

1шт.
