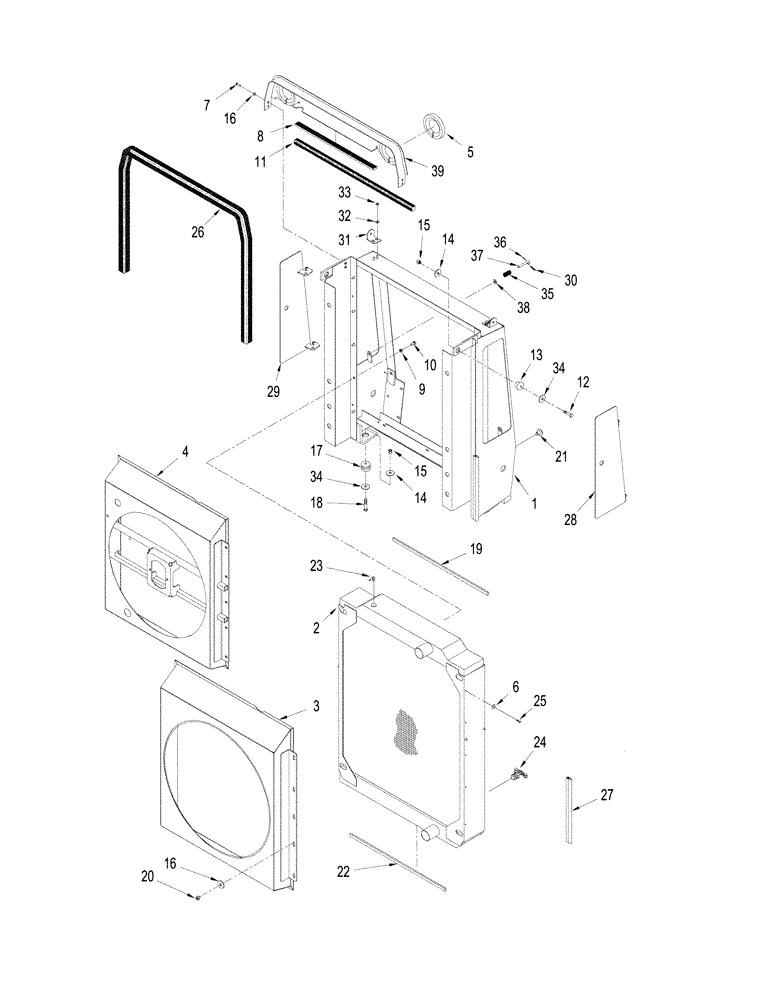

Запчасти Case IH STX375 (02-02[01]) - RADIATOR MOUNTING AND FAN SHROUD, BSN JEE0100106 (02) - ENGINE

1

414481A2

FRAME

1шт.

2

294025A2

RADIATOR

1шт.

3

414785A1

SHROUD

1шт.

STX375

1шт.

4

429325A1

SHROUD

1шт.

STX425

1шт.

STX450

1шт.

5

328196A1

SEAL

434 mm (17 in), Bulb, Cut From 90-2894T1

2шт.

6

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

10шт.

7

627-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

4шт.

8

328197A1

SEAL

1шт.

9

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

10шт.

10

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

10шт.

11

320126A1

SEAL

1шт.

12

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

2шт.

13

CASL13142

BUSHING

2шт.

14

19-961

WASHER,17/32" x 1 1/2" x 1/8"

13,5 x 44,5 x 3 mm

2шт.

15

832-10412

NUT,M12 x 1.75, Cl 8

4шт.

16

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

17

435465A1

RUBBER MOUNTING

2шт.

18

827-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

2шт.

19

320992A1

SEAL

1шт.

20

832-10408

NUT,M8 x 1.25, Cl 8.8

10шт.

21

353-422

PLUG,Dome, 1.250" hole, Nylon

1-3/4 in

2шт.

22

434023A1

SEALING STRIP,76mm W x 954mm L x 70mm Thk

1шт.

23

217-292

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/8" Male NPTF

1шт.

24

217-92

COCK

1/4

1шт.

25

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

10шт.

26

318842A1

SEAL

Cut From L107724

1шт.

27

320990A1

SEAL

Cut From F43117X

2шт.

28

380778A4

DOOR

Right-Hand

1шт.

29

380779A4

DOOR

Left-Hand

1шт.

30

19-5380

PIN

2шт.

31

361250A1

BRACKET

2шт.

32

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

33

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

34

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

35

L129280

SPRING

2шт.

36

38-3816

PIN,1/8" x 1", Coiled

2шт.

37

381794A1

ROD

2шт.

38

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

39

328193A2

SEAL

1шт.
