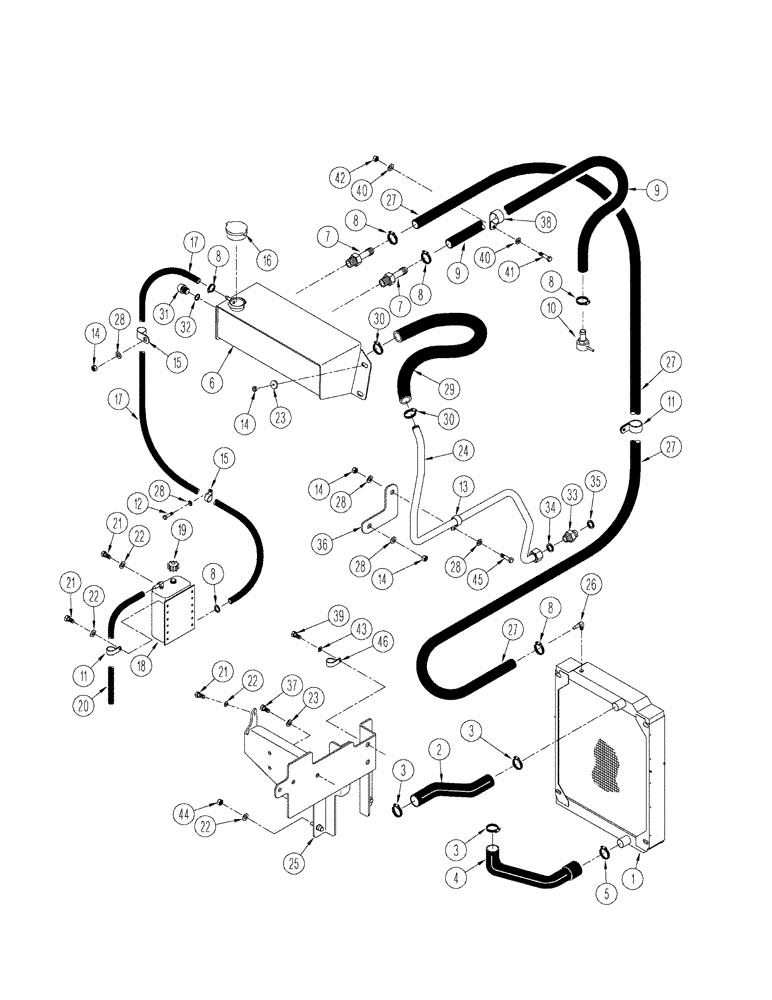

Запчасти Case IH STX375 (02-01) - RADIATOR HOSES AND TUBES (02) - ENGINE

1

294025A2

RADIATOR

1шт.

1

87416960

RADIATOR

1шт.

STX500

1шт.

2

401385A3

RADIATOR HOSE,64.40 mm ID x 536.00 mm, SAE J20, SAE 20R4, CLASS D1

Upper

1шт.

3

L115548

CLAMP,57.15mm - 79.38mm

3шт.

4

346351A1

HOSE,63.50 mm ID, 76.20 mm ID x 697.00 mm, SAE J20, SAE 20R4 CLASS D1

Lower

1шт.

5

L115549

CLAMP,69.85mm - 92.08mm

1шт.

6

391667A2

TANK

Surge

1шт.

7

217-120

ELBOW,1/4" Hose Barb x 1/8" Male NPTF

Hose Stem

2шт.

8

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

6шт.

9

31-1442

HOSE,0.25" ID x 28.00"

711 mm (28 in), Surge Tank, Cut From 31-1182

1шт.

10

293823A2

FITTING

1шт.

11

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

3шт.

12

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

5шт.

13

515-25254

CLAMP,1", Insul, 1/2" Bolt

2шт.

14

829-1410

NUT,M10 x 1.5, Cl 10.9

5шт.

15

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

4шт.

16

90-7731T1

CAP

1шт.

17

427139A1

HOSE,7.90 mm ID x 2464.00 mm

Cut From 31-2855

1шт.

18

90-7717T2

RESERVOIR

Coolant Recovery

1шт.

19

238903A1

FILLER CAP

1шт.

20

31-3065

HOSE,0.28" ID x 16.00"

203 mm (8 in), Overflow, Cut From 87769CX

1шт.

21

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

22

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

23

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

6шт.

24

413507A1

TUBE

Coolant Fill

1шт.

25

430257A1

SUPPORT

Bracket, Serial Range: -JEE0104001

1шт.

25

87431244

BRACKET

Support, Start Serial: JEE0104001

1шт.

26

217-292

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/8" Male NPTF

1шт.

27

366662A1

FLEXIBLE HOSE,0.25" ID x 47.50"

1206 mm (47-1/2 in), Cut From 31-1182

1шт.

28

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

29

413510A1

HOSE

146 mm (5-34 in), Coolant Fill, Cut From 31-1502T1

1шт.

30

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

2шт.

31

406721A1

GAUGE

1/2", Level Indicator, Inc. 32, Serial Range: -JEE0106294

1шт.

32

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

33

700-166

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M27 x 2 Male ORB

M27 x 25 fcsl, Incl. 34, 35

1шт.

34

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

35

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

36

413537A1

BRACKET

1шт.

37

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

38

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

1шт.

39

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.

40

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

2шт.

41

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

1шт.

42

829-1412

NUT,M12, Cl 10.9

1шт.

43

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

44

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

45

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

46

515-25143

CLAMP,9/16", Insul, 1/2" Bolt

1шт.
