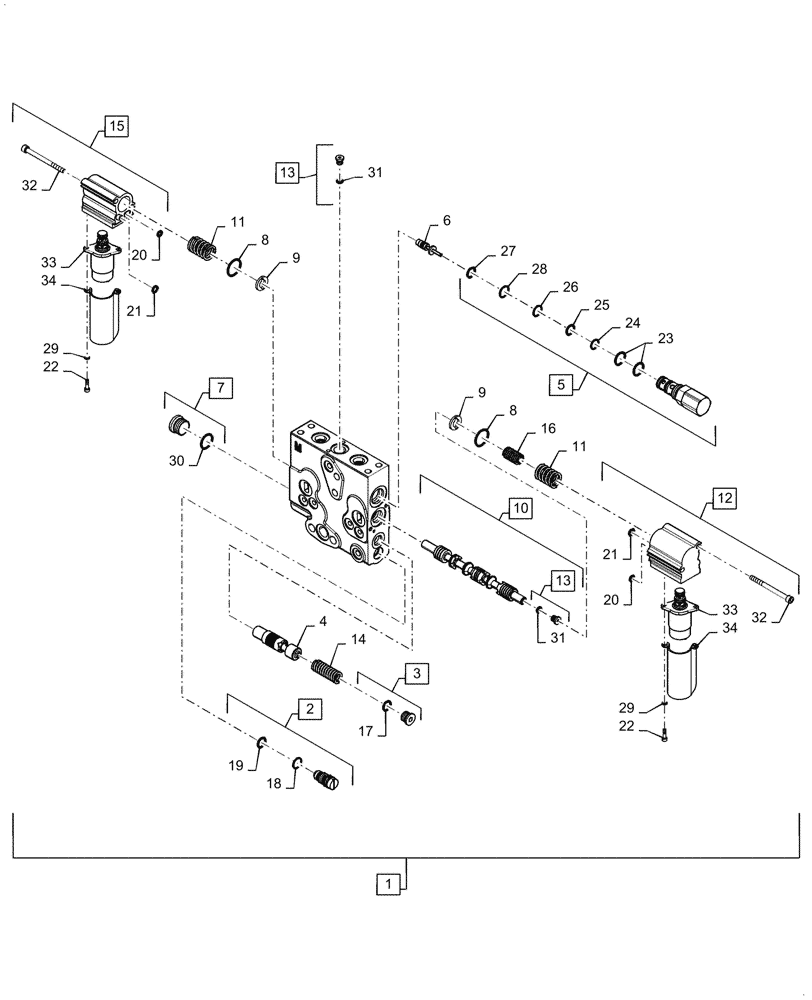

Запчасти Case IH STX375 (35.600.032) - TWIN FLOW HYDRAULIC, MAIN AUXILIARY VALVE (35) - HYDRAULIC SYSTEMS
№
Артикул
Название
Примечание
Количество
1
447808A2
PILOT VALVE
Main, Assy, Incl 2 - 34
1шт.
2
1542563C1
KIT
Valve Assy, Logic Check, Incl 18, 19
1шт.
3
218-5209
PLUG,Hex, 9/16"-18 ORB
Incl 17
1шт.
4
292321A2
SPOOL
Pressure
1шт.
5
278550A2
CHECK VALVE
Assy, Incl 23 - 28
1шт.
6
1957907C1
PISTON ASSY
Load Check
1шт.
7
218-5211
PLUG,Hex Soc, 7/8"-14 ORB
Incl 30
1шт.
8
238-5120
O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro
2шт.
9
436518A1
WASHER,11.45mm ID x 22.5mm OD x 3mm Thk
2шт.
10
87410063
SPOOL
Main, EH, Pilot, Incl 13, 31
1шт.
11
87706278
COMPRESSION SPRING
Return, Outer
2шт.
12
87354472
PILOT VALVE
EH, Incl 20 - 22, 29, 32 - 34
1шт.
13
218-5205
PLUG,Hex Soc, 5/16"-24 ORB
Incl 31
2шт.
14
301973A1
SPRING
EH Aux
1шт.
15
87354471
PILOT VALVE
EH, Incl 20 - 22, 29, 32 - 34
1шт.
16
87336153
SPRING
Inner Float
1шт.
18
G108723
RING,14.34mm ID x 16.94mm OD x 1.32mm Thk
1шт.
19
238-6015
O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro
1шт.
20
238-5011
O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro
2шт.
21
238-5012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro
2шт.
22
864-4016
HEX SOC SCREW,M4 x 16mm, Cl 8.8
4шт.
23
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
24
G108727
BACK-UP RING,13.27mm ID x 15.87mm OD x 1.32mm Thk
1шт.
25
238-6016
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
1шт.
26
G103862
BACK-UP RING,15.77mm ID x 18.67mm OD x 1.32mm Thk
1шт.
27
238-6015
O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro
1шт.
28
G108723
RING,14.34mm ID x 16.94mm OD x 1.32mm Thk
1шт.
29
892-11004
LOCK WASHER,M4
4шт.
32
864-6075
HEX SOC SCREW,M6 x 75mm, Cl 8.8
4шт.
34
353830A1
GUARD
Solenoid Proector
2шт.
Выбрано товаров: 34
