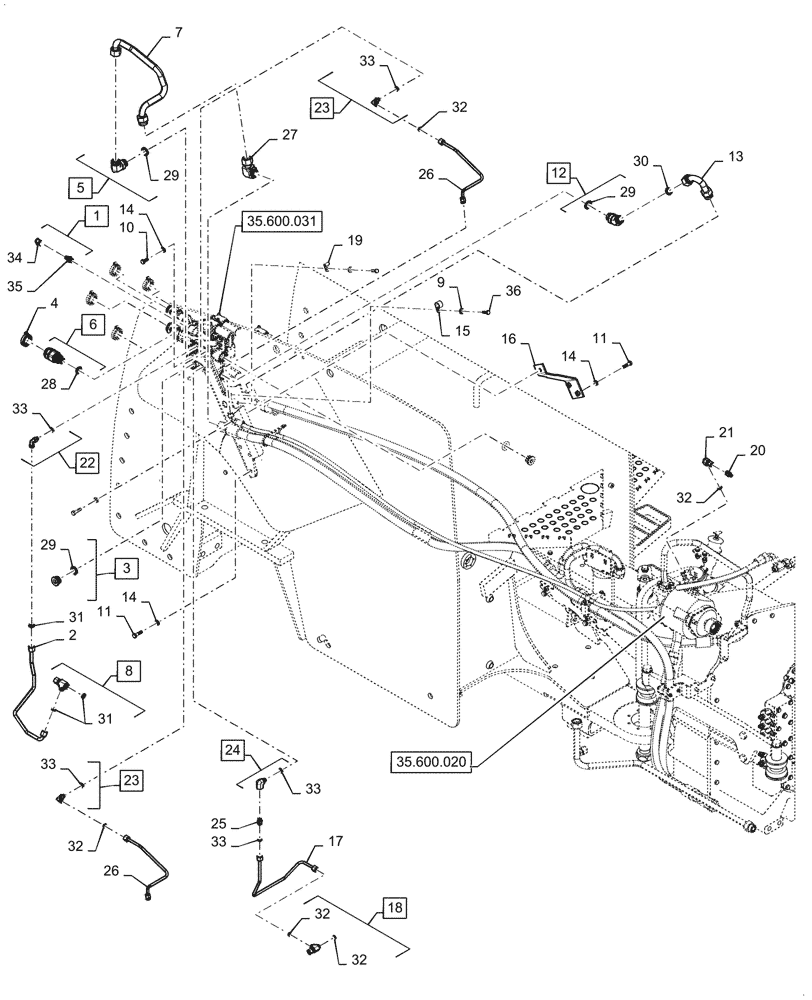

Запчасти Case IH STX375 (35.600.030) - TWIN FLOW HYDRAULICS LINES (35) - HYDRAULIC SYSTEMS

1

358968A1

FITTING

Diagnostic, Incl 34, 35

1шт.

2

445701A1

TUBE

Assy, Pilot Drain Port to Aux Valve Pilot Return Port

1шт.

3

221527A1

PLUG,Hex Soc, M33 x 2, ORB

Incl 29

2шт.

4

334216A1

CAP

3/4" OD, Dust

5шт.

5

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl 29

1шт.

6

298291A1

COUPLING, QUICK, FEM,Assembly, 3/4"

Incl 28

1шт.

7

441946A1

TUBE

Assy

1шт.

8

701-416

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl 31

1шт.

9

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

10

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

1шт.

11

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

8шт.

12

700-318

ELBOW,45 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl 29

1шт.

13

429941A2

TUBE

Assy

1шт.

14

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

9шт.

15

515-23254

CLAMP,1", Insul, 3/8" Bolt

1шт.

16

429731A1

GUSSET

Support

1шт.

17

430536A1

TUBE

Assy

1шт.

18

701-422

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl 32

1шт.

19

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

1шт.

20

1957867C1

FILTER SCREEN

3/8" ORFS x 1/4" ORB

1шт.

21

701-319

ELBOW,90° Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

1шт.

22

700-332

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 33

1шт.

23

700-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 33

1шт.

24

428078A1

ELBOW

Incl 33

1шт.

25

334923A1

HYD CONNECTOR,M14 x 1.5 ORB x 11/16" - 16 ORFS

Pump Screen, 45 GPM

1шт.

26

441944A1

TUBE

Assy

1шт.

27

701-339

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 16 Female ORFS

1шт.

28

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

29

86598104

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

4шт.

30

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

31

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

32

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

4шт.

33

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

4шт.

34

86502604

DUST CAP

Diagnostic Fitting

1шт.

35

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

36

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.
