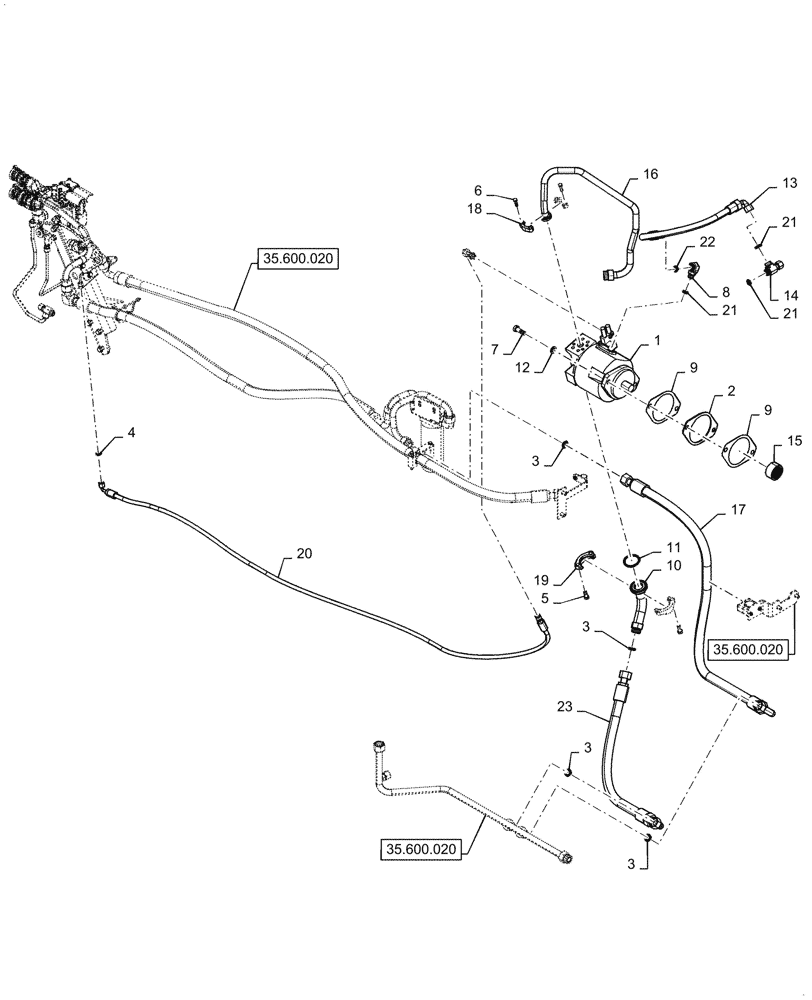

Запчасти Case IH STX375 (35.600.010) - TWIN FLOW HYDRAULICS PUMP (35) - HYDRAULIC SYSTEMS

1

407476A1

HYDRAULIC PUMP

Twin Flow, Implement

1шт.

2

86991869

SPACER

Plate

1шт.

3

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.

4

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

5

426-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

4шт.

6

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

4шт.

7

627-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 10.9, Full Thd

2шт.

8

201-306

90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

1шт.

9

D53692

GASKET,0.79mm Thk

2шт.

10

414077A1

TUBE

Assy

1шт.

11

238-6228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

1шт.

12

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

13

431461A1

HOSE ASSY.

Pump Case Drain Port to Tank Return Tube

1шт.

14

701-433

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x 1" - 14 Female ORFS

Incl 21

1шт.

15

432675A1

COUPLING

Mega Flow Pump

1шт.

16

87576188

TUBE,24.5 mm OD

Pump Pressure

1шт.

17

414464A1

HOSE

Filter Return Tube to Axle Lube Piston Supply

1шт.

18

A12306

FLANGE

Split, 2"

2шт.

19

A14141

FLANGE

Split, 1"

2шт.

20

414855A1

HOSE

Pump Compensator Fitting to Valve Load Sense Tube

1шт.

21

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

22

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

23

414196A1

HOSE,25.4mm ID x 825mm L

Axle Lube Piston Supply to Pump Suction

1шт.
