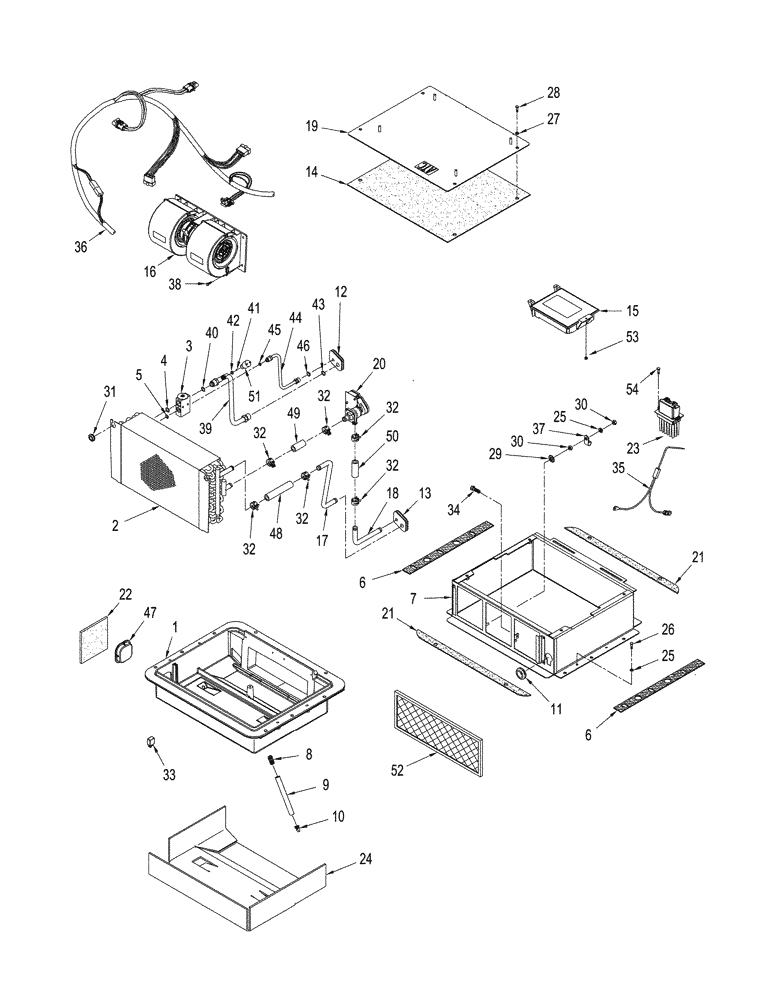

Запчасти Case IH STX375 (09-48[01]) - AIR CONDITIONING - CLIMATE CONTROL UNIT, WITH AUTO TEMP CONTROL, ASN JEE0106701 (09) - CHASSIS

87441018

AIR CONDITIONER

Inc. 1 - 53

1шт.

1

322996A1

BOX

1шт.

2

86990262

CORE

Evaporator and Heater

1шт.

3

386535A1

VALVE

Expansion

1шт.

4

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16

1шт.

5

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

7/16 ID x 1/16

1шт.

6

322994A1

GASKET,3mm Thk

4шт.

7

87306776

CASE ASSY.

1шт.

8

1250522C3

FITTING

2шт.

9

1977334C1

HOSE

610 mm (24-1/8 in), Cut From 198091C1

2шт.

10

109239C2

CHECK VALVE

2шт.

11

248-2381

GROMMET,1" ID x 1 3/8" Groove Dia

1шт.

12

322989A1

GROMMET

1шт.

13

322990A1

GROMMET

1шт.

14

87324951

GASKET,3mm Thk

1шт.

15

87447392

CONTROL

12V, Blower Motor

1шт.

16

323610A1

BLOWER

1шт.

84222524R

REMAN-BLOWER

STX375, STX425, STX450, STX500 ALL AFTER S/N JEE0099501, Reman for New P/N 323610A1

1шт.

84222524C

CORE-BLOWER

Return Number

1шт.

17

322985A1

HEATER TUBE

Outlet

1шт.

18

322987A1

HEATER TUBE,0.625" OD, 138.2, 79.2 mm Length

Inlet

1шт.

19

87306495

COVER

1шт.

20

427356A1

CONTROL VALVE

1шт.

21

322995A1

GASKET,3mm Thk

4шт.

22

87306773

FOAM INSULATION

1шт.

23

87306706

TERMINAL CONNECTOR

Linear Blower

1шт.

24

324484A1

INSULATOR

1шт.

25

892-11006

LOCK WASHER,M6

5шт.

26

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

4шт.

27

892-11008

LOCK WASHER,8mm ID

4шт.

28

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

29

493-81002

LOCK WASHER,Ext-Int Tooth, 1/4"

1шт.

30

829-1406

NUT,Hex, M6 x 1, Cl 10.9

M6; 10.9

3шт.

31

248-1243

GROMMET,1/2" ID x 13/16" Groove Dia, Diag Cut

2шт.

32

1954736C1

HOSE CLAMP,#24

6шт.

33

105849A1

RELAY

20 amp

1шт.

34

87454442

SENSOR

Thermister

1шт.

35

323016A1

SENSOR

1шт.

36

87454441

WIRE HARNESS

1шт.

37

515-21127

CLAMP,1/2", Insul, 1/4" Bolt

2шт.

38

281-14512

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/4"

4шт.

39

322839A1

TUBE,16mm OD, 211.5, 159.8mm Length

Suction, Inc. 40 - 42

1шт.

40

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16

1шт.

41

1250594C2

CORE

Evaporator / Heater

1шт.

42

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16

1шт.

43

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

1шт.

44

322840A1

TUBE,10mm OD, 158.4, 163.9mm L

Liquid, Inc. 45, 46

1шт.

45

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16

1шт.

46

NSS

NOT SOLD SEPARAT

1шт.

47

368313A1

PLASTIC PLUG

1шт.

48

1321290C2

HEATER HOSE,15.50 mm ID x 127.00 mm

Cut From 97252CX

1шт.

49

324022A1

HEATER HOSE,15.50 mm ID x 54.00 mm

Cut from 97252CX

1шт.

50

324023A1

HEATER HOSE,15.50 mm ID x 64.00 mm

Cut from 97252CX

1шт.

51

284272A3

SWITCH, A/C LOW PRES

1шт.

52

87409377

FILTER

Recirculated Air

1шт.

53

832-46404

NUT,M4 x .7, Cl 8

1шт.

54

280-1448

SELF-TAP SCREW,Hex Wash Hd, #8 x 1/2"

2шт.
