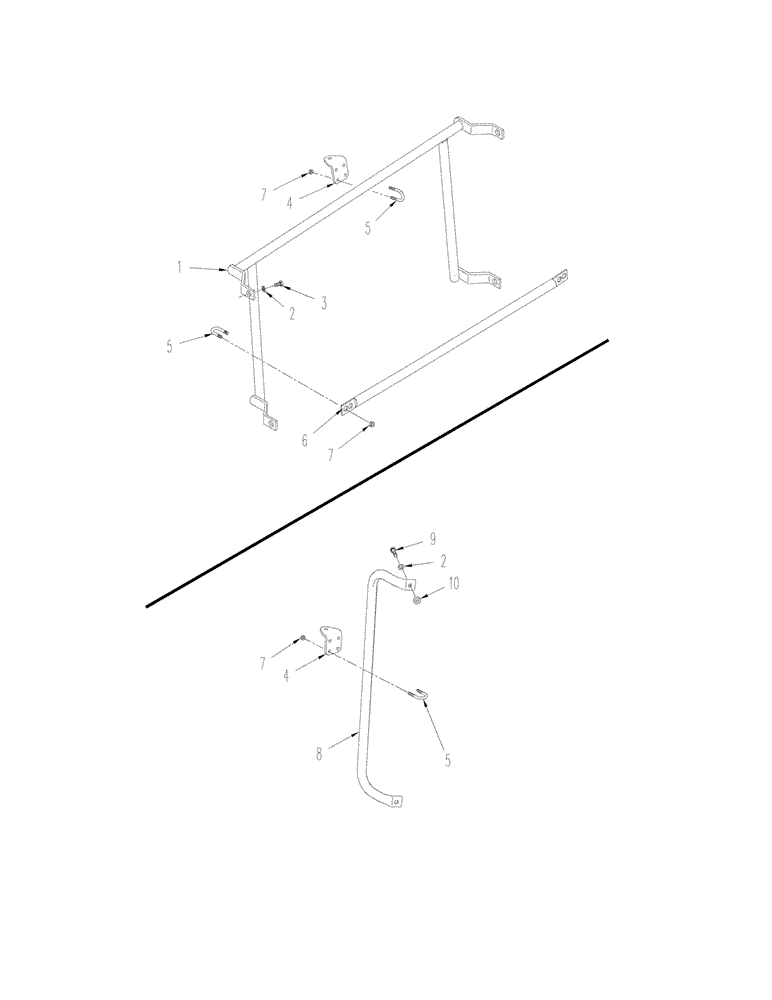

Запчасти Case IH STX375 (09-30) - MONITOR MOUNTING (09) - CHASSIS

1

409391A1

BRACKET

Monitor, Right-Hand Window

1шт.

2

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

3

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

4

87530660

BRACKET

Angle

3шт.

5

87526197

U-BOLT,1/4" - 20 x 1", Round, 1-1/8" W, 2" L

1/4 in, Inc. Nut

4шт.

6

443908A1

TUBE

1шт.

7

425-104

NUT,1/4"-20, Cl 5

12шт.

8

369275A1

TUBE

Monitor

1шт.

9

827-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

2шт.

10

371838A1

SPACER,9.5mm ID x 19.1mm OD x 10mm Thk

2шт.
