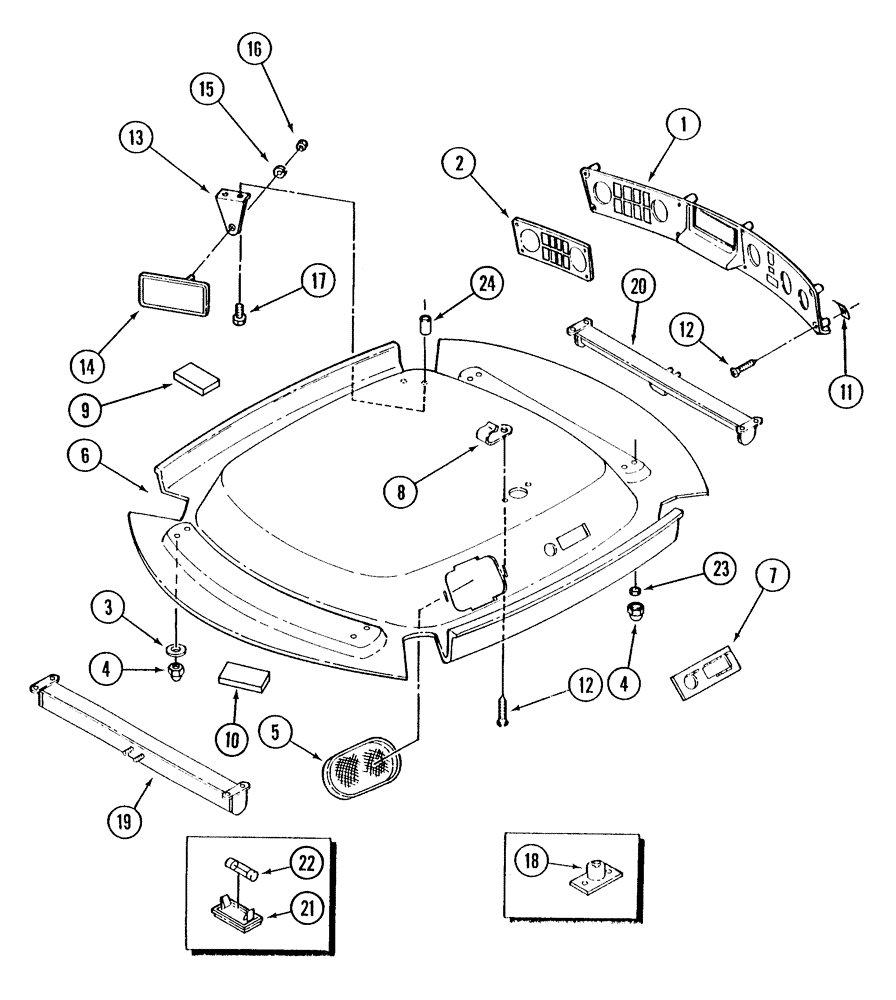

Запчасти Case IH STX375 (09-19) - CAB - HEADLINER AND CONTROL PANEL, STANDARD CAB (09) - CHASSIS

1

431228A1

PANEL

Control

1шт.

2

431230A1

DECAL

Light Panel, See Figure 09-59

1шт.

3

297865A1

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

9 x 20 x 1,6 mm

4шт.

4

834-502

CROWN NUT,Crown, M6, Cl8

8шт.

5

358683A1

GRILLE

Speaker

2шт.

359617A2

PANEL

Inc. 6 - 10

1шт.

6

NSS

NOT SOLD SEPARAT

Headliner

1шт.

7

305485A2

RETAINER

Domelight

1шт.

8

302862A1

SPRING NUT,4.2 Thread

2шт.

9

328037A1

PAD

1шт.

10

328039A1

PAD

3шт.

11

177269A1

SPRING NUT,M4.2

8шт.

12

1270741C1

SELF-TAP SCREW,Cross Pan Hd, #8 x 1"

10шт.

13

64-086T3

BRACKET

Mirror

1шт.

14

A177462

MIRROR

Rear View, Inc. 15, 16

1шт.

15

493-41026

LOCK WASHER,Ext Tooth, 1/4"

1шт.

16

19-5565

LOCK NUT,1/4"-28, GB

1шт.

17

555-12

BOLT,Hvy Hex, M6 x 30mm, Cl 10.9

2шт.

18

83882C91

LAMP

Courtesy

1шт.

19

87450400

VISOR, SUN

Rear

1шт.

20

246324A1

VISOR, SUN

Front

1шт.

21

1983391C1

LAMP,12V, 10W

Inc. 22

1шт.

22

E35556

BULB,12V, 10W

1шт.

23

895-30106

WASHER,M6 x 18 x 1.6

4шт.

24

2-3010T1

SPACER

2шт.
