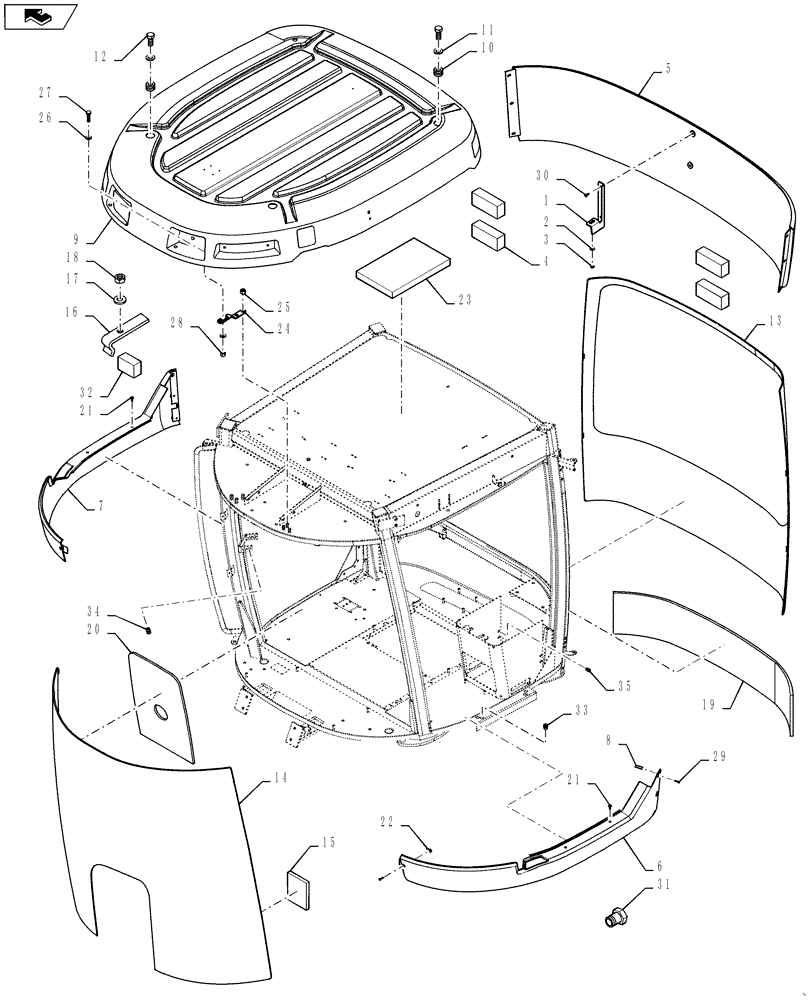

Запчасти Case IH STX375 (09-17) - CAB - SKIRTS AND GLASS (09) - CHASSIS

1

341574A4

BRACKET

1шт.

2

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

3

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

4

403325A1

FOAM

4шт.

5

87534631

SKIRT

Rear

1шт.

6

341234A2

SKIRT

Left-Hand

1шт.

6

357135A2

SKIRT

Left-Hand, With Lower Front Wiper

1шт.

7

341235A2

SKIRT

Right-Hand

1шт.

7

357132A2

SKIRT

Right-Hand, With Lower Front Wiper

1шт.

8

404287A1

INSERT,M6

4шт.

9

NSS

NOT SOLD SEPARAT

Roof Assy, See Figure 09-18

1шт.

10

361191A1

GROMMET

4шт.

11

896-15016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

4шт.

12

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

4шт.

13

181240A2

GLASS

Rear

1шт.

14

181241A3

GLASS

Windshield

1шт.

14

86991553

WINDSHIELD

Laminated (Europe Only)

1шт.

15

97268C1

SPACER

34шт.

16

117707A3

CLAMP

Window

7шт.

17

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

18

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

6шт.

19

259462A1

FOAM INSULATION

1525 mm (60 in)

1шт.

20

283531A1

FOAM INSULATION

1шт.

21

840-2820

SCREW,Pan, M8 x 20mm, Cl 4.8

Cl 4.8

4шт.

22

404882A1

SPRING NUT,M6

M6, Clip Nut

4шт.

23

355716A3

FOAM

1шт.

24

364156A1

BRACKET

Roof Support

4шт.

25

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

8шт.

26

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.

27

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

28

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

29

840-1625

SCREW,Pan, M6 x 25mm, Cl 4.8

4шт.

30

840-1620

SCREW,Pan, M6 x 20mm, Cl 4.8

2шт.

31

353-406

PLUG,Dome, .625" hole, Nylon

If Used

1шт.

32

87543673

SPACER

10шт.

33

408566A1

INSERT,M8

Knurled Open

7шт.

34

379540A1

INSERT,M8

Knurled Open

8шт.

35

404287A1

INSERT,M6

Knurled Open

10шт.
