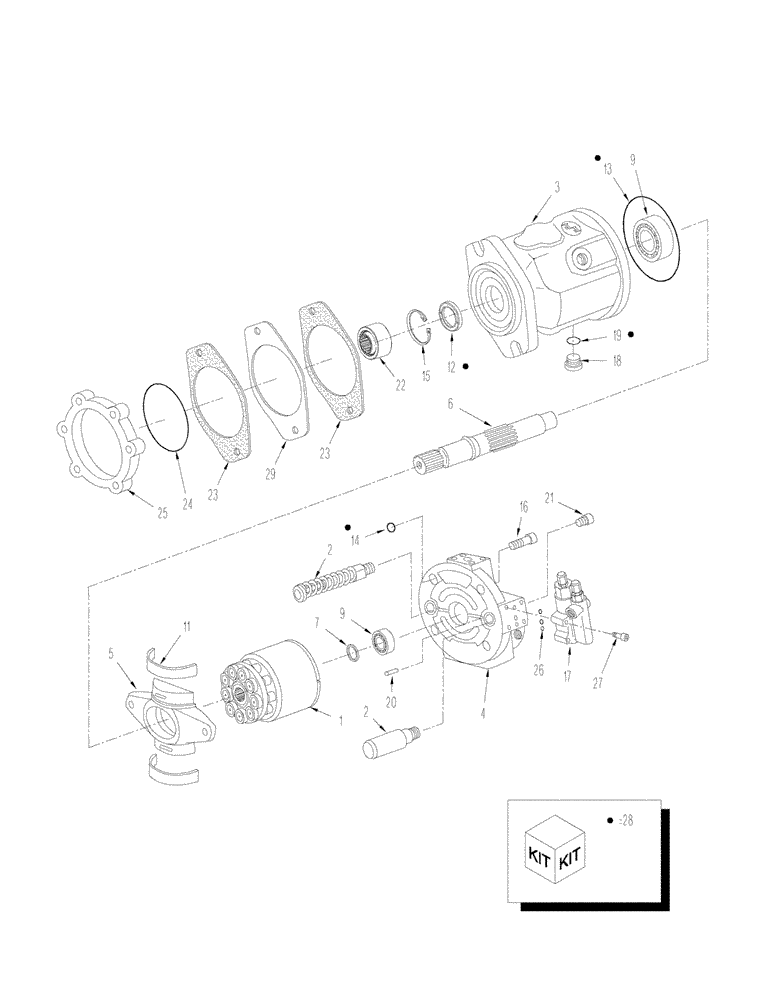

Запчасти Case IH STX375 (08-49) - MEGA FLOW HYDRAULIC PUMP ASSY (08) - HYDRAULICS

407476A1

HYDRAULIC PUMP

Inc. 1 - 22

1шт.

407476A1C

CORE-HYDRAULIC PUMP

1шт.

407476A1R

REMAN-HYD PUMP

1шт.

1

NSS

NOT SOLD SEPARAT

Cylinder Assy

1шт.

2

NSS

NOT SOLD SEPARAT

Piston Assy, Control

1шт.

3

NSS

NOT SOLD SEPARAT

Housing

1шт.

4

NSS

NOT SOLD SEPARAT

Block

1шт.

5

NSS

NOT SOLD SEPARAT

Plate, Swash

1шт.

6

NSS

NOT SOLD SEPARAT

Shaft

1шт.

7

NSS

NOT SOLD SEPARAT

Washer

1шт.

8

NSS

NOT SOLD SEPARAT

Spacer

1шт.

9

NSS

NOT SOLD SEPARAT

Bearing, Roller

1шт.

10

NSS

NOT SOLD SEPARAT

Bearing, Roller

1шт.

11

NSS

NOT SOLD SEPARAT

Support

2шт.

12

NSS

NOT SOLD SEPARAT

Seal

1шт.

13

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

14

NSS

NOT SOLD SEPARAT

O-Ring

4шт.

15

NSS

NOT SOLD SEPARAT

Ring, Snap

1шт.

16

NSS

NOT SOLD SEPARAT

Screw

4шт.

17

352875A2

VALVE

1шт.

18

NSS

NOT SOLD SEPARAT

Plug

1шт.

19

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

20

NSS

NOT SOLD SEPARAT

Pin

1шт.

21

NSS

NOT SOLD SEPARAT

Screw

2шт.

22

430337A1

COUPLING

1шт.

With Manual Shift Transmission

1шт.

22

432675A1

COUPLING

1шт.

With Power Shift Transmission

1шт.

23

D53692

GASKET,0.79mm Thk

2шт.

With Power Shift Transmission

1шт.

24

238-5256

O-RING,0.139" Thk x 5.734" ID, -256, Cl 5, 75 Duro

1шт.

25

414192A1

SPACER

Adapter

1шт.

With Manual Shift Transmission

1шт.

26

410995A1

O-RING,1.78mm Thk x 7.65mm ID, -11, 70 Duro

Control Valve

3шт.

27

412596A1

SCREW

4шт.

28

388293A1

SEAL KIT

1шт.

29

86991869

SPACER

1шт.

With Power Shift Transmission

1шт.
