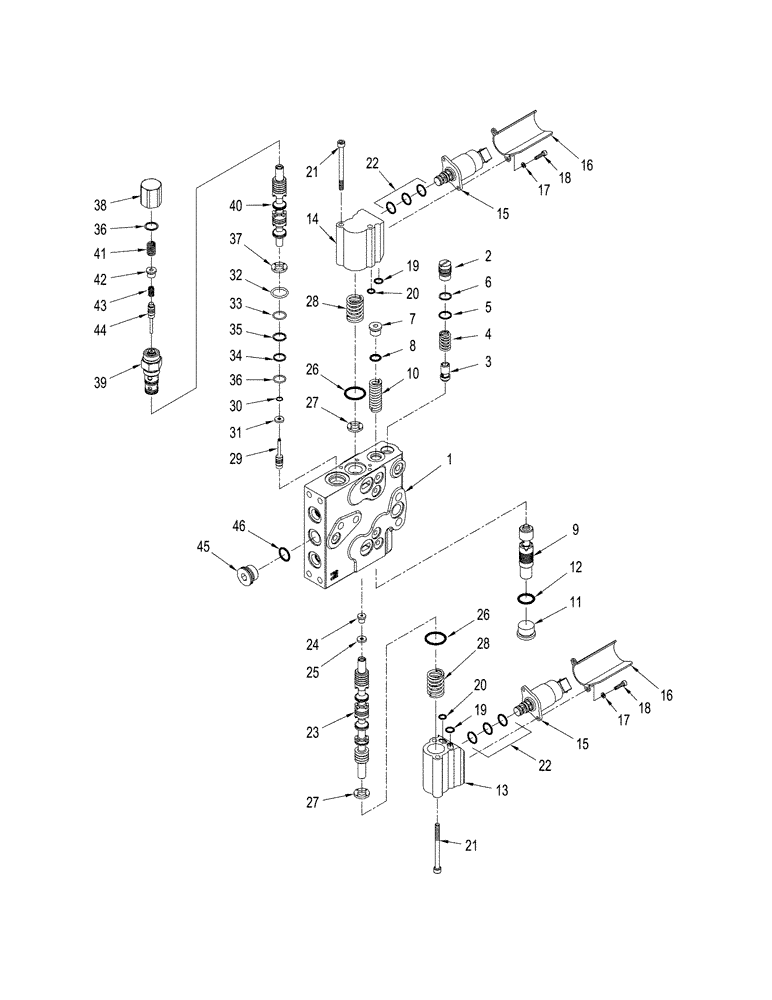

Запчасти Case IH STX375 (08-35) - MAIN AND AUXILIARY VALVE ASSEMBLY - ELECTRONIC CONTROLLED (08) - HYDRAULICS

292295A3

VALVE

Main Auxiliary, Inc. 1 - 46

1шт.

292295A3R

REMAN-HYD VALVE

STX375, STX425, STX450, STX500 all (AFTER S/N JEE0099501)

1шт.

292295A3C

CORE-VALVE HYD

Return Number

1шт.

393972A3

VALVE

Auxiliary, Left-Hand, Inc. 1 - 46

1шт.

393972A3R

REMAN-HYD VALVE

STX375, STX425, STX450, STX500 all (AFTER S/N JEE0099501)

1шт.

393972A3C

CORE-VALVE HYD

Return Number

1шт.

393973A3

VALVE

Auxiliary, Right-Hand, Inc. 1 - 46

1шт.

393973A3R

REMAN-HYD VALVE

STX375, STX425, STX450, STX500 ALL (AFTER S/N JEE0099501) BTW JEE0099501 & Z6F100023

1шт.

393973A3C

CORE-VALVE HYD

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

1542563C1

KIT

Logic, Inc. 2 - 6

1шт.

2

NSS

NOT SOLD SEPARAT

Plug

1шт.

3

1543329C1

VALVE POPPET,7mm ID x 13.8mm OD x 27mm L

1шт.

4

NSS

NOT SOLD SEPARAT

Spring

1шт.

5

G108723

RING,14.34mm ID x 16.94mm OD x 1.32mm Thk

1шт.

6

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

7

9625178

PLUG,9/16" - 18 ORB

3/8 orb, Incl. 8

1шт.

8

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

9

292321A2

SPOOL

1шт.

10

301973A1

SPRING

1шт.

11

86625138

PLUG,7/18" - 14

5/8 orb, Includes 12

1шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

87354471

PILOT VALVE

EH Pilot Block, Inc. 13, 15 - 22

1шт.

87354472

PILOT VALVE

Block, EH, Inc. 14 - 22

1шт.

13

NSS

NOT SOLD SEPARAT

Body, Valve, Lower

1шт.

14

NSS

NOT SOLD SEPARAT

Body, Valve, Upper

1шт.

15

278506A1

SOLENOID VALVE

Proprotional

1шт.

16

353830A1

GUARD

1шт.

17

892-11004

LOCK WASHER,M4

2шт.

18

864-4016

HEX SOC SCREW,M4 x 16mm, Cl 8.8

2шт.

19

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

3/8 ID x 1/2 Thk

1шт.

20

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

1шт.

21

864-6075

HEX SOC SCREW,M6 x 75mm, Cl 8.8

Socket, M6 x 75, CL8.8

2шт.

22

372228A1

SEAL

Kit

1шт.

23

87410063

SPOOL

1шт.

24

86632547

PLUG,Hex, 5/16"-24 ORB

1/8 or, Includes 25

1шт.

25

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

26

238-5120

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

2шт.

27

436518A1

WASHER,11.45mm ID x 22.5mm OD x 3mm Thk

Centering

2шт.

28

87411129

SPRING

Lower, Outer

2шт.

1957907C1

PISTON ASSY

Load Check, Inc. 29 - 31

1шт.

29

NSS

NOT SOLD SEPARAT

Piston

1шт.

30

NSS

NOT SOLD SEPARAT

Ring, Snap

1шт.

31

NSS

NOT SOLD SEPARAT

Washer

1шт.

278550A2

CHECK VALVE

Load, Inc. 32 - 44

1шт.

278550A2R

REMAN-HYD VALVE

STX375,STX245,STX500,STX450 ALL AFTER S/N JEE0099501

1шт.

278550A2C

CORE-VALVE HYD

Return Number

1шт.

32

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

33

G103862

BACK-UP RING,15.77mm ID x 18.67mm OD x 1.32mm Thk

1шт.

34

G108723

RING,14.34mm ID x 16.94mm OD x 1.32mm Thk

1шт.

35

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

36

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

37

G108727

BACK-UP RING,13.27mm ID x 15.87mm OD x 1.32mm Thk

1шт.

38

NSS

NOT SOLD SEPARAT

Cap

1шт.

39

NSS

NOT SOLD SEPARAT

Poppet

1шт.

40

NSS

NOT SOLD SEPARAT

Body, Poppet

1шт.

41

NSS

NOT SOLD SEPARAT

Spring

1шт.

42

1957964C1

RETAINER

Spring

1шт.

43

NSS

NOT SOLD SEPARAT

Spring

1шт.

44

NSS

NOT SOLD SEPARAT

Poppet

1шт.

45

86632547

PLUG,Hex, 5/16"-24 ORB

1/8" or, Includes 46

1шт.

46

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
