Запчасти Case IH STX375 (08-29) - HYDRAULIC REMOTE CONTROL VALVE (08) - HYDRAULICS

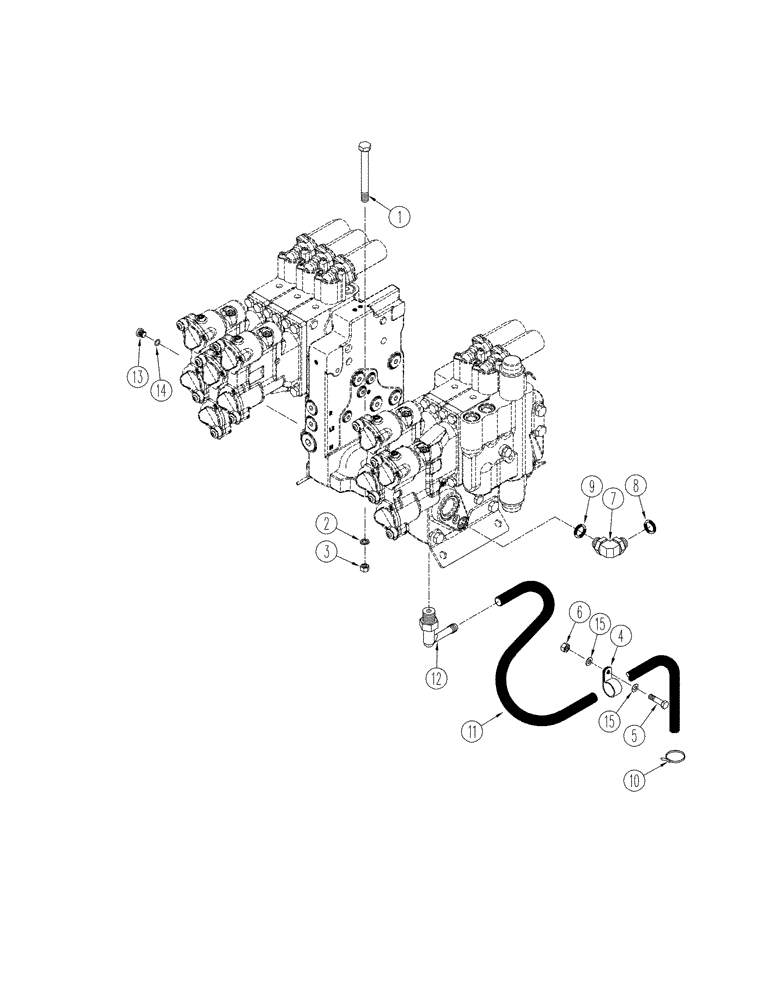

Схема запчастей Case IH STX375 - (08-29) - HYDRAULIC REMOTE CONTROL VALVE (08) - HYDRAULICS
15
13
3
6
15
11
9
8
5
10
14
1
7
4
12
2

Артикул

Название

Примечание

Количество

1

827-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9

2шт.

2

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

3

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

4

515-22254

CLAMP,1", Insul, 5/16" Bolt

2шт.

5

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

2шт.

6

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

7

700-332

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 8, 9

1шт.

8

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

9

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

10

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

2шт.

11

320374A1

HOSE

Drain, 925 mm ( 36 7/16 in.), Cut To Length From 31-1182 Bulk Hose

1шт.

12

1289481C1

ELBOW,1/8" NPT x 1/4" Hose Barb

1/4 stem x 1/8 PT

1шт.

13

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

Incl 14

1шт.

14

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

15

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

365947A1

KIT

Remote Valve, Five Stack, Incl 11, 12, See Figure 08-32

1шт.

292295A3R

REMAN-HYD VALVE

STX375, STX425, STX450, STX500 All (AFTER S/N JEE0099501), Reman For New P/N 365947A1

1шт.

292295A3C

CORE-VALVE HYD

Return Number

1шт.
