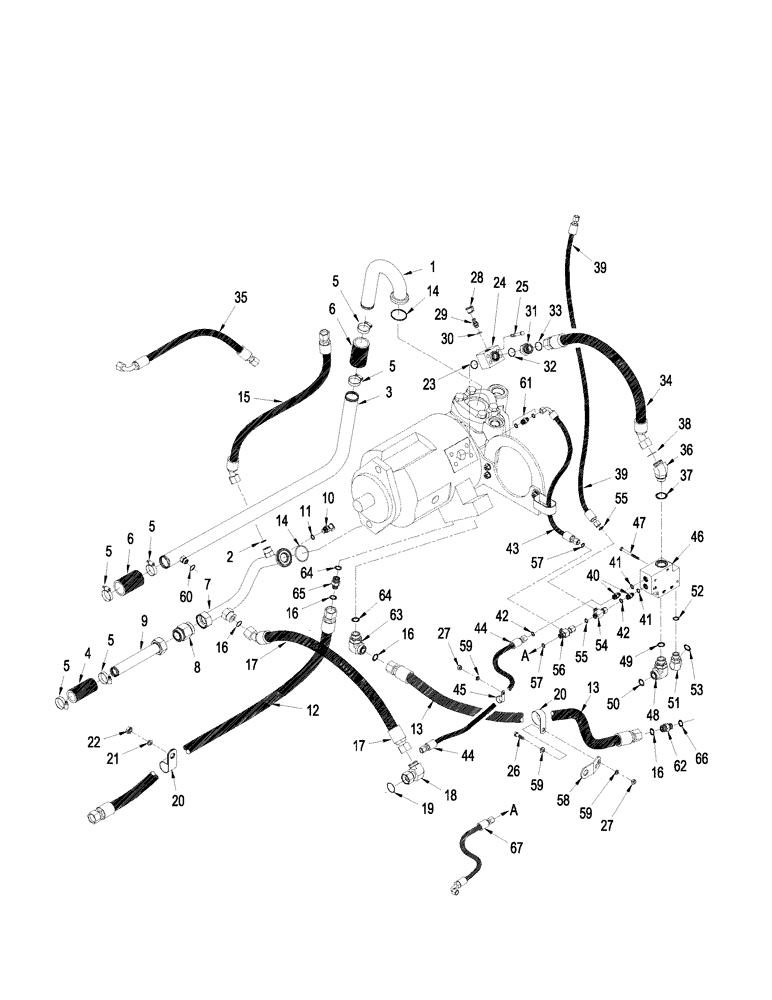

Запчасти Case IH STX375 (08-19) - STANDARD HYDRAULICS - PUMP LUBRICATION CIRCUIT, WITH MANUAL SHIFT TRANSMISSION (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
402484A1
TUBE
1шт.
2
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
1шт.
3
401617A3
TUBE
1шт.
4
1-4571
HOSE
114 mm (4-1/2 in)
1шт.
6
31-2427
HOSE,2.00" ID x 6.00"
102 mm (4 in), Cut From 1-4568
2шт.
7
401613A4
TUBE
1шт.
8
87411517
VALVE, CHECK
1-1/2
1шт.
9
401615A3
TUBE
1шт.
11
637-63153
O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro
1шт.
12
349499A1
HOSE ASSY.
1420 mm (56 in)
1шт.
13
403538A1
HOSE ASSY.
1816 mm (71 in), Gear Pump to RH Filter
1шт.
14
238-6228
O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro
2шт.
15
315576A1
HOSE ASSY.
935 mm (37 in)
1шт.
16
238-6021
O-RING,15/16 X 1 - 1/16, Cl 6
3шт.
17
335104A2
HOSE ASSY.
925 mm (36 in)
1шт.
17
437264A1S
HOSE ASSY.
925 mm (36-13/32 in)
1шт.
Arctic QUADTRAC Tractor Application
1шт.
18
701-339
ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 16 Female ORFS
Inc. 19
1шт.
19
238-6021
O-RING,15/16 X 1 - 1/16, Cl 6
1шт.
20
515-24349
CLAMP,1 3/8", Insul, 7/16" Bolt
3шт.
21
895-11008
WASHER,9mm ID x 16mm OD x 1.6mm Thk
11шт.
22
627-8030
BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd
1шт.
24
398274A2
BLOCK
1шт.
25
461-33844
HEX SOC SCREW,3/8"-16 x 2 3/4"
4шт.
26
627-10030
BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd
2шт.
27
829-1410
NUT,M10 x 1.5, Cl 10.9
3шт.
178889A1
DIAGNOSTIC COUPLER
Diagnostic, Inc. 28 - 30
1шт.
28
H434163
DUST CAP
1шт.
29
NSS
NOT SOLD SEPARAT
Fitting, Diagnostic
1шт.
30
637-63113
O-RING,2.2mm Thk x 11.3mm ID, Cl 6
1шт.
31
700-159
HYD CONNECTOR,1-7/16" - 12 Male ORFS x M22 x 1.5 Male ORB
Incl. 32, 33
1шт.
32
637-63193
O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro
1шт.
33
238-6021
O-RING,15/16 X 1 - 1/16, Cl 6
1шт.
34
315577A2
HOSE ASSY.,25.4mm ID x 800mm L
800 mm (31 in)
1шт.
35
327499A1
HOSE ASSY.
665 mm (26-1/2")
1шт.
36
700-318
ELBOW,45 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB
Inc. 37, 38
1шт.
37
637-64296
O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro
1шт.
38
238-6021
O-RING,15/16 X 1 - 1/16, Cl 6
1шт.
39
327459A1
HOSE ASSY.
1350 mm (53 in), Serial Range: -JEE0102661
1шт.
39
87415320
HOSE ASSY.
1350 mm (53 in), Start Serial: JEE0102661
1шт.
40
700-101
HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB
Inc. 41, 42
2шт.
41
637-63113
O-RING,2.2mm Thk x 11.3mm ID, Cl 6
1шт.
42
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
1шт.
43
315574A2
HOSE ASSY.
623 mm (24-1/2 in)
1шт.
44
397244A1
HOSE ASSY.
1105 mm (43-1/2 in)
1шт.
44
437292A1S
HOSE ASSY.
1105 mm (43-1/2 in)
1шт.
Arctic QUADTRAC Tractor Application
1шт.
45
515-23159
CLAMP,5/8", Insul, 3/8" Bolt
2шт.
46
363294A1
VALVE
Regulator, See Figure 08-23
1шт.
47
827-8090
BOLT,Hex, M8 x 1.25 x 90mm, Cl 10.9
2шт.
48
700-308
ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB
Inc. 49, 50
1шт.
49
637-64296
O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro
1шт.
50
238-6021
O-RING,15/16 X 1 - 1/16, Cl 6
1шт.
51
700-387
ELBOW,45 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB
M20 fc sl x 2,7 orb, Inc. 52, 53
1шт.
52
637-64236
O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro
1шт.
53
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
1шт.
54
701-422
TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS
Inc. 55
1шт.
55
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
2шт.
57
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
2шт.
58
406576A1
BRACKET
1шт.
59
895-11010
WASHER,11mm ID x 20mm OD x 2mm Thk
5шт.
61
1957867C1
FILTER SCREEN
With O-Rings
1шт.
62
700-105
HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB
Inc. 16 & 66
1шт.
63
201-308
ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB
Inc. 16 & 64
1шт.
65
201-105
HYD CONNECTOR,1-7/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB
Inc. 16 & 64
1шт.
66
637-64296
O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro
1шт.
67
433213A2
HOSE ASSY.,9.53mm ID x 4267mm L
Priority Valve to Remote Manifold Inlet, 4242 mm (167")
1шт.
Выбрано товаров: 73
