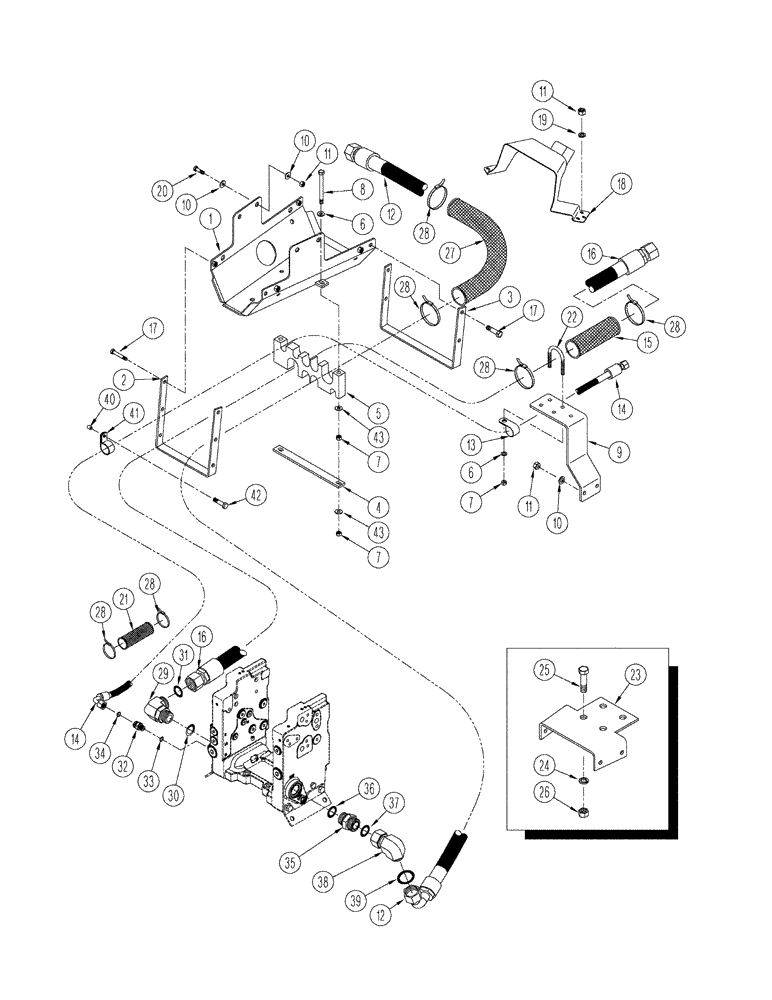

Запчасти Case IH STX375 (08-17) - HYDRAULIC REMOTE HOSES - MANUAL REMOTE, BSN JEE0102592 (08) - HYDRAULICS

1

433355A1

BRACKET

Hose

1шт.

2

405517A1

BRACKET

1шт.

3

405518A1

BRACKET

1шт.

4

363768A1

PLATE

1шт.

5

362419A1

CLAMP

1шт.

6

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

7

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

7шт.

8

627-8100

BOLT,Hex, M8 x 1.25 x 100mm, Cl 10.9, Full Thd

2шт.

9

405519A1

BRACKET

1шт.

10

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

10шт.

11

829-1410

NUT,M10 x 1.5, Cl 10.9

10шт.

12

360134A2

HOSE ASSY.,25.4mm ID x 3238mm L

3238 mm (127 in)

1шт.

13

515-23254

CLAMP,1", Insul, 3/8" Bolt

1шт.

14

433213A2

HOSE ASSY.,9.53mm ID x 4267mm L

4242 mm (167 in)

1шт.

15

S120426

TUBE

1шт.

16

360135A3

HOSE ASSY.

4153 mm (163-1/2 in)

1шт.

17

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

18

405521A1

SHIELD

1шт.

19

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

20

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

8шт.

21

387840A1

SLEEVE

1шт.

22

352892A1

U-BOLT

BOLT "U"

2шт.

23

404604A1

BRACKET

Mounting, PTO / Remote Hose Bracket

1шт.

24

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

25

614-16100

BOLT,Hex, M16 x 2 x 100mm, Cl 8.8, Full Thd

4шт.

26

829-1416

NUT,M16, Cl 10

4шт.

27

387840A1

SLEEVE

610 mm (24 in)

1шт.

28

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

6шт.

29

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Inc. 30, 31

1шт.

30

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

31

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

32

339487A2

HYD CONNECTOR

11/16 fc sl x 12 Or, Inc. 33, 34

1шт.

33

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

34

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

35

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

1-7/16 fc sl x 33 Or, Inc. 36, 37

1шт.

36

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

37

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

38

311834A1

ELBOW

1-7/16 fc sl x swl, with Side Port, Inc. 39

1шт.

39

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

40

371838A1

SPACER,9.5mm ID x 19.1mm OD x 10mm Thk

1шт.

41

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

1шт.

42

827-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 10.9

1шт.

43

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

5шт.
