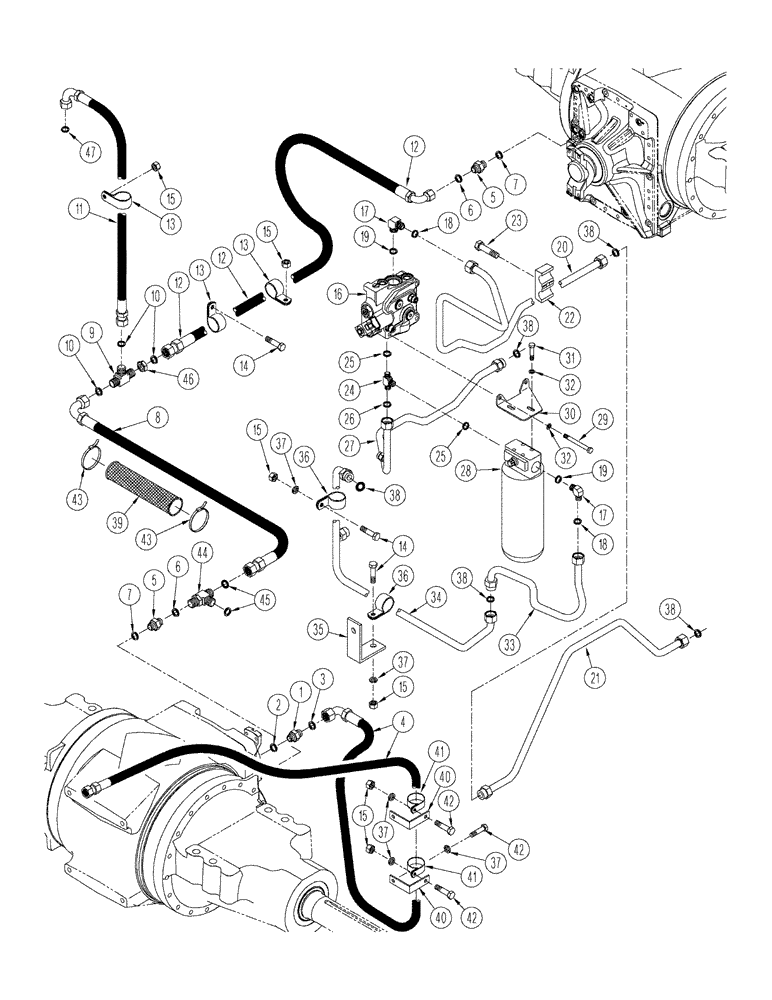

Запчасти Case IH STX375 (08-06) - 400 SERIES AXLE HYDRAULICS - LUBRICATION AND COOLING CIRCUIT, BSN JEE0102001 (08) - HYDRAULICS

1

700-106

HYD CONNECTOR,11/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Inc. 2, 3

1шт.

2

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

3

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

4

436927A1

HOSE ASSY.

2045 mm (80 1/2in)

1шт.

5

700-162

HYD CONNECTOR,13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Inc. 6, 7

2шт.

6

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

7

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

8

361954A1

HOSE ASSY.

2108 mm (83 in)

1шт.

9

701-423

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

M12 fc sl x blkhd fc sl, Inc. 10

1шт.

10

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

11

352111A2

HOSE ASSY.

984 mm (37 in)

1шт.

12

382094A1

HOSE ASSY.

1822 mm (71-1/2 in)

1шт.

13

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

P-type

3шт.

14

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

15

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

10шт.

16

411104A2

VALVE

Regulator, See Figure 08-13

1шт.

17

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Inc. 18, 19

2шт.

18

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.

19

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

2шт.

20

416712A1

TUBE

1шт.

21

416701A1

TUBE

1шт.

22

R15257

CLAMP

1шт.

23

827-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

2шт.

24

328232A1

TEE

1шт.

25

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

2шт.

26

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

27

416703A1

TUBE

1шт.

28

86991559

FILTER ASSY

See Figure 08-04

1шт.

29

827-10150

BOLT,Hex, M10 x 1.5 x 150mm, Cl 10.9

3шт.

30

413322A1

BRACKET

1шт.

31

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

4шт.

32

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

4шт.

33

416699A1

TUBE

1шт.

34

416708A1

TUBE

1шт.

35

417270A1

BRACKET

2шт.

36

515-22254

CLAMP,1", Insul, 5/16" Bolt

3шт.

37

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

38

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

5шт.

39

S120426

TUBE

1шт.

40

416512A1

BRACKET

2шт.

41

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

2шт.

42

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.

43

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

2шт.

44

701-416

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Inc. 45

1шт.

45

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

46

701-903

NUT,13/16" - 16

1шт.

47

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.
