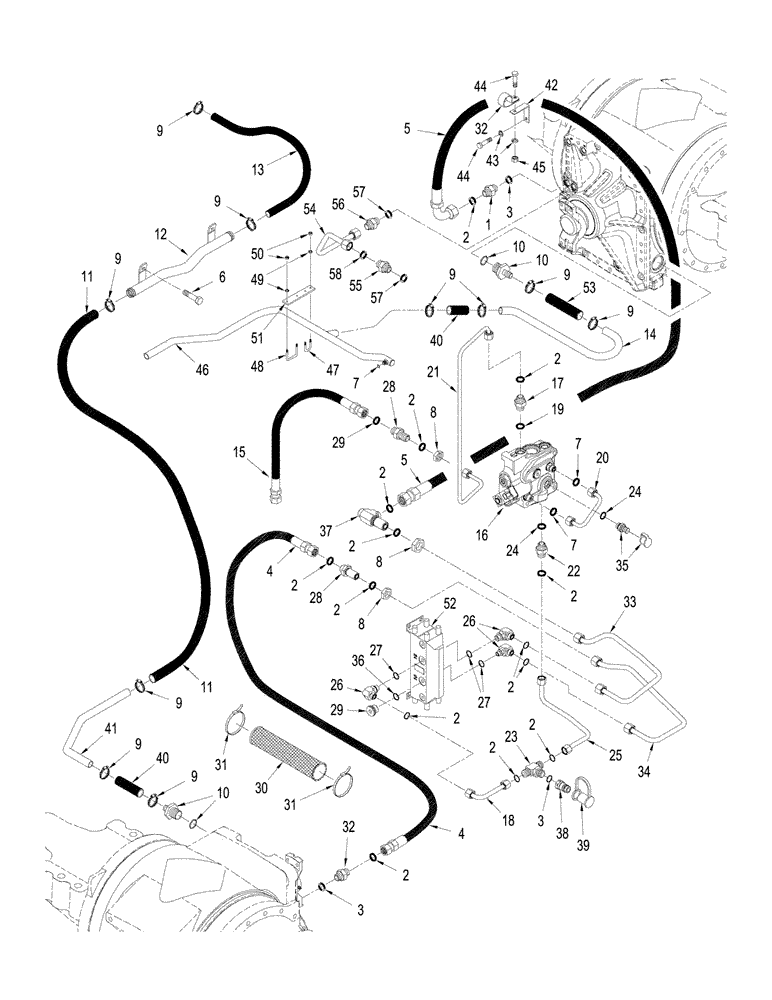

Запчасти Case IH STX375 (08-05[02]) - 400 SERIES AXLE HYDRAULICS - LUBRICATION CIRCUIT, ASN JEE0106701 (08) - HYDRAULICS

1

700-162

HYD CONNECTOR,13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Inc. 2, 3

2шт.

2

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

15шт.

3

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

4

390659A2

HOSE ASSY.

2178 mm (86 in)

1шт.

5

87413875

HOSE,12.70 mm ID x 2400.00 mm, SAE 100R1

1шт.

6

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

7

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3шт.

8

701-903

NUT,13/16" - 16

3шт.

9

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

6шт.

10

337545A1

HYD CONNECTOR

Axle Drain

2шт.

11

404991A1

HOSE,1.00" ID x 38.00"

Cut From S118383

1шт.

12

416280A2

TUBE

1шт.

13

340972A1

HOSE

787 mm (31 in), Cut From S118383

1шт.

14

416727A1

TUBE

1шт.

15

87414080

HOSE ASSY.

970 mm (38 in)

1шт.

16

411104A2

VALVE

Regulator, See Figure(s) : 08-13

1шт.

17

700-169

HYD CONNECTOR,13/16" - 16 Male ORFS x M16 x 1.5 Male ORB

Inc. 2, 19

1шт.

18

87307521

TUBE,9.40 mm ID x 12.70 mm OD

1шт.

19

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

20

413338A1

TUBE

1шт.

21

449800A1

TUBE

1шт.

22

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 2, 24

1шт.

23

700-447

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Inc. 2, 24

1шт.

24

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

25

87307544

TUBE,9.40 mm ID x 12.70 mm OD x 43.00, 64.23 mm L

1шт.

26

201-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Incl. 2, 27

3шт.

27

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

3шт.

28

701-121

UNION,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

Inc. 2

2шт.

29

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Incl Ref 36

1шт.

30

S120426

TUBE

24"

1шт.

31

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

2шт.

32

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

1шт.

33

449813A2

TUBE

1шт.

34

449815A2

TUBE

2шт.

35

358968A1

FITTING

M18 orb x 1,5, Diagnostic, Inc. 24

1шт.

36

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

37

701-301

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

Incl. 2

1шт.

38

392690A1

COUPLING

1шт.

39

399032A1

CAP

1шт.

40

435457A1

HOSE,1.00" ID x 4.00"

Cut from Bulk

2шт.

41

416729A1

TUBE

1шт.

42

416512A1

BRACKET

1шт.

43

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

44

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

45

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

46

409614A1

TUBE

Return

1шт.

47

253105A1

U-BOLT,Coined, M8 x 1.25 x 33.8 x 50mm

BOLT "U"

2шт.

48

396490A1

U-BOLT

BOLT "U"

2шт.

49

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

50

832-10408

NUT,M8 x 1.25, Cl 8.8

8шт.

51

409609A1

PLATE

2шт.

52

434727A1

MOTOR-PUMP

Axle Air / Lube

1шт.

53

437116A1

HOSE,1.00" ID x 5.00"

Cut from Bulk

1шт.

54

86991772

TUBE,8 mm OD

Pinion Lube

1шт.

55

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Inc. 57 & 58

1шт.

56

86985637

FITTING

M14 orb x 1.6 Orifice, Inc. 57

1шт.

57

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

2шт.

58

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.
