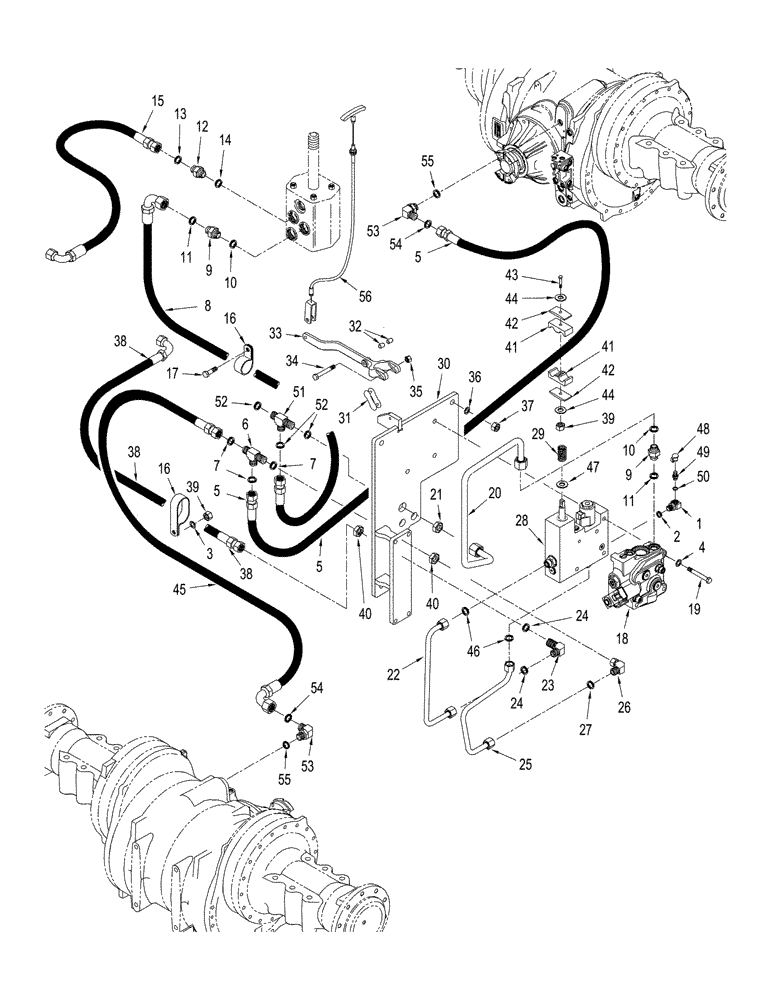

Запчасти Case IH STX375 (07-10[01]) - 500 SERIES AXLE - PARK BRAKE CIRCUIT, WITHOUT DIFFERENTIAL LOCK, ASN JEE0102001, QUADTRAC TRACTOR (07) - BRAKES

1

428078A1

ELBOW

90, M14 or, Inc. 2

1шт.

2

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

2шт.

4

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

3шт.

5

383969A2

HOSE ASSY.

1845 mm (73 in)

1шт.

6

701-423

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

M12 fc sl x blkhd fc sl

1шт.

7

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

8

391790A2

HOSE ASSY.

2368 mm (93 in), Serial Range: -JEE0102661

1шт.

8

87415316

HOSE ASSY.

2386 mm (73 in), Start Serial: JEE0102661

1шт.

9

700-115

HYD CONNECTOR,1" - 14 Male ORFS x M18 x 1.5 Male ORB

Inc. 10, 11

2шт.

10

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

11

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

12

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl. 13, 14

1шт.

13

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

14

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

15

335095A2

HOSE ASSY.

1050 mm (41 in)

1шт.

15

437262A1S

HOSE ASSY.

1050 mm (41 in)

1шт.

Arctic QUADTRAC Tractor Application

1шт.

16

R54363

CLAMP

P-type

2шт.

17

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

18

411104A2

VALVE

Regulator, See Figure: 08-13

1шт.

19

827-10150

BOLT,Hex, M10 x 1.5 x 150mm, Cl 10.9

3шт.

20

449827A2

TUBE

1шт.

21

701-919

BHD LOCK NUT,1" - 14

1шт.

22

449796A1

TUBE

1шт.

23

701-301

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

Incl. 24

1шт.

24

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

25

449798A1

TUBE

1шт.

26

701-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl. 27

1шт.

27

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

28

319774A4

VALVE

Control, Tow Block, See Figure: 08-14

1шт.

29

361897A1

SPRING

1шт.

30

449830A1

PLATE ASSY.

1шт.

31

242-4412

CHAIN LINK

1шт.

32

392748A1

SPACER

2шт.

33

390918A3

ARM

1шт.

34

827-6070

BOLT,Hex, M6 x 70mm, Cl 10.9

1шт.

35

832-10406

NUT,M6 x 1, Cl 8

1шт.

36

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

3шт.

37

829-1412

NUT,M12, Cl 10.9

3шт.

38

87414079

HOSE ASSY.

1шт.

39

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

40

701-903

NUT,13/16" - 16

3шт.

41

50-2551T1

CLAMP

2шт.

42

50-2533T1

PLATE

2шт.

43

827-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 10.9

1шт.

44

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

45

352112A3

HOSE ASSY.

2336 mm (92 in)

1шт.

46

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

47

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

178889A1

DIAGNOSTIC COUPLER

Diagnostic, Inc. 48, 49

1шт.

48

H434163

DUST CAP

1шт.

49

NSS

NOT SOLD SEPARAT

Fitting, Diagnostic, Inc. 50

1шт.

50

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

51

701-429

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x 1" - 14 Male ORFS

Inc. 52

1шт.

52

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

53

700-326

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

90, M22 or x 12 fcsl, Incl. 54, 55

2шт.

54

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

55

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

56

349863A2

CABLE

Tow Valve, See Figure: 08-39 for Mounting & Parts

1шт.
