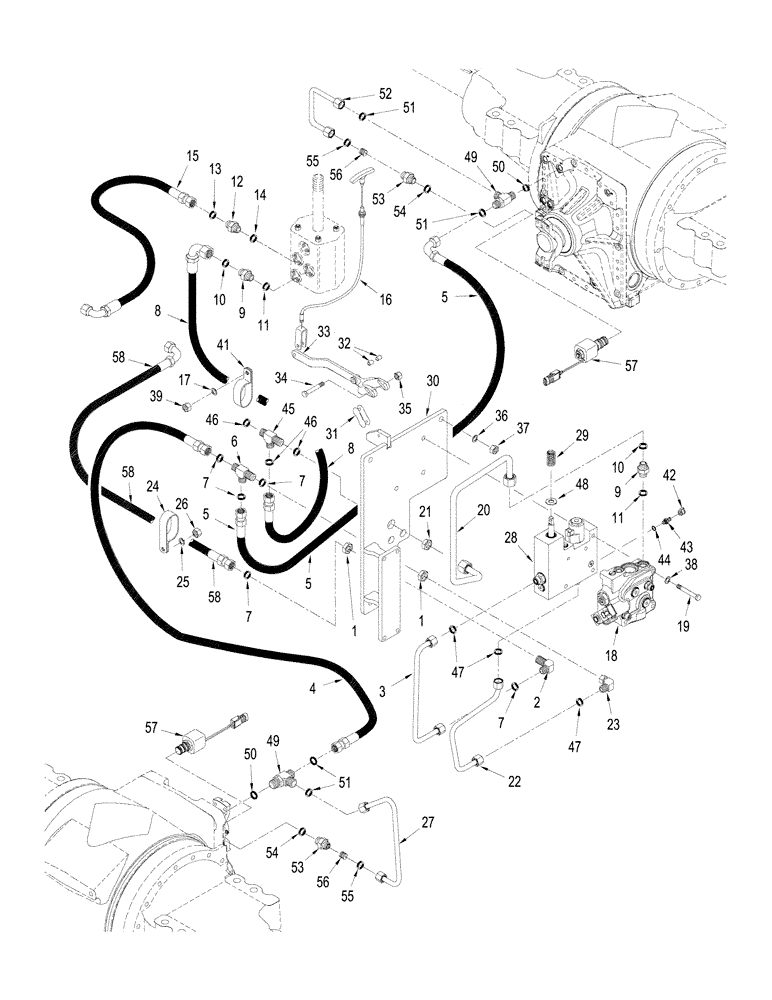

Запчасти Case IH STX375 (07-05[01]) - 400 SERIES AXLE - PARK BRAKE CIRCUIT, WITH DIFFERENTIAL LOCK, ASN JEE0102001 (07) - BRAKES

1

701-903

NUT,13/16" - 16

1шт.

2

701-301

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

Incl. 7

1шт.

3

449796A1

TUBE

1шт.

4

361955A1

HOSE ASSY.

2286 mm (90 in)

1шт.

5

418814A1

HOSE

2184 mm (86 in)

1шт.

6

701-423

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

M12 fc sl x blkhd fc sl, Inc. 7

1шт.

7

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

5шт.

8

418812A1

HOSE ASSY.

2286 mm (90 in), Serial Range: -JEE0104001

1шт.

8

87416123

HOSE ASSY.

2286 mm (90 in), Start Serial: JEE0104001

1шт.

9

700-115

HYD CONNECTOR,1" - 14 Male ORFS x M18 x 1.5 Male ORB

Inc. 10, 11

2шт.

10

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

11

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

12

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl. 13, 14

1шт.

13

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

14

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

15

335095A2

HOSE ASSY.

1050 mm (41 in)

1шт.

16

349863A2

CABLE

Tow Valve, See Figure 08-39 for Mounting & Parts

1шт.

17

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

18

411104A2

VALVE

Regulator, See Figure: 08-13

1шт.

19

827-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

3шт.

20

449827A2

TUBE

1шт.

21

701-919

BHD LOCK NUT,1" - 14

1шт.

22

449798A1

TUBE

1шт.

23

701-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl. 47

1шт.

24

R54363

CLAMP

2шт.

25

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

2шт.

26

829-1310

NUT,M10, Cl 10

2шт.

27

416276A1

TUBE

1шт.

28

319774A4

VALVE

Control, Tow Block, See Figure: 08-14

1шт.

29

361897A1

SPRING

1шт.

30

449830A1

PLATE ASSY.

1шт.

31

242-4412

CHAIN LINK

1шт.

32

392748A1

SPACER

2шт.

33

390918A3

ARM

1шт.

34

827-6070

BOLT,Hex, M6 x 70mm, Cl 10.9

1шт.

35

832-10406

NUT,M6 x 1, Cl 8

1шт.

36

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

3шт.

37

829-1412

NUT,M12, Cl 10.9

3шт.

38

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

1шт.

39

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

41

L111928

CLAMP

1шт.

178889A1

DIAGNOSTIC COUPLER

Diagnostic, Inc. 42, 43

1шт.

42

H434163

DUST CAP

1шт.

43

NSS

NOT SOLD SEPARAT

Fitting, Diagnostic, Inc. 44

1шт.

44

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

45

701-429

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x 1" - 14 Male ORFS

Inc. 53

1шт.

46

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

47

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

4шт.

48

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

49

700-445

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Inc. 50, 51

2шт.

50

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

51

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

4шт.

52

416282A1

TUBE

1шт.

341195A1

ORIFICE

Consists Of : 53 - 56

2шт.

53

NSS

NOT SOLD SEPARAT

Connector, 13/16" fcsl x M14 orb

2шт.

54

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

2шт.

55

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

56

NSS

NOT SOLD SEPARAT

Screw, Set, Hex Soc. M8 x 12, Cup Pt.

1шт.

57

384977A1

VALVE

Solenoid, Differential Lock, See Figure: 08-43

2шт.

58

87424332

HOSE ASSY.

1298mm (51 in)

1шт.
