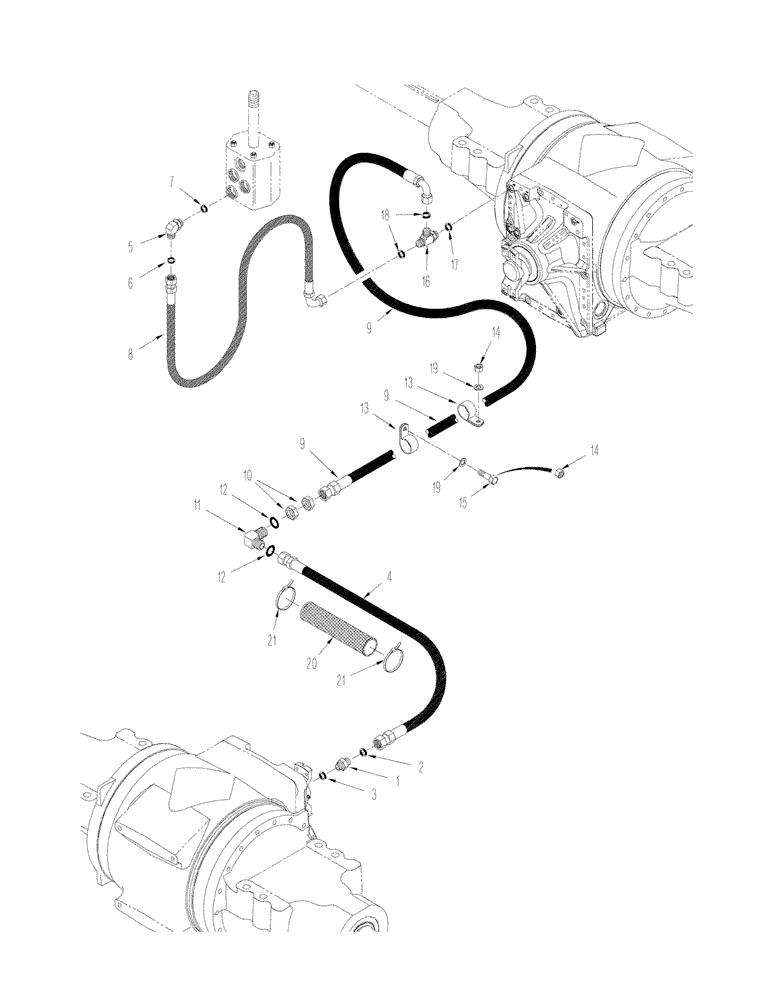

Запчасти Case IH STX375 (07-03) - 400 SERIES AXLE - SERVICE BRAKE CIRCUIT (07) - BRAKES

1

401760A1

VALVE

Check, 13/16 fc sl x 22 or, Inc. 2, 3

1шт.

2

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

3

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

4

392132A1

HOSE ASSY.

2125 mm (84 in)

1шт.

5

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 6, 7

1шт.

6

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

7

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

8

361957A2

HOSE

863 mm (34 in), Serial Range: -JEE0104001

1шт.

8

87427434

HOSE ASSY.

1010 mm (39-3/4 in), Start Serial: JEE0104001

1шт.

9

353609A1

HOSE ASSY.

2115 mm (83 in)

1шт.

10

701-903

NUT,13/16" - 16

2шт.

11

701-301

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

Incl. 12

1шт.

12

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

13

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

P-type

2шт.

14

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

15

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

, Serial Range: -JEE0102001

1шт.

16

700-445

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Inc. 17, 18

1шт.

17

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

18

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

19

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

, Start Serial: JEE0102001

1шт.

20

S120426

TUBE

Protection

1шт.

21

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

2шт.
