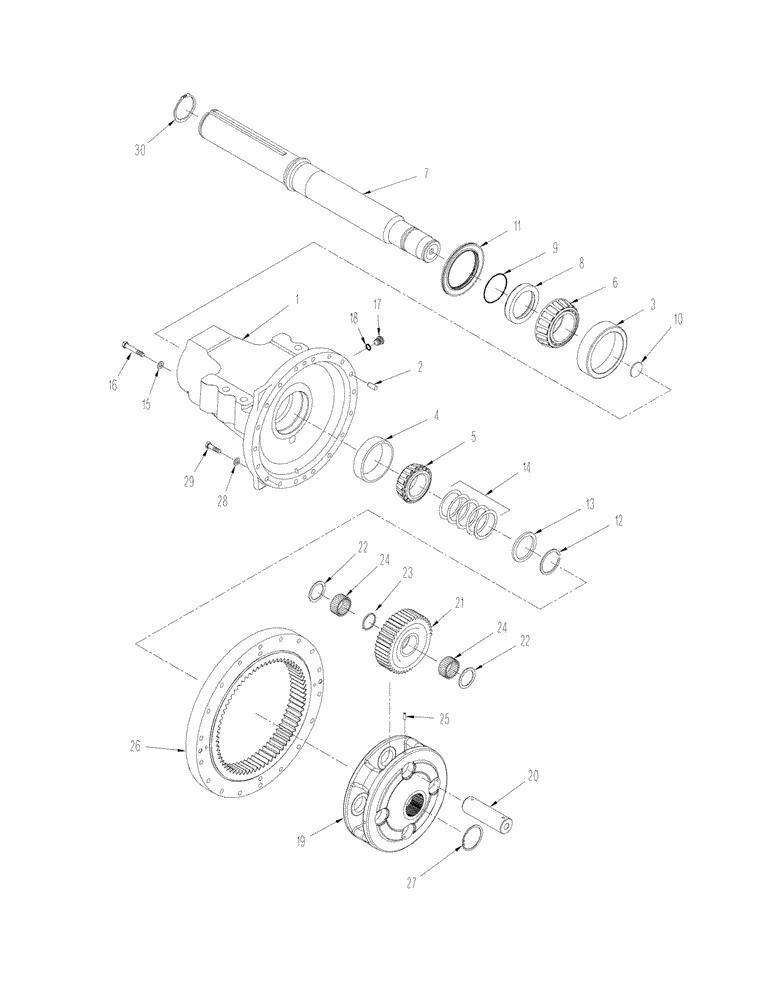

Запчасти Case IH STX375 (06-72) - 400 SERIES AXLE ASSEMBLY - FINAL DRIVE (06) - POWER TRAIN

87365608

FRONT AXLE

STD W/Diff

1шт.

87365608R

REMAN-FRT AXLE 4 WD

STD Front Axle W/ Diff

1шт.

87365608C

CORE-FRT AXLE 4 WD

CORE-PRESSURE SWITCH STD Front Axle W/Diff

1шт.

87365625

REAR AXLE

STD W/Diff

1шт.

87365625R

REMAN-RR AXLE STD DL

REMAN-REAR AXLE, STD w/DIFF LOCK STX375, STX425, All ASN JEE0099501, N.A. Only

1шт.

87365625C

CORE-RR AXLE STDw/DL

CORE-REAR AXLE, STD w/DIFF LOCK Return Number, For N.A. Only

1шт.

87365639

FRONT AXLE

STD W/O Diff

1шт.

87365639R

REMAN-FRT AXLE w/DL

REMAN-FRONT AXLE, w/o DIFF LOCK STX375, STX425, All ASN JEE0099501, N.A. Only

1шт.

87365639C

CORE-FRT AXLE w/o DL

Return Number, For N.A. Only

1шт.

86985667

REAR AXLE

STD W/O Diff, Order Components

1шт.

313600A2

CARRIER

Incl 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

837-16040

DOWEL,M16 x 40

2шт.

3

237698A1

BEARING CUP,212.74mm OD x 53.87mm W

1шт.

4

A136253

BEARING, CUP,171.45mm OD x 38.1mm W

1шт.

5

A136255

ROLLER BEARING,95.25mm ID x 48.26mm W

Bearing, Cone

1шт.

6

237700A1

TAPERED BEARING,114.3127 mm ID x 66.7766 mm

1шт.

310701A5

SHAFT

115 mm (4-1/2 in), Axle, Incl 7 - 10

2шт.

7

NSS

NOT SOLD SEPARAT

Shaft, 115 mm (4-1/2 in)

1шт.

8

239529A1

BUSHING,114.91mm ID x 155mm OD x 26mm L

Outboard

1шт.

9

238-5246

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

1шт.

10

1981270C1

INSERT

1шт.

11

84225952

OIL SEAL,152.7mm ID x 214.31mm OD x 20.5mm Thk

2шт.

12

243856A1

RING, SNAP

RING SNAP

1шт.

13

124744C1

WASHER,95.63mm ID x 120mm OD x 8mm Thk

1шт.

14

143921C1

SHIM,95mm ID x 120mm OD x 0.76mm Thk

1шт.

14

143922C1

SHIM,95mm ID x 120mm OD x 0.3mm Thk

1шт.

14

143923C1

SHIM,95mm ID x 120mm OD x 0.13mm Thk

1шт.

14

143924C1

SHIM,95mm ID x 120mm OD x 0.1mm Thk

1шт.

14

143925C1

SHIM,95mm ID x 120mm OD x 0.08mm Thk

1шт.

15

95-31038

WASHER,5/16"

3/4 x 1-1/8 x 1/16

4шт.

16

628-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

4шт.

17

221578A1

PLUG,M18 x 1.5 ORB

Incl 18

1шт.

18

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

19

388370A1

PINION CARRIER

GEAR CARRIER Planetary

1шт.

20

310697A3

SHAFT,31.75mm ID x 63.4mm OD x 130mm L

4шт.

21

310694A2

PLANETARY GEAR,29T

29 T

4шт.

22

87435907

THRUST WASHER,64.3mm ID x 95mm OD x 2.6mm Thk

8шт.

23

86985634

SPACER, RING,66.5mm ID x 76.45mm OD x 7mm L

4шт.

24

1349347C1

NEEDLE ROLLER,Needle, 6.65mm OD x 34.09mm L

264шт.

25

838-3826

PIN,M8 x 26, Coiled

4шт.

26

360761A1

GEAR, RING

RING, GEAR 76 T

2шт.

27

101-11350

SNAP RING,#350, Ext

2шт.

28

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

36шт.

29

828-16150

BOLT,Hex, M16 x 2 x 150mm, Cl 10.9

18шт.

30

800-51100

SNAP RING,M100, Ext, Hvy

, Start Serial: JEE0102001

4шт.
