Запчасти Case IH STX375 (06-61) - POWER TAKEOFF - SAFETY SHIELDS (06) - POWER TRAIN

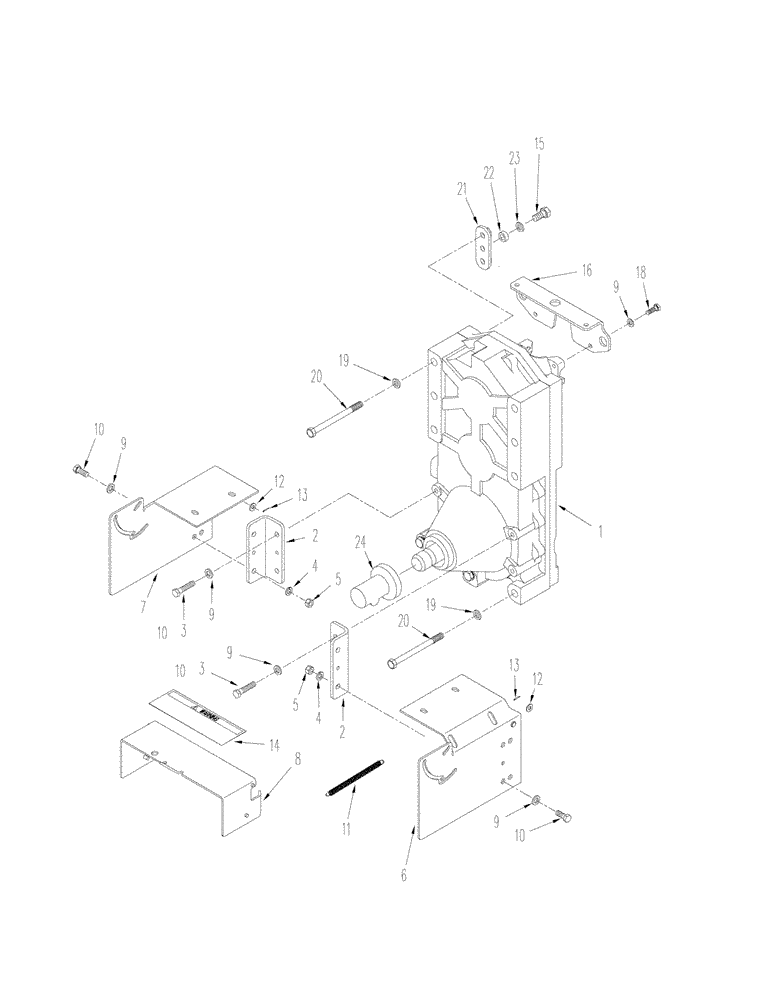

Схема запчастей Case IH STX375 - (06-61) - POWER TAKEOFF - SAFETY SHIELDS (06) - POWER TRAIN
10
24
5
6
1
14
18
19
11
2
10
10
9
5
15
2
9
8
4
12
16
20
13
19
10
9
12
3
21
9
4
9
23
7
22
20
13
3

Артикул

Название

Примечание

Количество

1

403073A1

GEARBOX ASSY

See Figure 06-62

1шт.

403073A1R

REMAN-PTO GEARBOX A.

STX375, STX425, STX450, STX500 (AFTER S/N JEE0099501)

1шт.

403073A1C

CORE-PTO GEARBOX A.

Return Number

1шт.

2

405394A1

BRACE

2шт.

3

827-12055

BOLT,Hex, M12 x 1.75 x 55mm, Cl 10.9

4шт.

With Three Point Hitch

1шт.

4

892-11012

LOCK WASHER,M12

4шт.

5

829-1412

NUT,M12, Cl 10.9

4шт.

6

405396A1

COVER

Right-Hand

1шт.

7

405395A1

COVER

Left-Hand

1шт.

8

405397A1

SHIELD

Flip-up

1шт.

9

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

10шт.

10

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

6шт.

With Three Point Hitch

1шт.

10

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

10шт.

Without Three Point Hitch

1шт.

11

365853A1

SPRING

2шт.

12

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

13

733-2012

COTTER PIN,M2 x 12

2шт.

14

327567A3

DECAL

Safety

1шт.

15

627-16025

BOLT,Hex, M16 x 2 x 25mm, Cl 10.9, Full Thd

2шт.

16

381389A2

BRACKET

1шт.

17

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

18

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

19

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm

4шт.

20

827-20190

BOLT,Hex, M20 x 2.5 x 190mm, Cl 10.9

4шт.

21

259389A1

PLATE

2шт.

22

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

2шт.

23

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

24

383716A1

SHIELD

PTO Shaft

1шт.

Выбрано товаров: 30
