Запчасти Case IH STX375 (06-55) - POWER TAKEOFF - DRIVE SHAFT MOUNTING (06) - POWER TRAIN

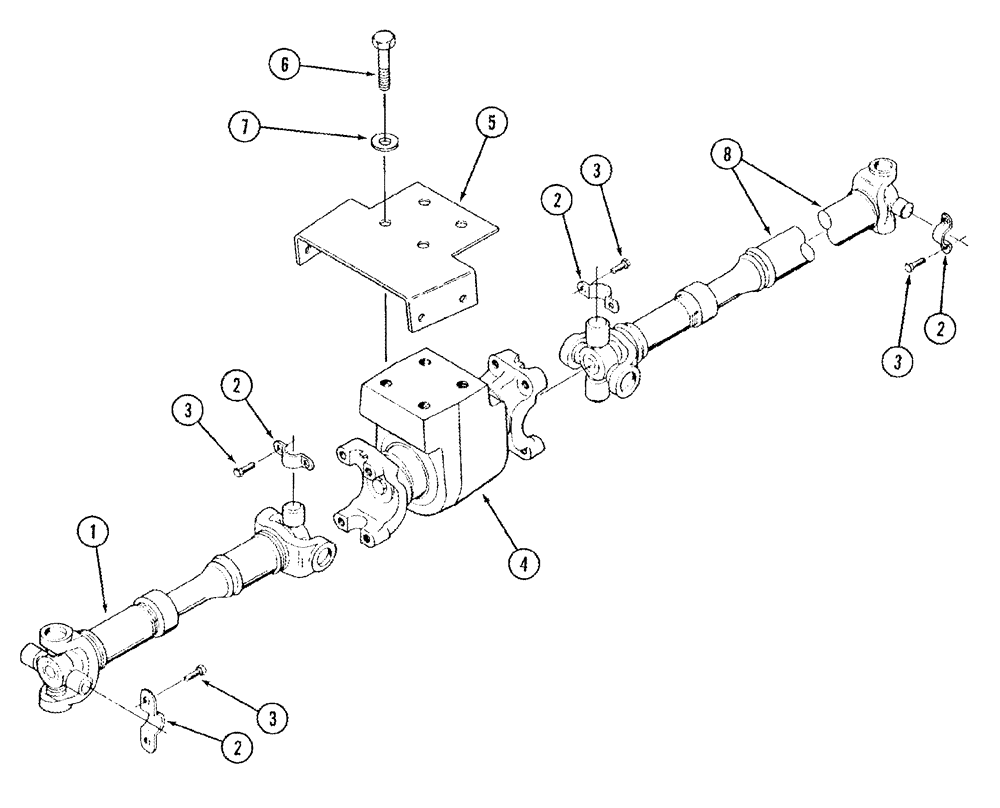

Схема запчастей Case IH STX375 - (06-55) - POWER TAKEOFF - DRIVE SHAFT MOUNTING (06) - POWER TRAIN
7
3
6
2
8
2
3
1
3
3
4
2
5
2

Артикул

Название

Примечание

Количество

1

404798A1

SHAFT

Articulation, See Figure 06-56

1шт.

2

L116943

SECURING STRAP

8шт.

3

868-10020

12 PT SCREW,M10 x 20mm, Cl 12.9

16шт.

4

NSS

NOT SOLD SEPARAT

Support Assy, Hanger, Order Components, See Figure 06-56

1шт.

5

404604A1

BRACKET

1шт.

6

827-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 10.9

4шт.

STX Wheel Tractor

1шт.

With 400 Series Axles

1шт.

6

827-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 10.9

4шт.

STX Wheel Tractor

1шт.

With 500 Series Axles

1шт.

6

827-16100

BOLT,Hex, M16 x 2 x 100mm, Cl 10.9

4шт.

QUADTRAC Tractor

1шт.

7

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

8

404799A1

DRIVE SHAFT

Rear, See Figure 06-56

1шт.

Выбрано товаров: 15
