Запчасти Case IH STX375 (06-43) - POWER SHIFT TRANSMISSION - SECOND SHAFT ASSEMBLY (06) - POWER TRAIN

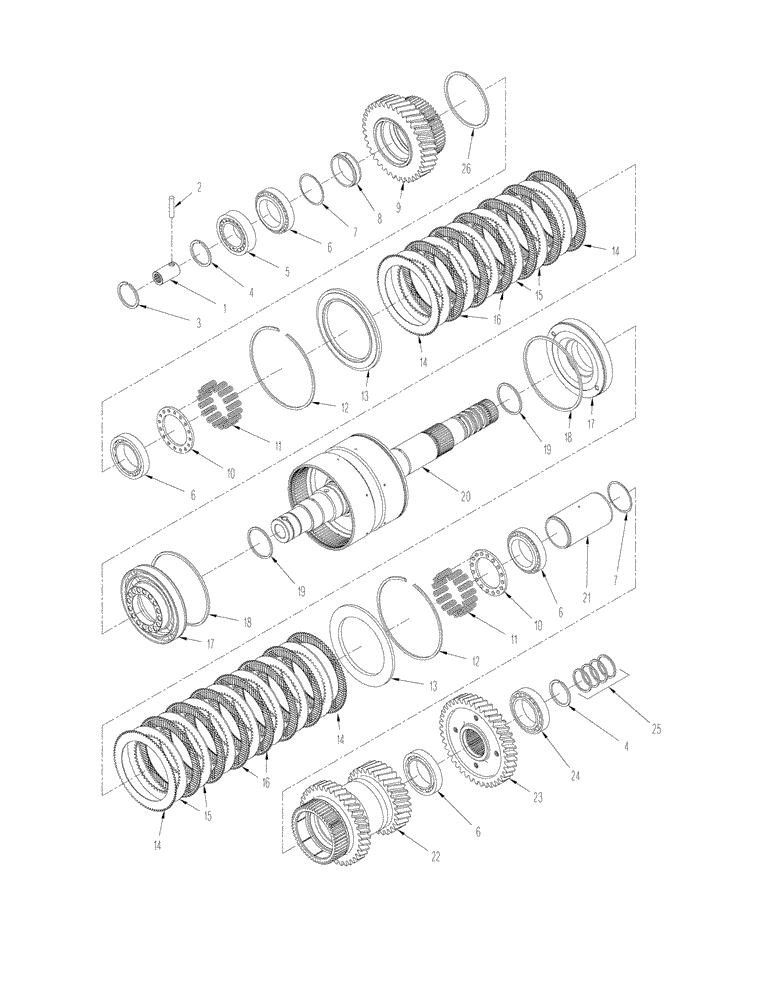

Схема запчастей Case IH STX375 - (06-43) - POWER SHIFT TRANSMISSION - SECOND SHAFT ASSEMBLY (06) - POWER TRAIN
17
20
19
2
6
14
5
24
25
17
7
6
15
14
12
8
14
10
12
6
26
9
1
4
14
11
15
22
4
6
16
18
18
3
10
7
19
23
13
16
21
11
13

Артикул

Название

Примечание

Количество

87431395

SHAFT

Second, Inc. 1 - 25

1шт.

Repair and exchange COMPLETE TRANSMISSION available - call Avatar Components, 1-800-453-3544, ext. 122

1шт.

1

428673A1

SPLINED COUPLING

1шт.

2

428674A1

DOWEL

1шт.

3

352816A1

RING, SNAP

RING SNAP 3,0 mm

1шт.

4

352378A1

RING, SNAP

RING SNAP 2,5 mm

1шт.

4

352394A1

RING, SNAP

RING SNAP 2,6 mm

1шт.

4

352397A1

RING, SNAP

RING SNAP 2,7 mm

1шт.

4

352400A1

RING, SNAP

RING SNAP 2,8 mm

1шт.

4

352815A1

RING, SNAP

RING SNAP 2,9 mm

1шт.

4

352816A1

RING, SNAP

RING SNAP 3,0 mm

1шт.

5

428183A1

ROLLER BEARING,55mm ID x 95mm OD x 29.2mm W

1шт.

6

352817A1

TAPERED BEARING,65mm ID x 100mm OD x 23mm W

4шт.

7

352818A1

SHIM,0.15mm Thk

(0.006")

1шт.

7

352819A1

SHIM,0.18mm Thk

(0.007")

1шт.

7

352820A1

SHIM,0.20mm Thk

(0.008")

1шт.

7

352821A1

SHIM,0.25mm Thk

(0.010")

1шт.

7

352822A1

SHIM,0.30mm Thk

(0.012")

1шт.

7

352823A1

SHIM,0.50mm Thk

(0.020")

1шт.

8

359260A1

SPACER

1шт.

9

87431396

GEAR

2R

1шт.

10

352827A1

PLATE

Retaining Spring

2шт.

11

352828A1

SPRING

32шт.

12

352829A1

RING, SNAP

RING SNAP

2шт.

13

87431390

CLUTCH PLATE

Clutch End

2шт.

14

352831A1

CLUTCH DISC

CLUTCH DISK Faced

4шт.

15

S2080S00F

CLUTCH DISC,2.4mm Thk

CLUTCH DISK If Used, 2,4 mm (0.094 in)

1шт.

15

S2090S00F

CLUTCH DISC,2.1mm Thk

CLUTCH DISK If Used, 2,1 mm (0.083 in)

1шт.

16

352832A1

CLUTCH DISC

CLUTCH DISK Faced

11шт.

17

352833A1

PISTON

2шт.

18

87431391

RING

Seal

2шт.

19

S2610S00F

RING

2шт.

20

359280A1

SHAFT

Drum

1шт.

21

362423A1

SPACER

1шт.

22

362542A1

GEAR

2M

1шт.

23

362543A1

GEAR

Driven

1шт.

24

359206A1

TAPERED BEARING,55mm ID x 100mm OD x 35mm W

1шт.

25

S3070S00F

RING

4шт.

26

87431394

RING

Seal, Start Serial: JEE0104001

1шт.

87432750

GASKET KIT

Transmission Repair, Inc. 18 & 26, See Figure (s): 06-37 - 06-48

1шт.

Выбрано товаров: 40
