Запчасти Case IH STX375 (06-42) - POWER SHIFT TRANSMISSION - INPUT SHAFT ASSEMBLY (06) - POWER TRAIN

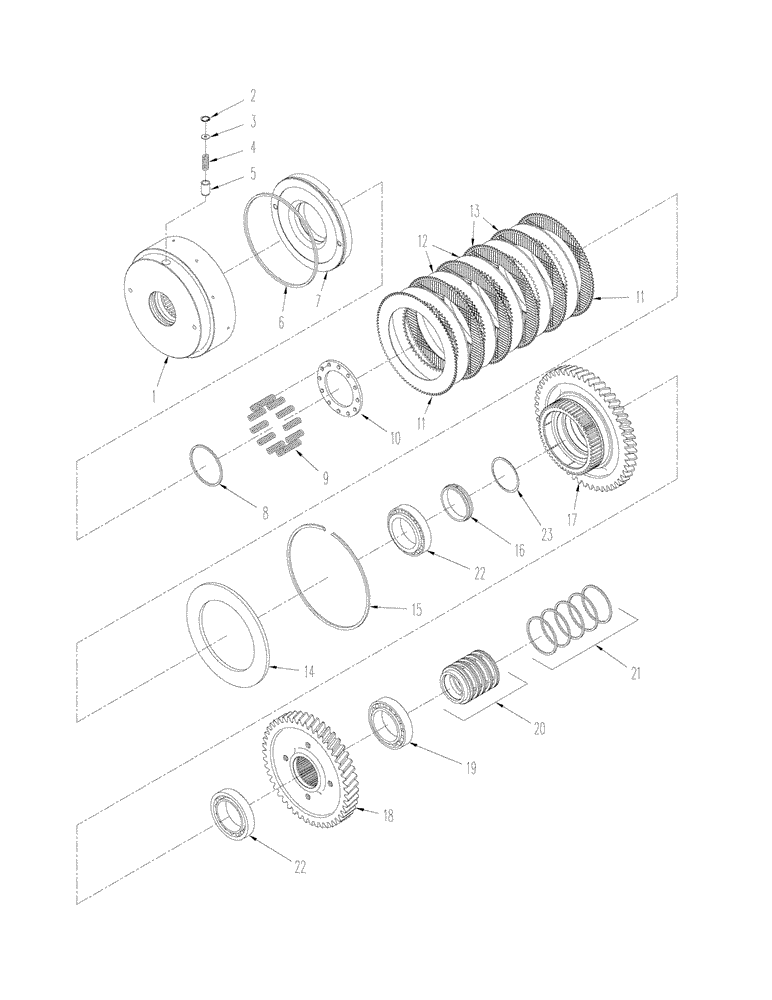

Схема запчастей Case IH STX375 - (06-42) - POWER SHIFT TRANSMISSION - INPUT SHAFT ASSEMBLY (06) - POWER TRAIN
14
23
1
13
10
15
3
12
18
21
17
7
22
2
8
11
4
11
5
9
6
16
22
20
19

Артикул

Название

Примечание

Количество

87431389

SHAFT

Input, Inc. 1- 23, Also See Figure 06-41

1шт.

Repair and exchange COMPLETE TRANSMISSION available - call Avatar Components, 1-800-453-3544, ext. 122

1шт.

1

358918A1

DRUM

1F, Clutch

1шт.

2

800-2116

SNAP RING,M16, Int

1шт.

3

S3220S00F

SHIM

0,70 mm (0,028 in)

1шт.

4

S3210S00F

SPRING

1шт.

5

S3200S00F

DRAIN VALVE

1шт.

6

S2630S00F

RING

Seal, Serial Range: -JEE0104001

1шт.

6

87431393

O-RING,177.9mm ID x 188.9mm OD x 3.65mm Thk

Seal, Start Serial: JEE0104001

1шт.

7

358970A1

PISTON

1шт.

8

S5510S00F

RING

1шт.

9

358971A1

SPRING

12шт.

10

358972A1

PLATE

1шт.

11

370555A1

CLUTCH DISC

CLUTCH DISK Faced

2шт.

12

S4070S00F

CLUTCH DISC,2.4mm Thk

CLUTCH DISK If Used, 2,4 mm (0,094 in)

1шт.

12

S4110S00F

CLUTCH DISC,2.1mm Thk

CLUTCH DISK If Used, 2,1 mm (0,083 in)

1шт.

13

370556A1

CLUTCH DISC

CLUTCH DISK Faced

4шт.

14

442803A1

PLATE

End

1шт.

15

428108A1

RING, SNAP

RING SNAP

1шт.

16

359203A1

SPACER

1шт.

17

359204A1

GEAR

1F

1шт.

18

359205A1

GEAR

Drive

1шт.

19

359206A1

TAPERED BEARING,55mm ID x 100mm OD x 35mm W

1шт.

20

359207A1

CARRIER

Seal

1шт.

21

S4150S00F

RING

Seal

5шт.

22

352817A1

TAPERED BEARING,65mm ID x 100mm OD x 23mm W

Roller

2шт.

23

352818A1

SHIM,0.15mm Thk

(0.006")

1шт.

23

352819A1

SHIM,0.18mm Thk

(0.007")

1шт.

23

352820A1

SHIM,0.20mm Thk

(0.008")

1шт.

23

352821A1

SHIM,0.25mm Thk

(0.010")

1шт.

23

352822A1

SHIM,0.30mm Thk

(0.012")

1шт.

23

352823A1

SHIM,0.50mm Thk

(0.020")

1шт.

87432750

GASKET KIT

Transmission Repair, Inc. 32, 34, 47, Also See Figures 06-37 - 06-48

1шт.

Выбрано товаров: 33
