Запчасти Case IH STX375 (06-40) - POWER SHIFT TRANSMISSION - HOUSING AND CLUTCHES (06) - POWER TRAIN

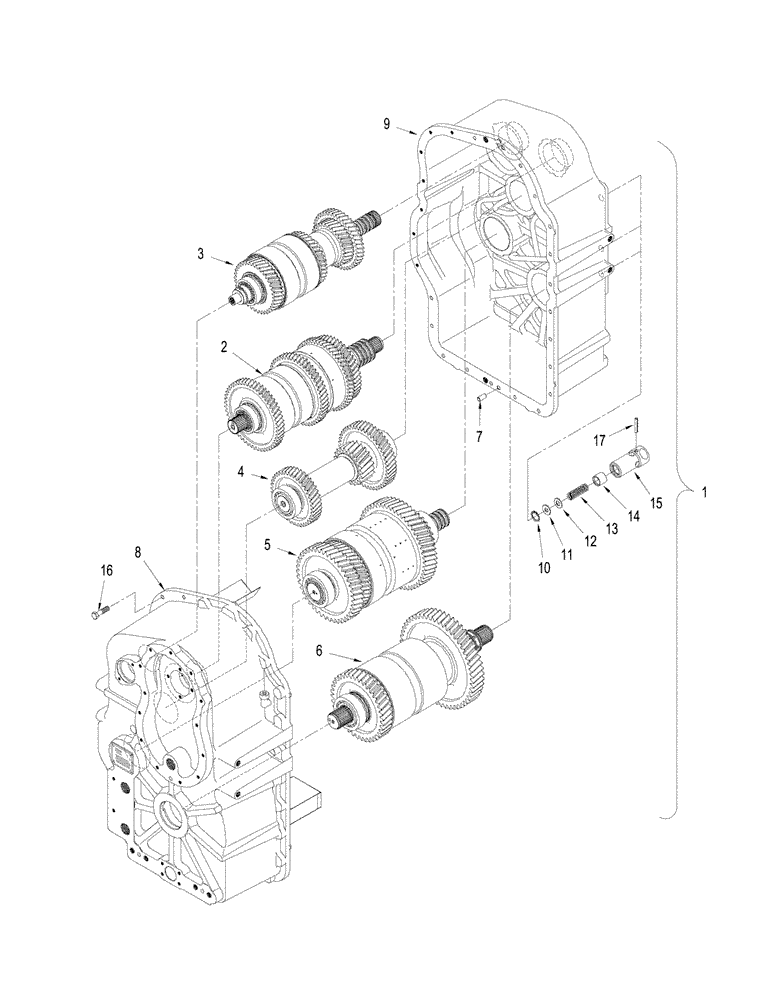

Схема запчастей Case IH STX375 - (06-40) - POWER SHIFT TRANSMISSION - HOUSING AND CLUTCHES (06) - POWER TRAIN
15
7
1
8
6
16
3
5
2
9
12
13
14
4
10
11
17

Артикул

Название

Примечание

Количество

1

403066A1

TRANSMISSION

8.5C Yoke, 16 SPD

1шт.

1

87627458R

REMAN-TRANSMISSION

8.5C Yoke, 16 SPD

1шт.

1

87627458C

CORE-TRANSMISSION

Return Part Number

1шт.

1

87416588

TRANSMISSION

Closed Loop PS3 - 8.5C

1шт.

1

87416587

TRANSMISSION

Closed Loop PS3 - 8C

1шт.

1

87627456R

REMAN-TRANSMISSION

Closed Loop PS3

1шт.

Does Not Come With Yokes, Please Retain From Old Transmission

1шт.

Used for Both 8C and 8.5C Transmission

1шт.

1

87627456C

CORE-TRANSMISSION

Return Part Number

1шт.

2

87431389

SHAFT

Input, See Figure 06-41, 06-42

1шт.

3

87431395

SHAFT

Second, See Figure 06-43

1шт.

4

NSS

NOT SOLD SEPARAT

Shaft, Third, Order Components, See Figure 06-44

1шт.

5

87431399

SHAFT ASSY.

Fourth, See Figure 06-45, 06-46

1шт.

6

87431402

SHAFT ASSY.

Fifth, See Figure 06-47, 06-48

1шт.

7

427530A1

DOWEL,14mm OD x 31mm L

2шт.

8

370636A1

HOUSING

Rear

1шт.

9

375486A1

HOUSING

Front

1шт.

REMAN TRANSMISSION Available - P/N 87627458R Before S/N JEE0104001, P/N 87627456R for S/N JEE0104001 & After

1шт.

10

800-2112

SNAP RING,M12, Int

4шт.

11

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

4шт.

12

370542A1

SHIM

4шт.

13

370543A1

SPRING

4шт.

14

370544A1

SPOOL

4шт.

15

370545A1

CAP

4шт.

16

514-831

BOLT,Hex, M12 x 1.25 x 45mm, Cl 8.8, Full Thd

25шт.

17

838-1318

LOCK PIN,3mm OD x 10mm L, Slotted

4шт.

Выбрано товаров: 26
