Запчасти Case IH STX375 (06-34) - MANUAL SHIFT TRANSMISSION - CONTROL VALVE ASSEMBLY (06) - POWER TRAIN

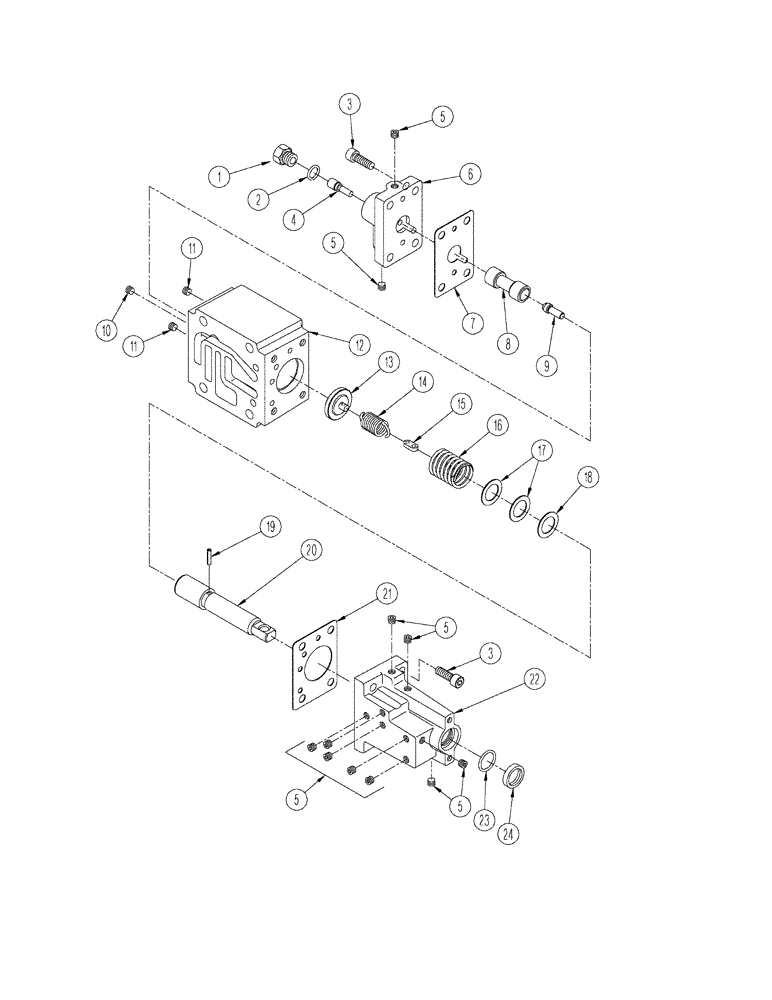

Схема запчастей Case IH STX375 - (06-34) - MANUAL SHIFT TRANSMISSION - CONTROL VALVE ASSEMBLY (06) - POWER TRAIN
22
4
2
14
13
7
3
5
15
24
1
5
20
9
17
8
12
11
23
16
11
18
3
5
6
10
5
19
5
21

Артикул

Название

Примечание

Количество

428083A1

VALVE

Control, Inc. 1 - 24

1шт.

1

S6170S00F

PLUG

Inc. 2

1шт.

2

S6180S00F

O-RING

1шт.

3

S6260S00F

SCREW

8шт.

4

S6010S00F

SPOOL

1шт.

5

S6220S00F

PLUG

11шт.

6

S6020S00F

COVER

1шт.

7

S6030S00F

GASKET

1шт.

8

S6040S00F

SPOOL

1шт.

9

S6160S00F

PIN

1шт.

10

S6240S00F

ORIFICE

1шт.

11

S6230S00F

ORIFICE

1шт.

12

428084A1

VALVE BODY

1шт.

13

S6060S00F

SPRING SEAT

1шт.

14

S6210S00F

SPRING

1шт.

15

S6080S00F

LINK, CONNECTING

1шт.

16

S6150S00F

SPRING

1шт.

17

S6140S00F

SHIM,1.0mm Thk

1шт.

18

S6200S00F

SPACER

1шт.

19

S6130S00F

PIN, ROLL

1шт.

20

S6100S00F

HOUSING

1шт.

21

427537A1

GASKET

1шт.

22

428085A1

COVER

1шт.

23

S6120S00F

O-RING

1шт.

24

S6110S00F

OIL SEAL

1шт.

Выбрано товаров: 25
