Запчасти Case IH STX375 (06-19) - TRANSMISSION - LUBRICATION, WITH POWER SHIFT TRANSMISSION, BSN JEE0104001 (06) - POWER TRAIN

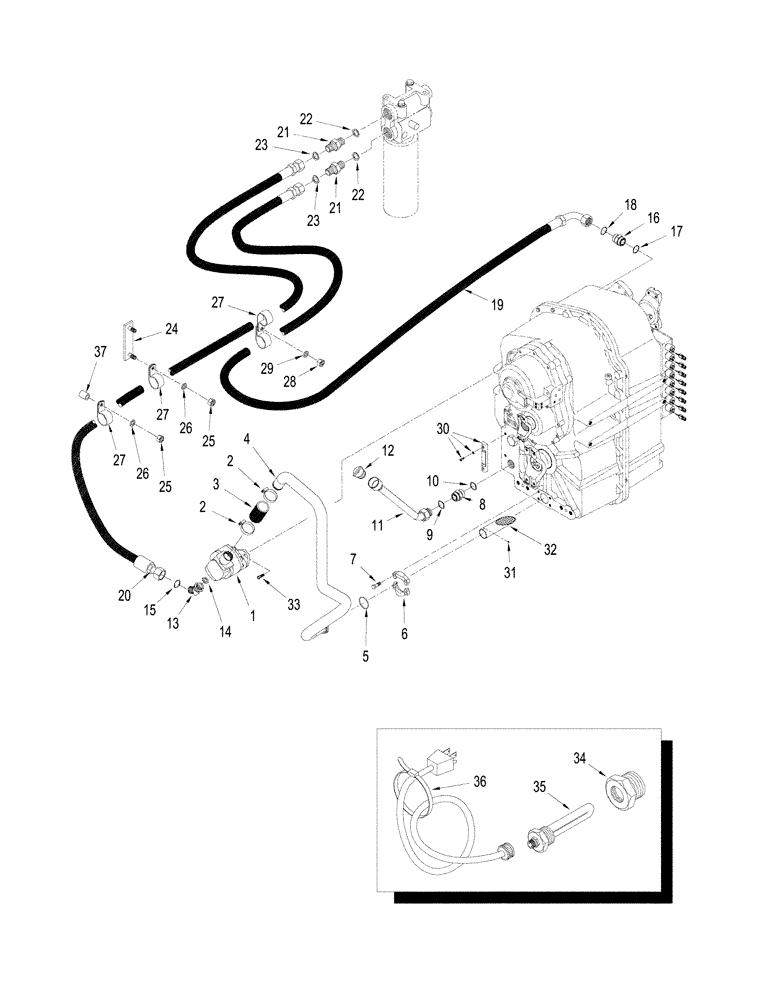

Схема запчастей Case IH STX375 - (06-19) - TRANSMISSION - LUBRICATION, WITH POWER SHIFT TRANSMISSION, BSN JEE0104001 (06) - POWER TRAIN
6
7
24
27
22
31
1
25
34
33
2
13
11
25
19
21
9
29
23
26
4
36
3
12
20
27
30
37
10
27
8
32
28
35
15
18
23
14
2
22
17
16
21
5
26

Артикул

Название

Примечание

Количество

1

370546A1

PUMP

Oil

1шт.

1

84176413R

REMAN-HYD PUMP

Reman for New PN 370546A1

1шт.

1

84176413C

CORE-HYDRAULIC PUMP

Return Number, HYDRAULIC PUMP

1шт.

2

214-3140

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm

2шт.

3

1-4568

HOSE

102 mm (4 in)

1шт.

4

408581A1

TUBE

1шт.

5

238-6228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

1шт.

6

A14141

FLANGE

2шт.

7

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

4шт.

8

700-133

HYD CONNECTOR,1-11/16" - 12 Male ORFS x M42 x 2 Male ORB

Inc. 9, 10

1шт.

9

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

10

637-64386

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

1шт.

11

403390A1

TUBE

Transmission Fill

1шт.

12

325737A1

CAP

Transmission Fill Tube

1шт.

13

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Inc. 24, 25

1шт.

14

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

15

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

16

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

1-7/16 fc sl x 33 Or, Inc. 17, 18

1шт.

17

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

18

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

19

327444A2

HOSE ASSY.,25.4mm ID x 1811mm L

Supply

1шт.

20

307167A1

HOSE,25.4mm ID x 2565mm L

2565 mm (101 in), Outlet

1шт.

21

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

1-7/16 fc sl x 33 Or, Inc. 31, 32

2шт.

22

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

23

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

24

324089A1

PLATE ASSY.

2шт.

25

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

26

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

27

515-24349

CLAMP,1 3/8", Insul, 7/16" Bolt

, Serial Range: -JEE0102001

6шт.

27

515-24317

CLAMP,1 1/4", Insul, 7/16" Bolt

1-3/8 ID, Start Serial: JEE0102001

8шт.

28

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

3шт.

29

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

30

L116247

GAUGE

Inc. Hardware

1шт.

31

S14701960

BALL,3.968mm OD

1шт.

32

370551A1

TUBE

1шт.

33

514-721

BOLT,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

186135A1

KIT

Transmission Heater, Inc. 34 - 35

1шт.

34

367930A1

ADAPTER,M42 x 2 NPT

1шт.

35

385486A1

HEATER ASSY.

300 W, With Cord Set

1шт.

36

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

5шт.

37

432444A1

SPACER

1шт.

Выбрано товаров: 41
