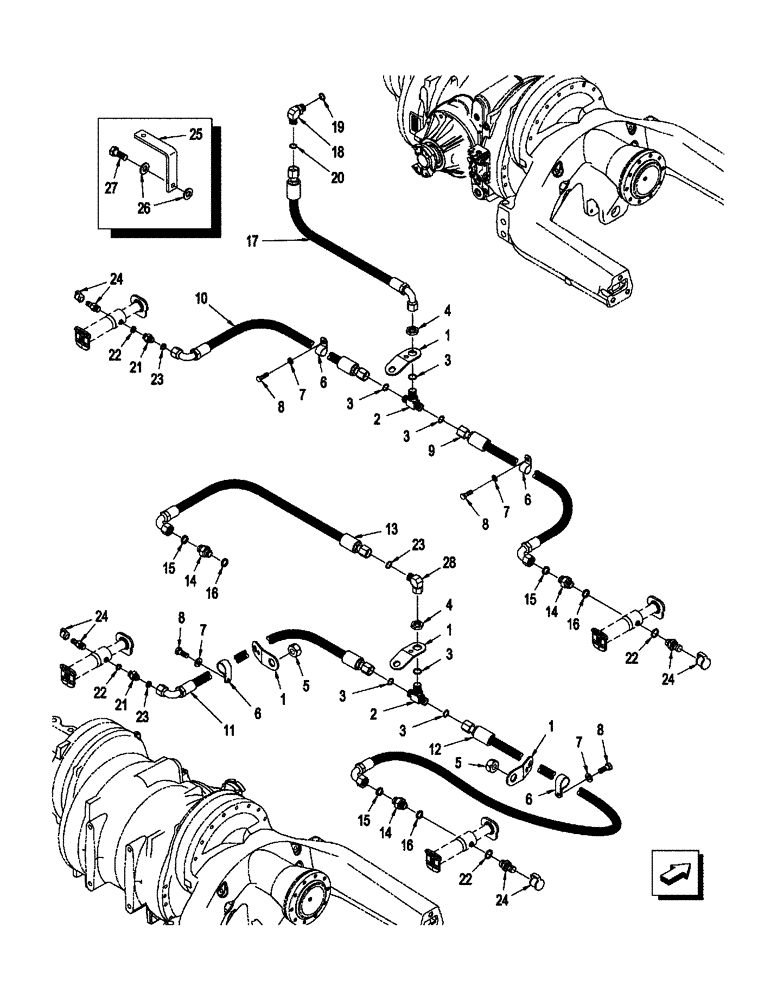

Запчасти Case IH STX375 (06-14) - TRACK TENSIONING, QUADTRAC TRACTOR (06) - POWER TRAIN

1

417272A1

BRACKET

, Serial Range: -JEE0106701

8шт.

1

87306552

BRACKET

, Start Serial: JEE0106701

8шт.

2

701-453

TEE,9/16" - 18 Male ORFS x 9/16" - 18 Male ORFS x 9/16" - 18 Male ORFS

M6 fc sl, Inc. 3, Serial Range: -JEE0106701

2шт.

2

87306678

TEE,11/16" - 16 ORFS x 11/16" - 16 ORFS x 11/16" - 16 ORFS

Inc. 3, Start Serial: JEE0106701

2шт.

3

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

, Serial Range: -JEE0106701

3шт.

3

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

, Start Serial: JEE0106701

3шт.

4

701-1254

BHD LOCK NUT,9/16" - 18

M6, Serial Range: -JEE0106701

2шт.

4

701-909

NUT,11/16" - 16

M10, Start Serial: JEE0106701

2шт.

5

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

6шт.

6

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

16шт.

7

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

18шт.

8

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

16шт.

9

437378A1

HOSE ASSY.,6.35mm ID x 1924mm L

1924 mm (76 in), Serial Range: -JEE0106701

1шт.

9

87306548

HOSE ASSY.

1836mm (72-9/32 in), Start Serial: JEE0106701

1шт.

9

87346268

HOSE

1816 mm (71-1/2 in)

1шт.

Arctic QUADTRAC Tractor Application

1шт.

10

437379A1

HOSE ASSY.,6.35mm ID x 2019mm L

2019 mm (79 in), Serial Range: -JEE0106701

1шт.

10

87306549

HOSE ASSY.

1956mm (77 in), Start Serial: JEE0106701

1шт.

10

87346279

HOSE

1943 mm (76-1/2 in)

1шт.

Arctic QUADTRAC Tractor Application

1шт.

11

437379A1

HOSE ASSY.,6.35mm ID x 2019mm L

2019mm (79 in), Serial Range: -JEE0106701

1шт.

11

87306550

HOSE ASSY.

2015mm (79-5/16 in), Start Serial: JEE0106701

1шт.

11

87346286

HOSE

1943mm (76-1/2 in)

1шт.

Arctic QUADTRAC Tractor Application

1шт.

12

437378A1

HOSE ASSY.,6.35mm ID x 1924mm L

1924mm (76 in), Serial Range: -JEE0106701

1шт.

12

87306549

HOSE ASSY.

1956mm (77 in), Start Serial: JEE0106701

1шт.

12

444422A1S

HOSE ASSY.

1816mm (71-1/2 in)

1шт.

Arctic QUADTRAC Tractor Application

1шт.

13

366721A1

HOSE ASSY.

1200 mm (47-1/4 in), Serial Range: -JEE0106701

1шт.

13

87306651

HOSE ASSY.,9.53mm ID x 1200mm L

850 mm ( 33-15/32 in), Start Serial: JEE0106701

1шт.

13

437276A1S

HOSE ASSY.

1700 mm (67 in)

1шт.

Arctic QUADTRAC Tractor Application

1шт.

14

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

M8 fc sl x 14 orb, Inc. 15, 16

1шт.

15

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

16

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

17

366720A1

HOSE ASSY.,9.53mm ID x 900mm L

900 mm (35 in), Serial Range: -JEE0106701

1шт.

17

87306551

HOSE ASSY.

850 mm (33-15/32 in), Start Serial: JEE0106701

1шт.

17

87346267

HOSE

900 mm (35-7/16 in)

1шт.

Arctic QUADTRAC Tractor Application

1шт.

18

700-378

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

M14 orb x 8 fc sl, Inc. 19, 20

1шт.

19

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

20

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

21

314270A1

CHECK VALVE

M10 fc sl x 18 orb, Inc. 22, 23

4шт.

22

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

4шт.

23

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

4шт.

24

325647A2

COUPLING

M18, Diagnostic - Inc. items 29 & 30

4шт.

25

87450401

BRACKET, SUPPORTING

Tension Hose

4шт.

26

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.

27

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

4шт.

28

701-329

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS

M6 fc sl x swl, Inc. 12

1шт.

29

86502604

DUST CAP

Not Shown

1шт.

30

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

Not Shown

1шт.
