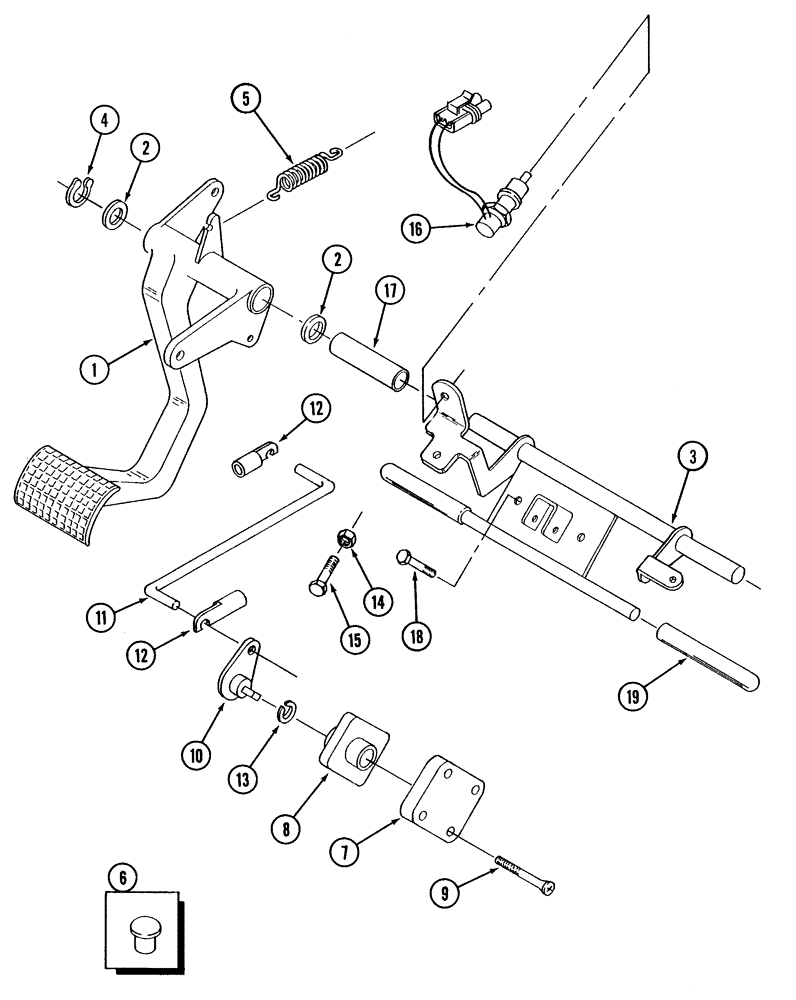

Запчасти Case IH STX375 (06-01) - CLUTCH PEDAL, POWER SHIFT TRANSMISSION (06) - POWER TRAIN

1

222462A2

PEDAL

1шт.

2

281093A1

WASHER,Flat, 26.5mm x 38.1mm x 2mm

2шт.

3

370247A3

SUPPORT

1шт.

4

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

1шт.

5

278210A1

SPRING,Extension, 38.1mm OD x 114.3mm L

1шт.

6

353-422

PLUG,Dome, 1.250" hole, Nylon

1шт.

7

283659A1

SENSOR

Clutch Position

1шт.

8

305155A2

BUSHING

1шт.

9

840-1530

SCREW,Pan, M5 x 30mm, Cl 4.8

2шт.

10

322409A1

PIN

1шт.

11

222463A2

LINK

1шт.

12

60-2404T1

RETAINER

2шт.

13

800-1110

SNAP RING,M10, Ext

1шт.

14

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

15

614-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8, Full Thd

1шт.

16

355341A1

SWITCH

Plunger

1шт.

17

281893A1

BEARING

1шт.

18

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

19

321961A1

MOLDING

2шт.
