Запчасти Case IH STX375 (05-11) - ACCUGUIDE - MANIFOLD / STEERING VALVE & MOUNTING (05) - STEERING

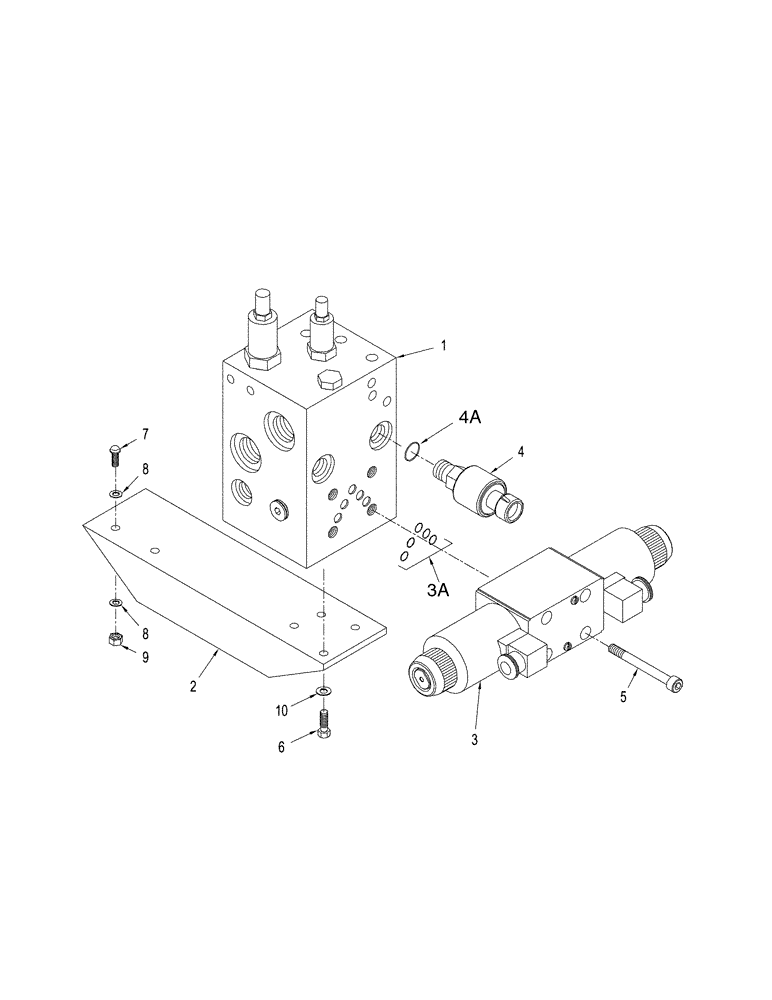

Схема запчастей Case IH STX375 - (05-11) - ACCUGUIDE - MANIFOLD / STEERING VALVE & MOUNTING (05) - STEERING
10
5
1
3
7
9
3a
4a
2
4
8
6
8

Артикул

Название

Примечание

Количество

1

87429542

MANIFOLD

Valve

1шт.

2

87429555

BRACKET

Mounting

1шт.

3

87429544

VALVE

Steering Guidance

1шт.

3a

87298240

O-RING KIT

(Set of 10)

1шт.

4

87428328

PRESSURE SWITCH

Pressure, 3000 psi

1шт.

4a

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

O-Ring ID .351/.072" thick/70 Duro

1шт.

5

864-6040

HEX SOC SCREW,M6 x 40mm, Cl 8.8

4шт.

6

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

Flg, M8 x 25, CL4.8

4шт.

7

811-10025

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 25mm, Cl 8.8

2шт.

8

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

9

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

10

892-11010

LOCK WASHER,M10

4шт.

Выбрано товаров: 12
