Запчасти Case IH STX375 (05-10) - ACCUGUIDE - CYLINDER ASSY., ARTICULATION W/ SENSOR (05) - STEERING

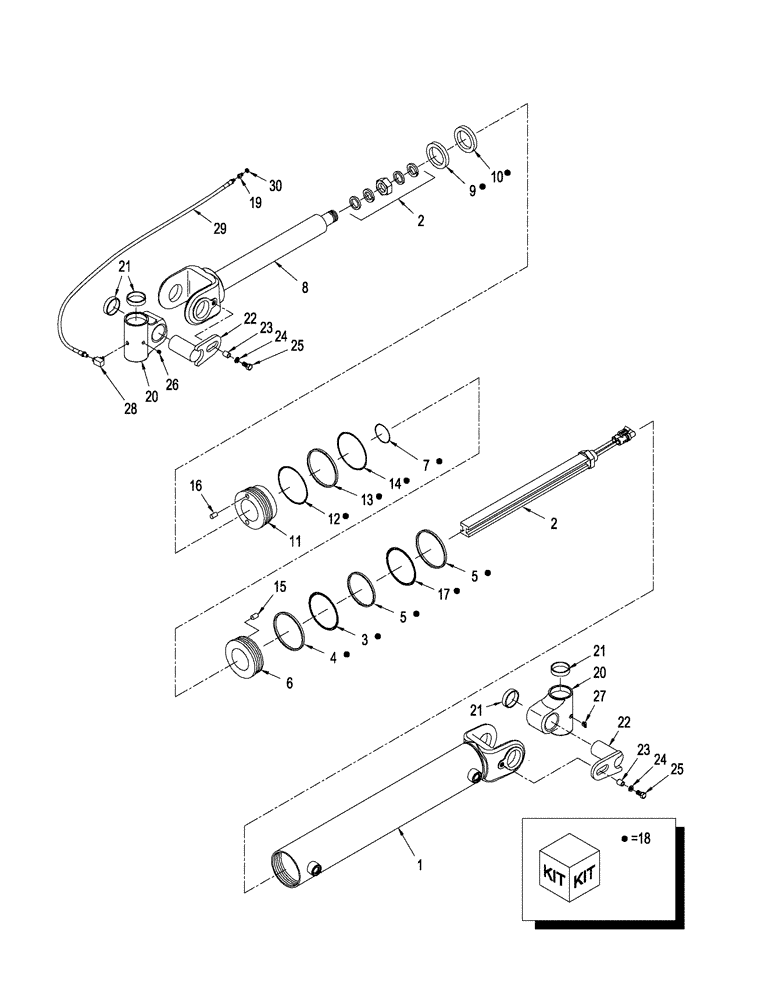

Схема запчастей Case IH STX375 - (05-10) - ACCUGUIDE - CYLINDER ASSY., ARTICULATION W/ SENSOR (05) - STEERING
28
18
7
18
12
18
1
2
8
18
18
19
20
22
30
21
25
25
21
3
13
18
1
18
5
18
5
23
21
18
18
10
20
25
6
11
26
29
2
24
14
16
18
22
27
17
23
9
15
4

Артикул

Название

Примечание

Количество

87429557

CYLINDER,Double Acting, 50.8mm Rod, 548.99mm Stroke

Articulation, with Sensor, Inc. 1 - 18

1шт.

1

87436214

CASE ASSY.

Barrel

1шт.

2

87407429

SENSOR

1шт.

3

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

4

NSS

NOT SOLD SEPARAT

Seal, Piston

1шт.

5

NSS

NOT SOLD SEPARAT

Ring, Wear

2шт.

6

87436215

PISTON

1шт.

7

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

8

87436213

SHAFT ASSY.

1шт.

9

NSS

NOT SOLD SEPARAT

Wiper

1шт.

10

NSS

NOT SOLD SEPARAT

Seal, U-Cup

1шт.

11

387652A1

CYLINDER END CAP

1шт.

12

NSS

NOT SOLD SEPARAT

O-ring

1шт.

13

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

14

NSS

NOT SOLD SEPARAT

O-ring

1шт.

15

445440A1

SET SCREW

1шт.

16

NSS

NOT SOLD SEPARAT

Screw, Set

1шт.

17

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

18

87436443

SEAL KIT

Inc. 3 - 5, 7, 9, 10, 12 - 14

1шт.

19

219-20

LUBE NIPPLE,1/4" - 28

1шт.

20

409685A1

JOINT

Knuckle

2шт.

21

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

Wiper Rod

8шт.

22

70-6013T2

PIN

2шт.

23

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

2шт.

24

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

25

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

2шт.

26

217-429

PLUG,Hex Soc, 1/8" - 27 NPTF

2шт.

27

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

1шт.

28

217-1014

ELBOW,1/8" - 27 Female x 1/8" - 27 Male

1шт.

29

1339090C1

HOSE

1шт.

30

F53473

LOCK NUT,1/8-27 NPSM

1шт.

Выбрано товаров: 31
