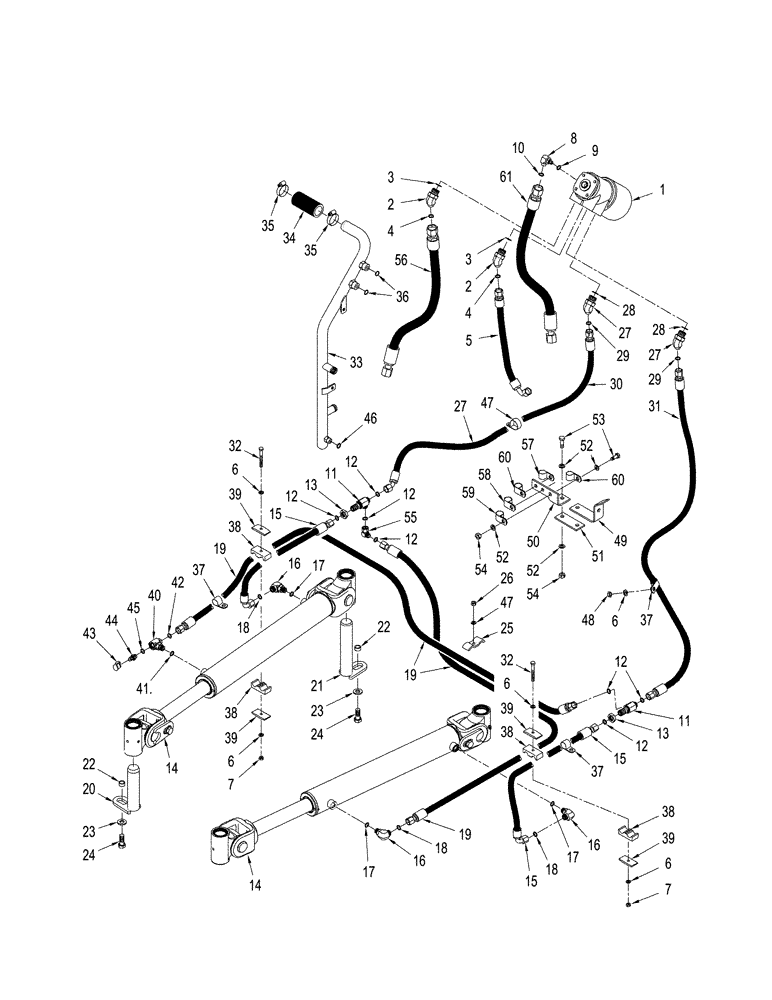

Запчасти Case IH STX375 (05-01) - HYDRAULICS - STEERING (05) - STEERING

1

373374A2

VALVE, CONTROL

Steering, See Figure 05-03

1шт.

1

373374A2R

REMAN-STEERING VALVE

Reman For New P/N 373374A2, Steering

1шт.

1

373374A2C

CORE-STEERING VALVE

Return Part Number

1шт.

2

700-387

ELBOW,45 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

M20 fc sl x 2,7 orb, Inc. 3, 4

2шт.

3

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

3шт.

4

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

3шт.

5

327494A1

HOSE ASSY.,19.05mm ID x 1240mm L

1240 mm (49 in), Supply from Priority Valve, Serial Range: -JEE0102661

1шт.

5

87415315

HOSE ASSY.,19.05mm ID x 1289mm L

1240 mm (49 in), Supply from Priority Valve, Start Serial: JEE0102661

1шт.

5

87424309

HOSE ASSY.

1240 mm (49 in)

1шт.

Arctic QUADTRAC Tractor Application

1шт.

6

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

7

832-10408

NUT,M8 x 1.25, Cl 8.8

9шт.

8

700-311

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M12 x 1.5 Male ORB

11/16 fc sl x 12 Or, Inc. 9, 10

1шт.

9

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

10

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

11

701-423

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

M12 fc sl x blkhd fc sl, Inc. 12

2шт.

12

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

4шт.

13

701-903

NUT,13/16" - 16

2шт.

14

339832A1

CYLINDER

Articulation, See Figure 05-02, Serial Range: -JEE0106701

2шт.

14

406999A1

STEERING CYLINDER

Articulation, See Figure 05-02, Start Serial: JEE0106401

2шт.

15

367244A1

HOSE,12.7mm ID x 550mm L

550 mm (21-1/2 in)

2шт.

15

437278A1S

HOSE ASSY.

525 mm (20-1/2 in)

1шт.

Arctic QUADTRAC Tractor Application

1шт.

16

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 17, 18

3шт.

17

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

3шт.

18

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

19

367243A1

HOSE ASSY.

1500 mm (59 in)

2шт.

19

437277A1S

HOSE ASSY.

1605 mm (63 in)

1шт.

Arctic QUADTRAC Tractor Application

1шт.

20

70-6076T3

PIN

1-3/4 x 7-1/4

2шт.

21

70-6085T2

PIN

1-3/4 x 9-1/4

2шт.

22

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

4шт.

23

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

4шт.

24

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

4шт.

25

242563A1

CLAMP

1шт.

26

829-1412

NUT,M12, Cl 10.9

1шт.

27

700-388

ELBOW,45 Degree Elbow, 13/16" - 16 Male ORFS x M27 x 2 Male ORB

M12 fc sl x 27 orb, Inc. 28, 29

2шт.

28

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

2шт.

29

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

30

327460A2

HOSE ASSY.

2285 mm (90 in), Left-Hand Cylinder

1шт.

30

437256A1S

HOSE ASSY.

2197 mm (86-1/2 in)

1шт.

Arctic QUADTRAC Tractor Application

1шт.

31

418811A1

HOSE ASSY.

2698 mm (106 in), Right-Hand Cylinder, Serial Range: -JEE0104001

1шт.

31

87415314

HOSE ASSY.

2648 mm (104-1/4 in), Right-Hand Cylinder, Start Serial: JEE0104001

1шт.

31

87424310

HOSE ASSY.

2648 mm (104-1/4 in)

1шт.

Arctic QUADTRAC Tractor Application

1шт.

32

827-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 10.9

2шт.

33

409612A2

TUBE

Return

1шт.

34

1-4571

HOSE

114 mm (4-1/2 in)

1шт.

35

214-1436

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

36

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

37

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

P-type

6шт.

38

50-2551T1

CLAMP

4шт.

39

50-2533T1

PLATE

4шт.

40

364967A1

TEE,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB x M14 x 1.5 Female ORB

M18 orb, Inc. 41, 42

1шт.

41

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

42

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

178889A1

DIAGNOSTIC COUPLER

Diagnostic, Inc. 43 - 45

1шт.

43

H434163

DUST CAP

1шт.

44

NSS

NOT SOLD SEPARAT

Fitting

1шт.

45

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

46

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

47

892-11012

LOCK WASHER,M12

1шт.

48

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

49

394446A1

PLATE

, Start Serial: JEE0102661

1шт.

50

86990421

BRACKET, SUPPORTING

, Start Serial: JEE0102661

1шт.

51

L50641

CONNECTING STRIP

, Start Serial: JEE0102661

1шт.

52

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

10шт.

53

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

5шт.

54

832-10406

NUT,M6 x 1, Cl 8

5шт.

55

701-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl. 12

1шт.

56

383586A1

HOSE ASSY.

Steering, Return, To Piston Pump, Serial Range: -JEE0102661

1шт.

56

87418149

HOSE ASSY.

Steering, Load Sense, 1416 mm (55-3/4 in), Start Serial: JEE0102661

1шт.

56

87424323

HOSE ASSY.

Steering, Load Sense, 1416 mm (55-3/4 in)

1шт.

Arctic QUADTRAC Tractor Application

1шт.

57

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

1шт.

58

515-23286

CLAMP,1-1/8", Insul, 3/8" Bolt

1шт.

59

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

1шт.

60

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

1шт.

61

327459A1

HOSE ASSY.

1350 mm (53 in)

1шт.

61

87415320

HOSE ASSY.

1350 mm (53 in)

1шт.

Arctic QUADTRAC Tractor Application

1шт.
